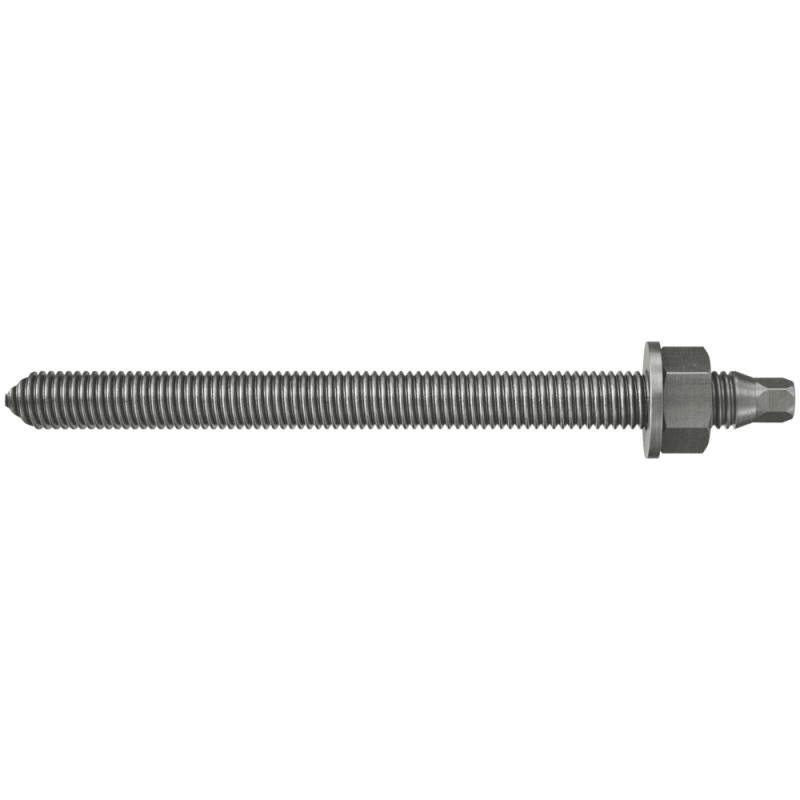

fischer anchor rod RG M 16 x 250 R stainless steel, 050298

Die fischer Ankerstange RG M wird aus nicht rostendem Stahl hergestellt. Die Ankerstange ist ein Systemzubehör für die verschiedene fischer Mörtelpatronen oder Injektionsmörtel. Für Einzelbefestigunge

more details
Meesenburg Article Number:
Manufacturer item no.: 050298
EAN: 4006209502983
Verkaufseinheit

Product advantages

The wide range of RG M from M8 to M30 opens up a broad spectrum of applications and thus offers great flexibility.
The variety of approved steel grades for RG M enables use in all corrosion resistance classes and provides the highest possible application security.
Please observe the approvals of the respective reaction cartridges or mortars.
Product properties
Product properties

Description

Die fischer Ankerstange RG M wird aus nicht rostendem Stahl hergestellt. Die Ankerstange ist ein Systemzubehör für die verschiedene fischer Mörtelpatronen oder Injektionsmörtel. Für Einzelbefestigungen ist die Anwendung mit der vorportionierten Mörtelpatrone besonders wirtschaftlich. Bei der Montage mit der Mörtelpatrone wird die fischer Ankerstange RG M mit einem Bohrhammer drehend-schlagend gesetzt. Beim Setzvorgang wird die Mörtelpatrone zerstört, durchmischt und aktiviert die Mörtelmasse. Bei der Montage mit den Injektionsmörteln wird die Ankerstange von Hand unter leichten Drehbewegungen in das Bohrloch geschoben. Das System ist besonders geeignet für die wirtschaftliche Befestigung von Maschinen, Stahlbaukonstruktionen und Stützfüßen im Außenbereich.
Product properties
surface
blank
Material
Approval
Anchorage base
Weight
3648 g
Brand
fischerwerke_gmbh_co_kg
technical data
Drilling diameter: 18 [mm] ETA approval: Yes Thread size (metric): 16 [mm] Application conditions: Fire protection classification Application conditions: Mainly static loads Application conditions: Outdoor area Material: Stainless steel Packaging variant: Folding box Thread: M16 Nut height: 12.8 [mm] Washer height: 3 [mm] Length: 250 [mm] Max. thickness of the attachment component: 93 [mm] Min. anchoring depth: 125 [mm] With mortar cartridge: No Suitable cartridge RSB: 95 / 125 / 190 Hexagon size: 12 [mm] Spanner size: 24 [mm] Projection: 9 [mm]
