Product advantages

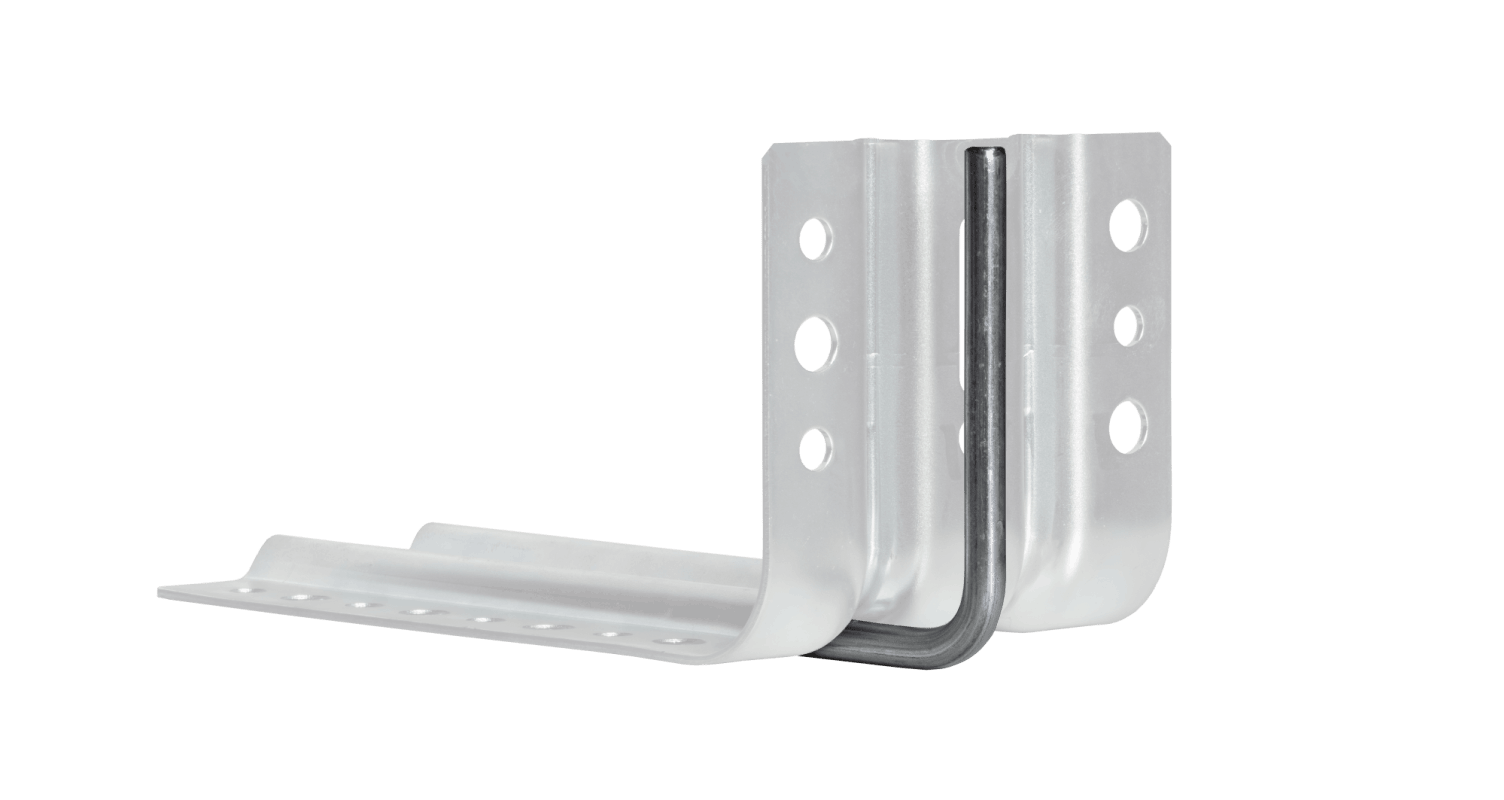

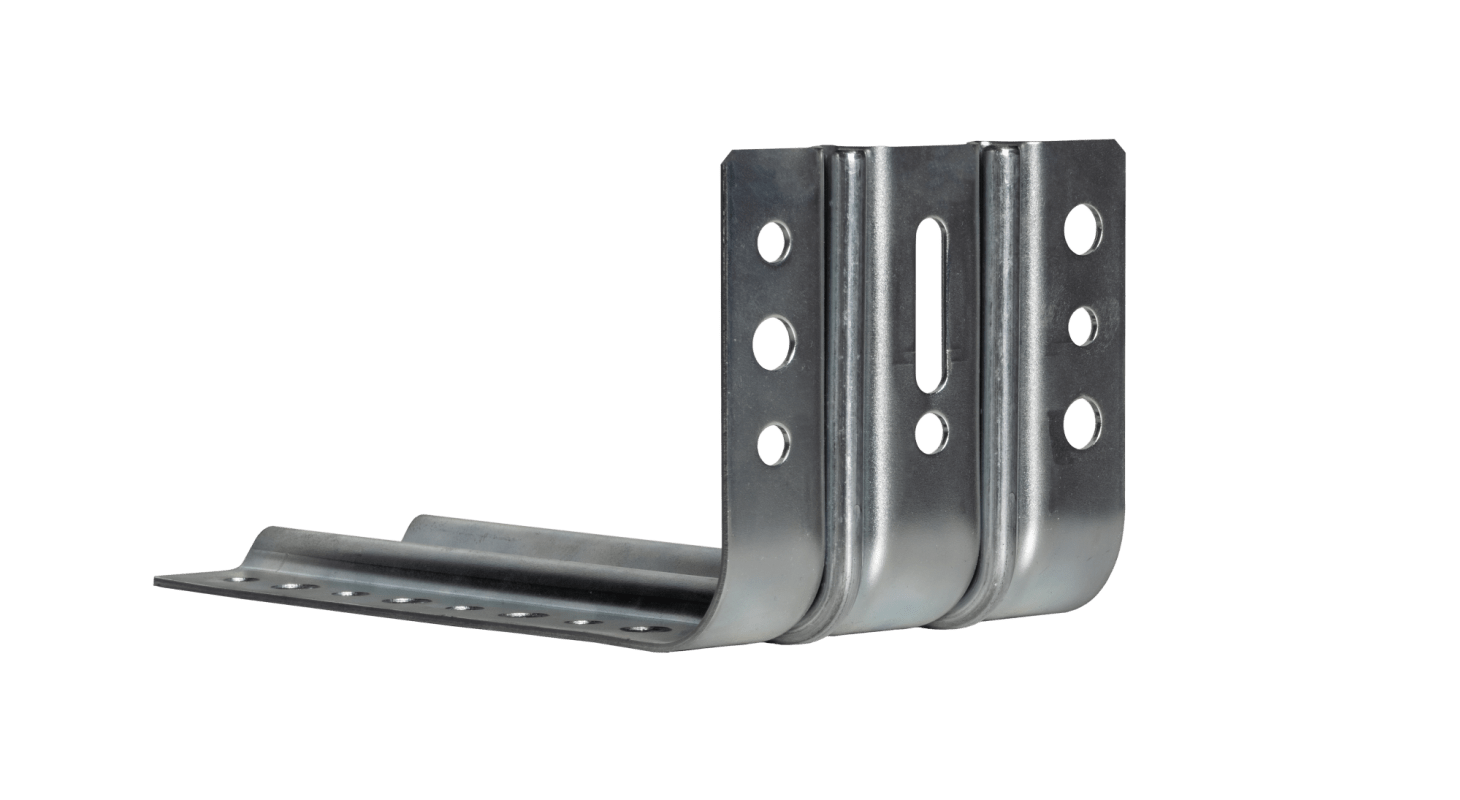

Easy installation simply by inserting into the grooves of the blue-yellow mounting bracket.

No additional screwing of the blaugelb Statik Plus required.

Equally applicable in case of wind suction and wind pressure.

Simple and secure attachment of the blue-yellow base insulation profile to the building structure.

High corrosion protection

Product properties

Description

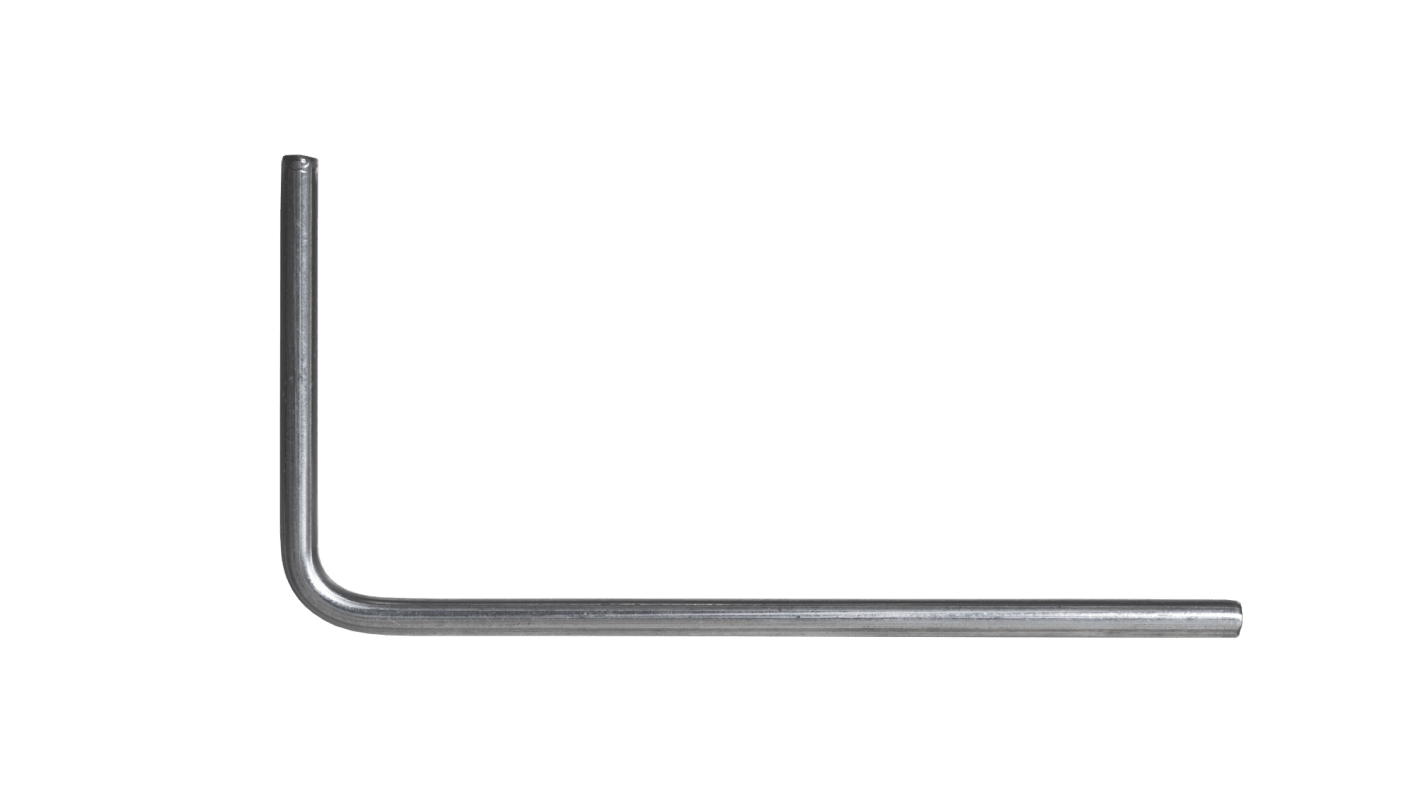

The blaugelb Statik Plus can be used for very high horizontal static requirements due to wind loads and/or for safety-relevant fastening for fall protection or burglary resistance starting from a height of 200 mm. By using the blaugelb Statik Plus, the deformation resistance of the blaugelb mounting angle is increased, thus acting as a statically effective reinforcement.

From a base insulation profile height of 250 mm, we recommend using the blaugelb Statik Plus during installation due to the high eccentricity of the forces to be calculated.

Note: The blaugelb Statik Plus can be used with blaugelb mounting angles 200 x 100 mm (Art.-No.: 9069055) and 240 x 100 mm (Art.-No.: 9069056).

Tested properties:

Test basis:
ETB guideline "Components that secure against falls"; version 1985-06

DIN EN 1991-1-1/NA Eurocode 1:
Actions on structures – Part 1-1: General actions on structures – Loads, dead weight and live loads in building construction

Ensemble test SDP PVC TK – KS windows - connection to the anchoring ground
    - Ensemble test blaugelb base insulation profile PVC/TK –
      plastic windows – connection to the anchoring ground
    - Ensemble test blaugelb base insulation profile EPS –
      aluminium windows – connection to the anchoring ground
    - Ensemble test blaugelb base insulation profile EPS –
      wooden windows – connection to the anchoring ground

Surface protection

electrogalvanised

Material

wide

100 mm

Length

200 mm

Brand

blaugelb

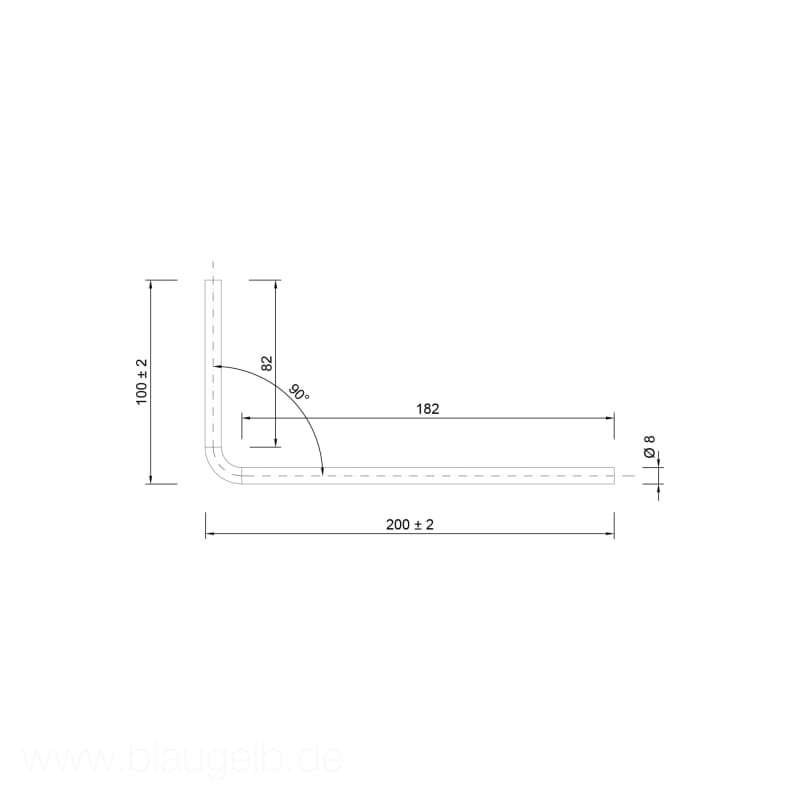

technical data

Material:	Steel
Oberfläche:	galvanised
Materialstärke:	8 mm
Länge Schenkel 1:	100 mm
Länge Schenkel 2:	200 mm
Verpackungseinheit:	50 pieces

Product features

simple assembly only by inserting into the grooves of the blaugelb mounting angle
no additional screwing of the blaugelb Statik Plus necessary
no disturbing struts on the angle, allowing for easy connection of subsequent trades to the window construction
equally applicable for suction and wind pressure
simple and secure fastening of the blaugelb base insulation profile to the building structure
high corrosion protection
