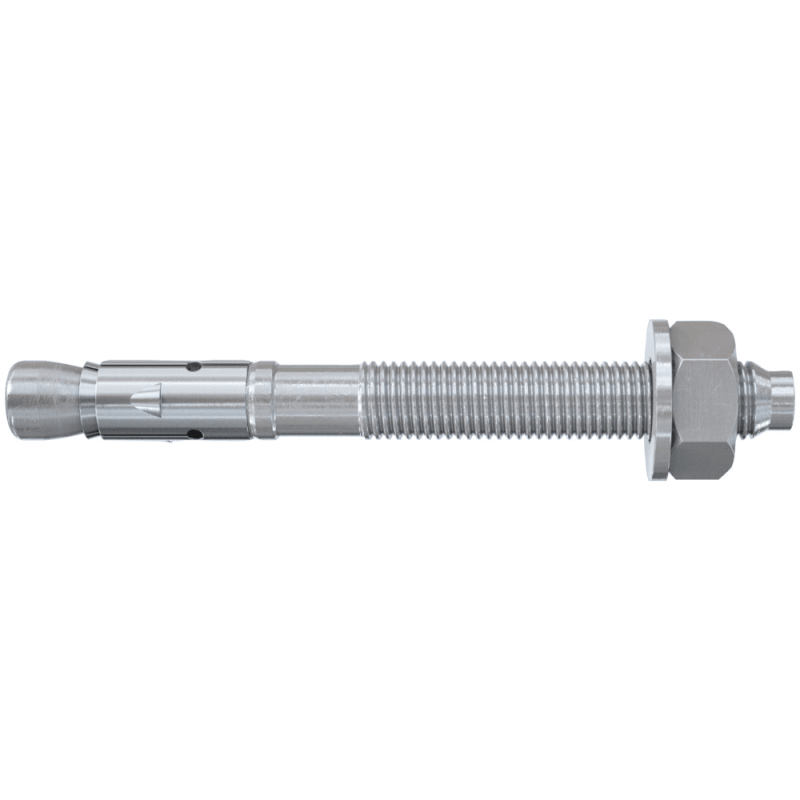

fischer Bolt Anchor FBZ 10/10, 543401

Der fischer Bolzenanker FBZ ist der wirtschaftliche Stahlanker für gerissenen Beton. Mit dem FBZ werden die einwirkenden Lasten sicher in den Untergrund eingeleitet. Ideal ist der Stahlanker beispiels

more details

Meesenburg Article Number:

Manufacturer item no.: 543401

EAN: 4048962305500

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

Safe operation and easy installation.

Two anchorage depths for more flexibility in application.

The use of core drills and diamond drill bits is regulated in the European Technical Assessment ETA.

Product properties

Description

Surface protection

electrogalvanised

Material

Approval

Anchorage base

Brand

fischerwerke_gmbh_co_kg

technical data

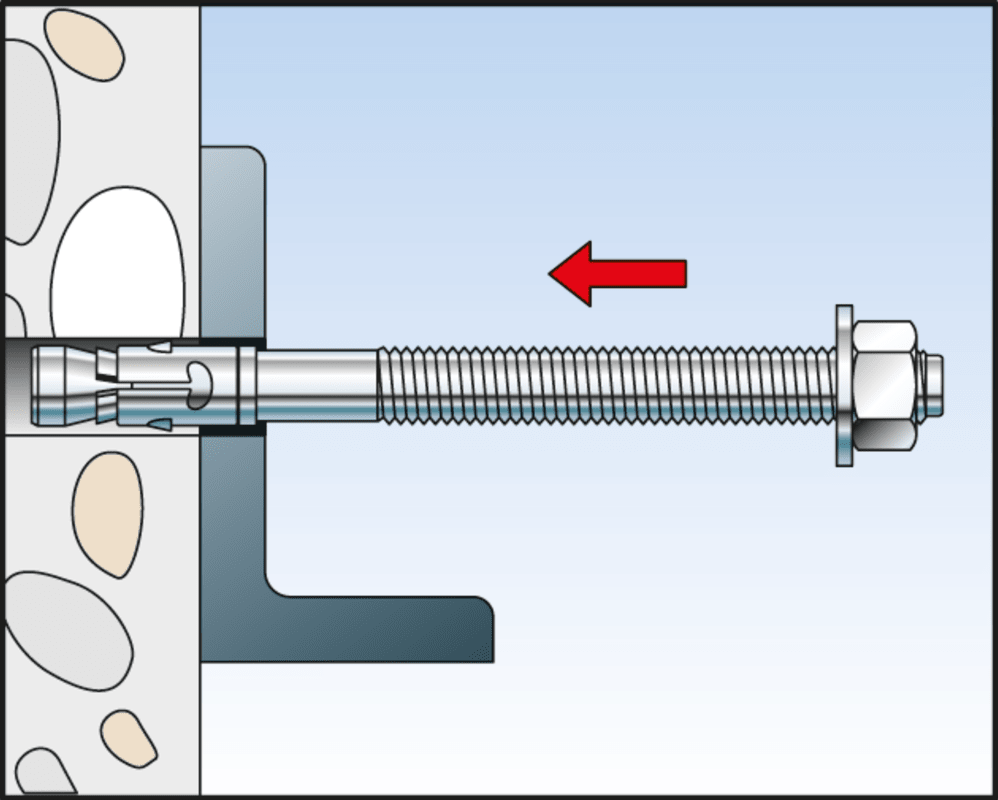

Anchor length: 95 [mm] Drill hole diameter: 10 [mm] Mounting distance: No Through-bolt installation: Yes Pre-positioned installation: Yes Thread size (metric): 10 [mm] Material: galvanized steel Thread: M10 x 53 [mm] Thread: M10 Max. effective anchorage depth: 10 / 30 [mm] Min. drill hole depth for through-bolt installation: 87 [mm] Washer (outer diameter x thickness): 20 x 2 [mm] Reduced anchorage depth: 40 [mm] Standard anchorage depth: 60 [mm] Effective anchorage depth max/min: 60 / 40 [mm]
