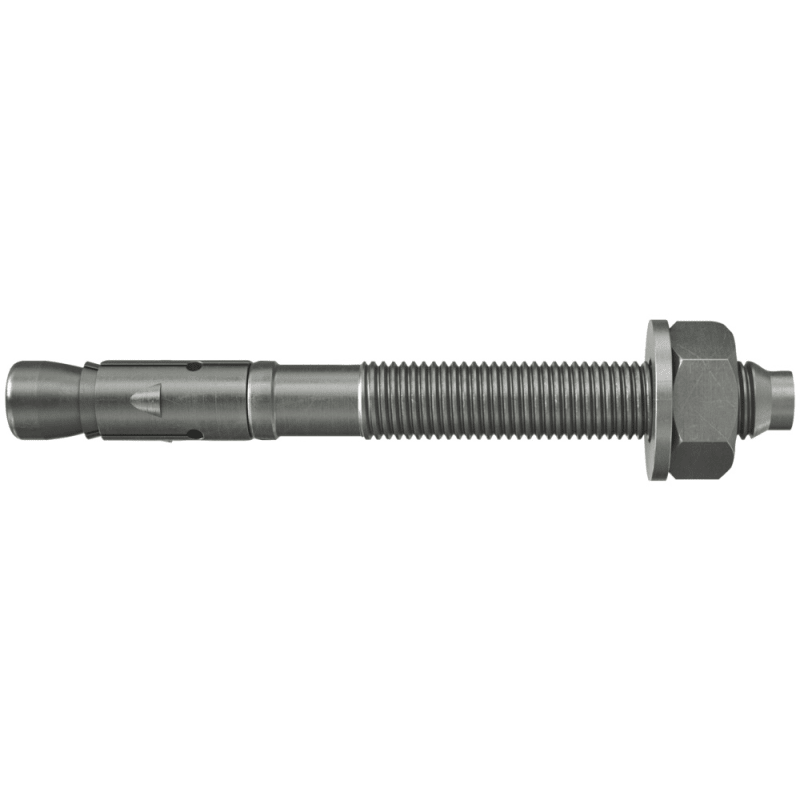

fischer Bolt Anchor FBZ 10/30 R stainless steel, 543963

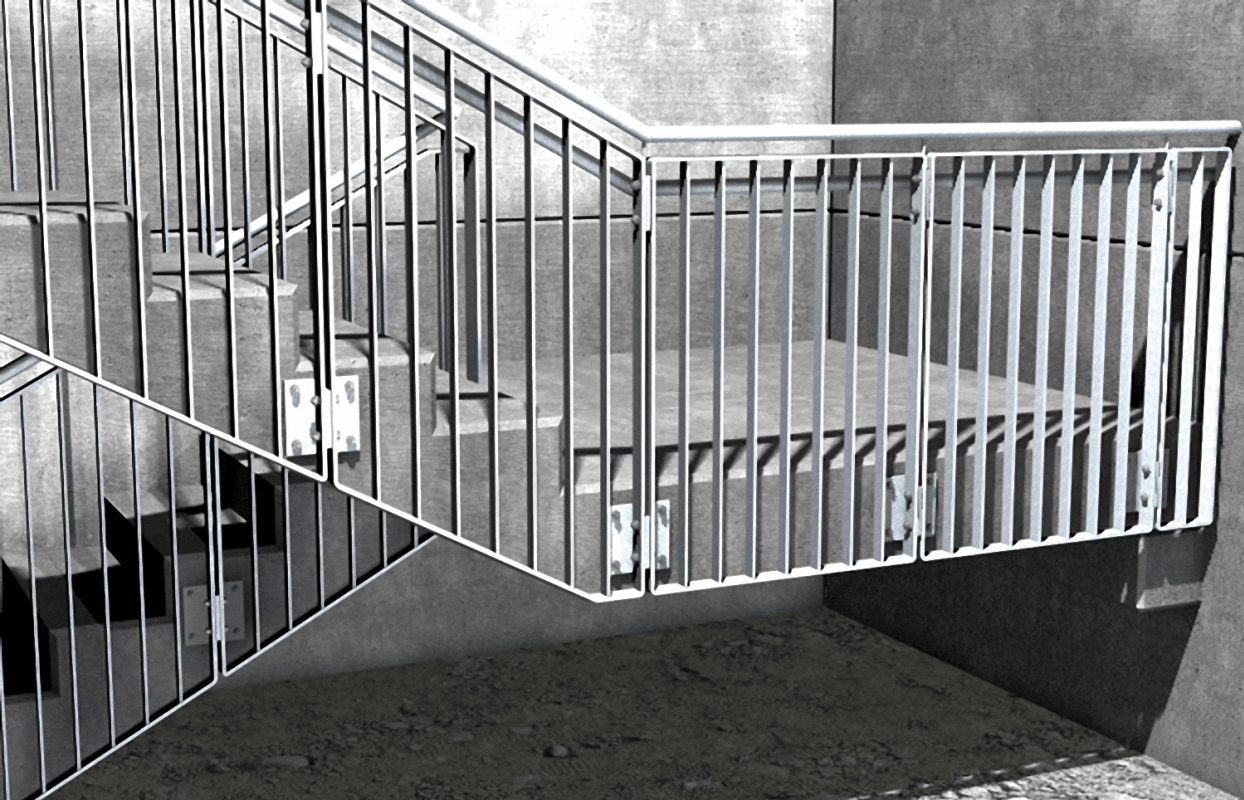

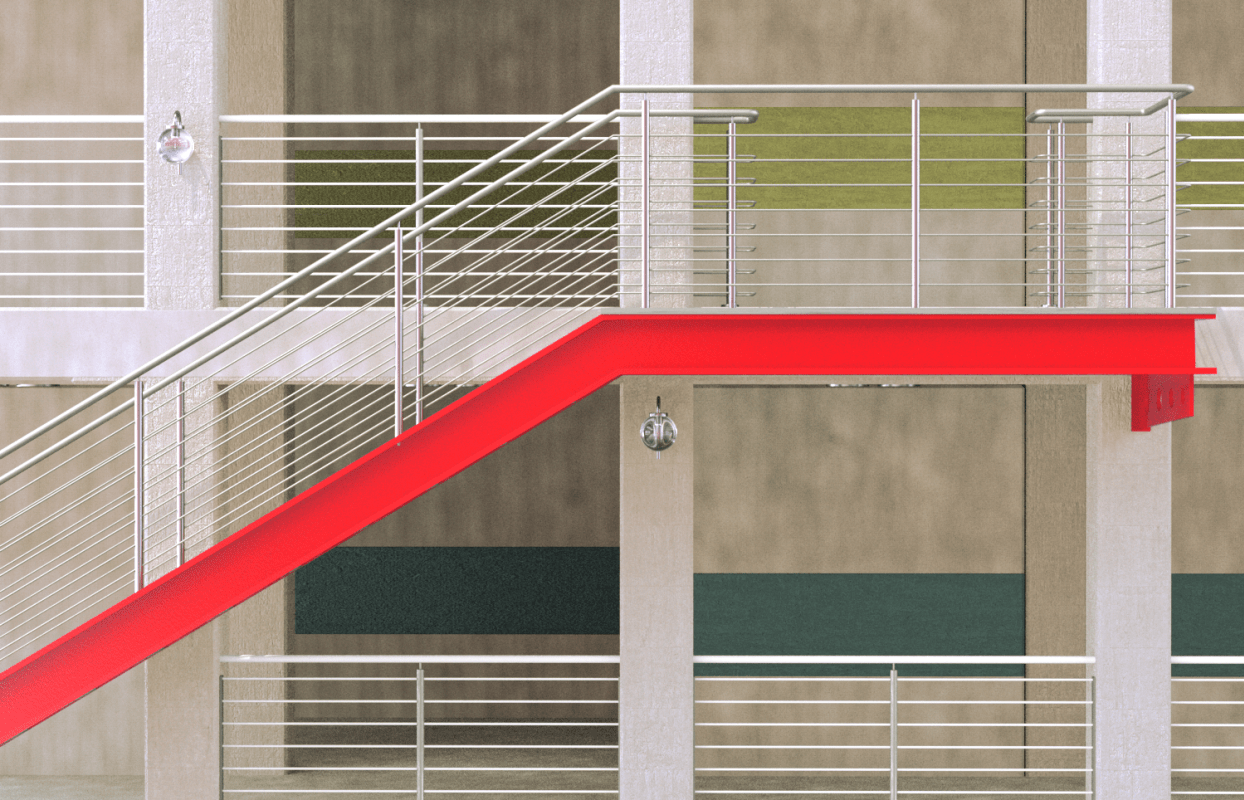

Der fischer Bolzenanker FBZ ist der wirtschaftliche Stahlanker für gerissenen Beton. Mit dem FBZ werden die einwirkenden Lasten sicher in den Untergrund eingeleitet. Ideal ist der Stahlanker beispiels

more details

Meesenburg Article Number:

Manufacturer item no.: 543963

EAN: 4048962310856

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

Safe operation and easy installation.

Two anchoring depths for more flexibility in application.

The use of core drills and diamond core bits is regulated in the European Technical Assessment ETA.

Product properties

Description

Material

Approval

Anchorage base

Brand

fischerwerke_gmbh_co_kg

technical data

Anchor length: 115 [mm] Drill hole diameter: 10 [mm] Mounting distance: No Through-bolt mounting: Yes Pre-positioned installation: Yes Thread size (metric): 10 [mm] Material: Stainless steel Thread: M10 x 73 [mm] Thread: M10 Max. effective embedment depth/hef,min.: 30 / 50 [mm] Min. drilling depth for through-bolt mounting: 107 [mm] Washer (outer diameter x thickness): 20 x 2 [mm] Reduced anchorage depth: 40 [mm] Standard anchorage depth: 60 [mm] Effective anchorage depth hef,max/hef,min: 60 / 40 [mm]
