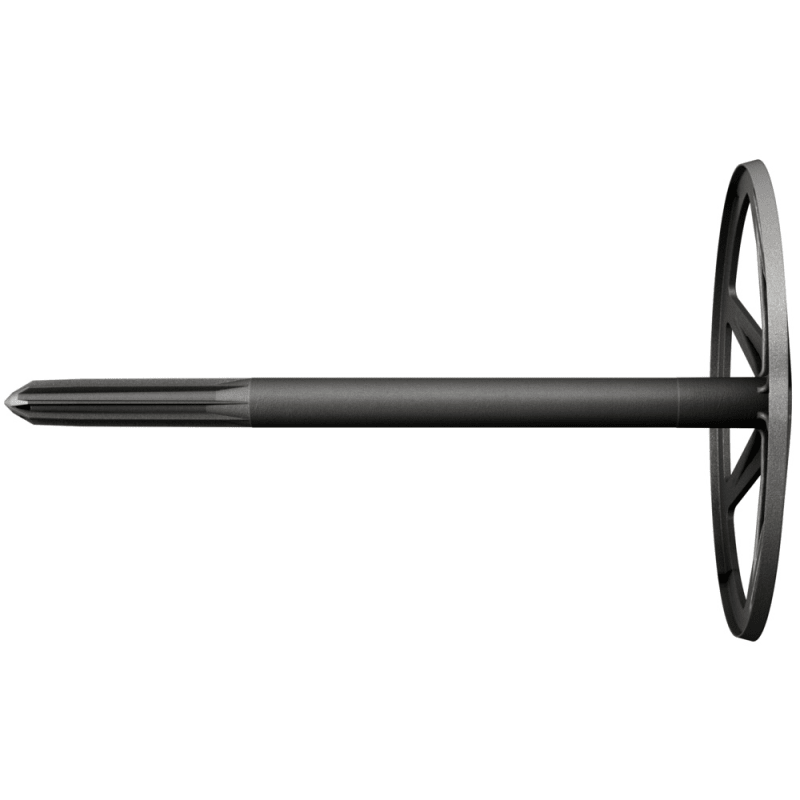

Fischer insulation support DHK 180, 512151

Der fischer Dämmstoffhalter DHK ist der wirtschaftliche Kunststoff-Dämmstoffhalter für Dämmplatten mit geringer Druckfestigkeit. Der DHK wird in der Durchsteckmontage mit dem Hammer eingeschlagen. Bei

more details
Meesenburg Article Number:
Manufacturer item no.: 512151
EAN: 4048962112627
Verkaufseinheit

Product advantages

The optimized geometry of the expansion range ensures a low anchoring depth and reduces the drilling effort.
Flexible bridges in the plate area adapt to the insulation material and ensure permanent contact pressure.
The simple impact installation allows for a quick setting process, thus reducing the amount of work.
Product properties
Product properties

Description

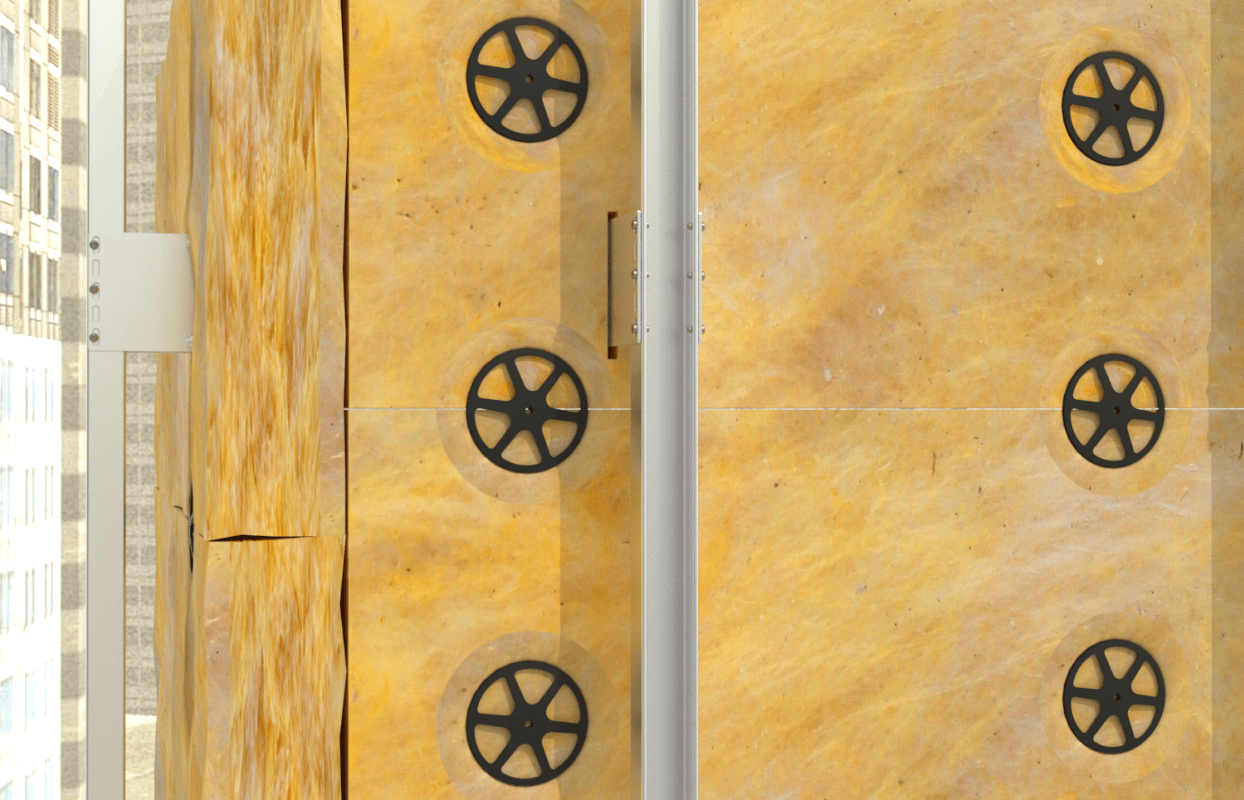

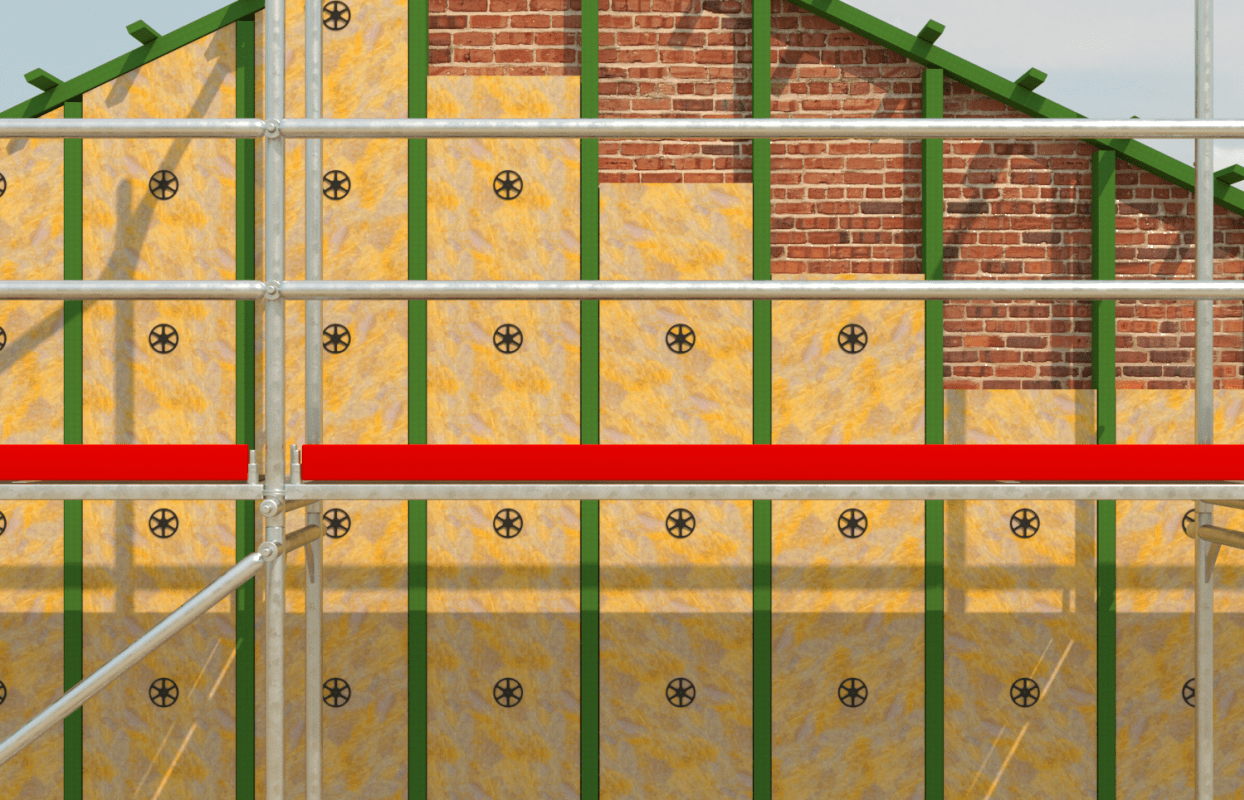

Der fischer Dämmstoffhalter DHK ist der wirtschaftliche Kunststoff-Dämmstoffhalter für Dämmplatten mit geringer Druckfestigkeit. Der DHK wird in der Durchsteckmontage mit dem Hammer eingeschlagen. Beim Einschlagen verspannen die Rippen im Bohrloch und der DHK wird optimal angepresst. Der fischer Dämmstoffhalter DHK ist geeignet, um Dämmplatten in Voll- und Lochstein, Beton und Porenbeton zu verankern.
Product properties
Anchorage base
Weight
1794 g
Min. drill hole depth
30 mm
Brand
fischerwerke_gmbh_co_kg
technical data

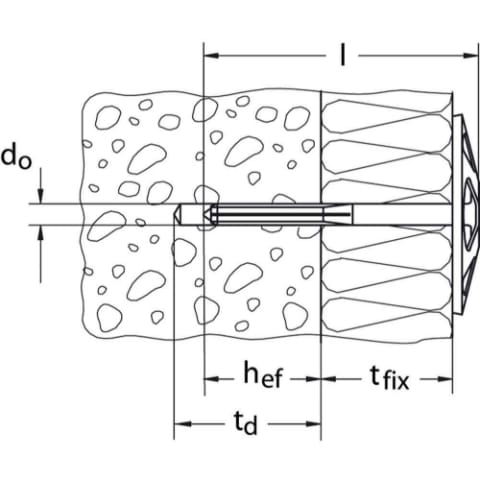

Drill hole diameter: 8 [mm] Dowel length: 205 [mm] Installation type: Impact anchor Packaging variant: Folding box Max. Thickness of the component: 180 [mm] Min. drilling depth: 30 [mm] Min. anchoring depth: 20 [mm]
