Fischer plug M 10, 050510

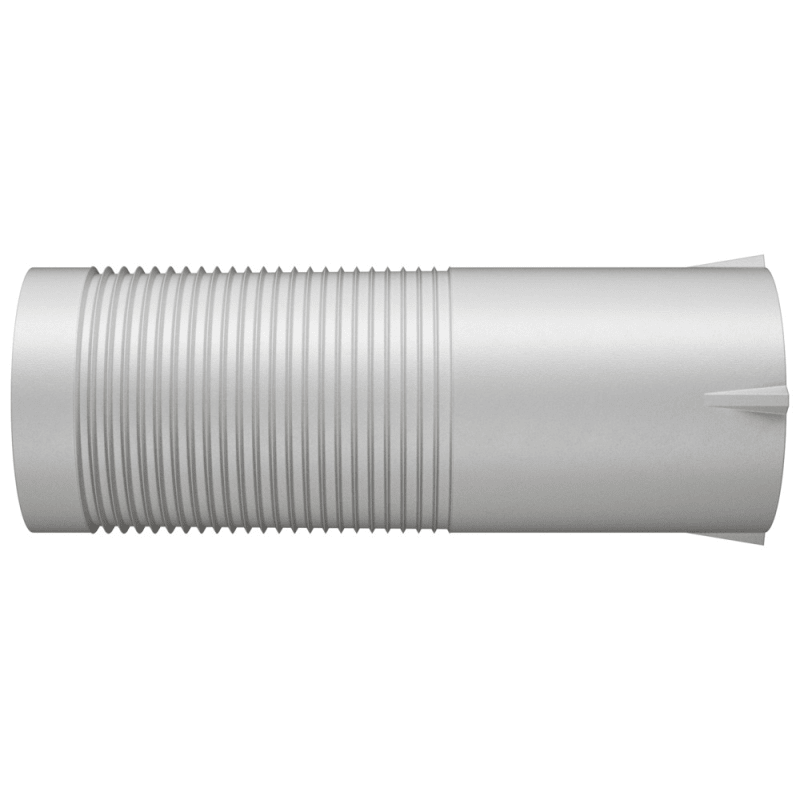

Der fischer Dübel M ist ein Spreizdübel aus hochwertigem Nylon mit einem Messingkonus für die Aufnahme eines metrischen Gewindes. Der Spezialdübel wird in der Vorsteckmontage gesetzt. Beim Eindrehen d

more details
Meesenburg Article Number:
Manufacturer item no.: 050510
EAN: 4006209505106
Verkaufseinheit

Product advantages

The large outer diameter of the dowel achieves a large-area load introduction into the building material. This allows for maximum load-bearing capacity.
The large expansion range of the dowel makes it insensitive to building material tolerances. This ensures easy and secure installation.
The internal thread allows the use of commercially available metric screws or threaded rods and enables flush disassembly and reusability of the fixing point. This achieves a high level of flexibility.
Product properties
Product properties

Description

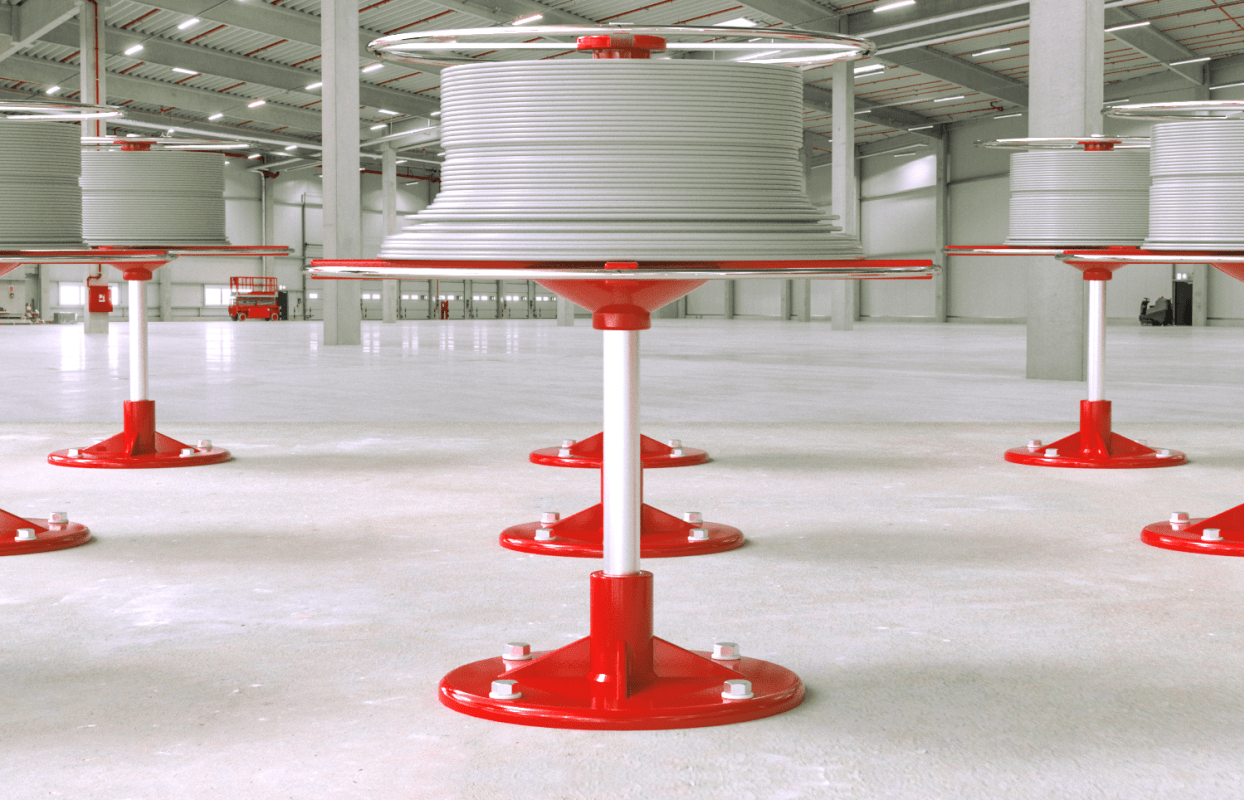

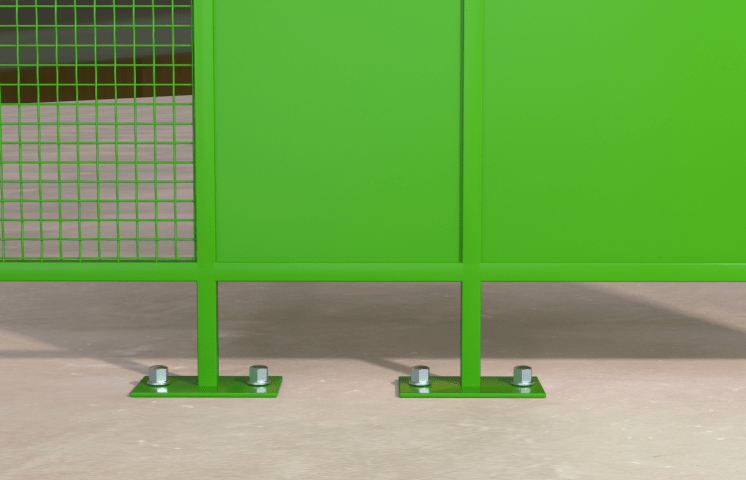

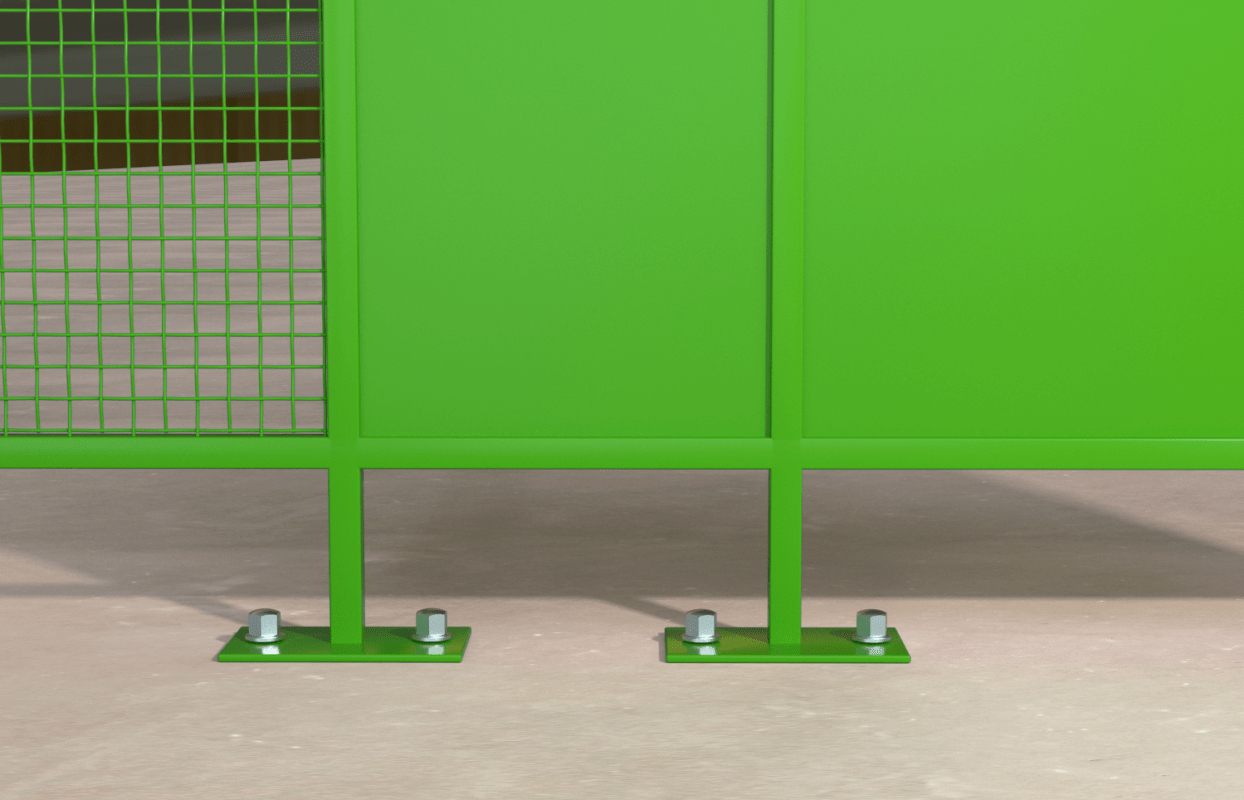

Der fischer Dübel M ist ein Spreizdübel aus hochwertigem Nylon mit einem Messingkonus für die Aufnahme eines metrischen Gewindes. Der Spezialdübel wird in der Vorsteckmontage gesetzt. Beim Eindrehen der Schraube oder der Gewindestange spreizt der innen liegende Messingkonus auf und der Dübel verankert sich gegen die Bohrlochwand. Der fischer Dübel M ist vor allem geeignet für die Befestigung von Maschinen, Schutzgittern und Schaltschränken in Vollbaustoffen.
Product properties
Material
Anchorage base
Weight
278 g
Min. drill hole depth
80 mm
Brand
fischerwerke_gmbh_co_kg
technical data

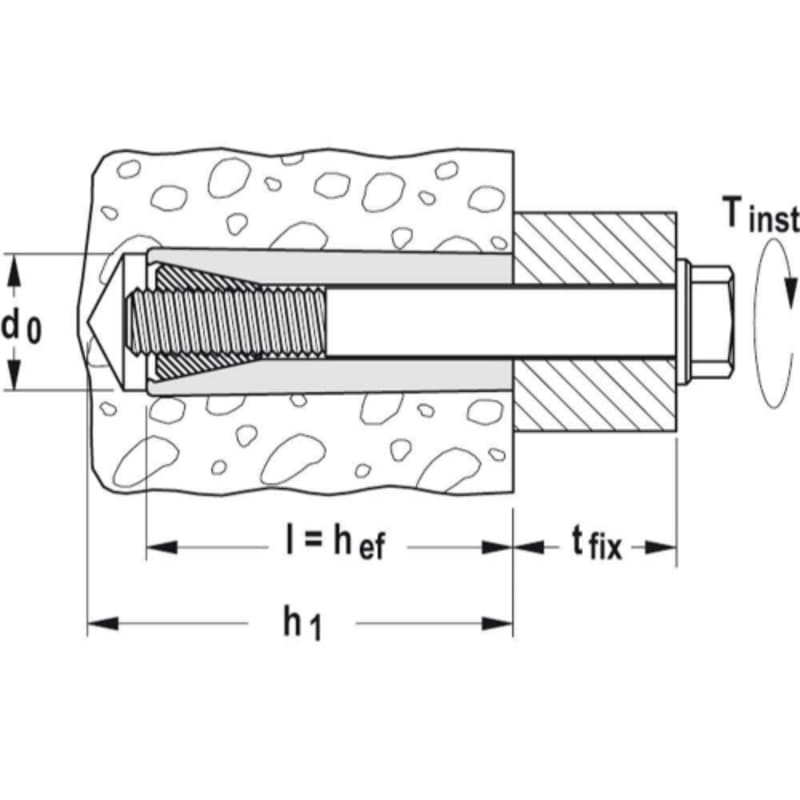

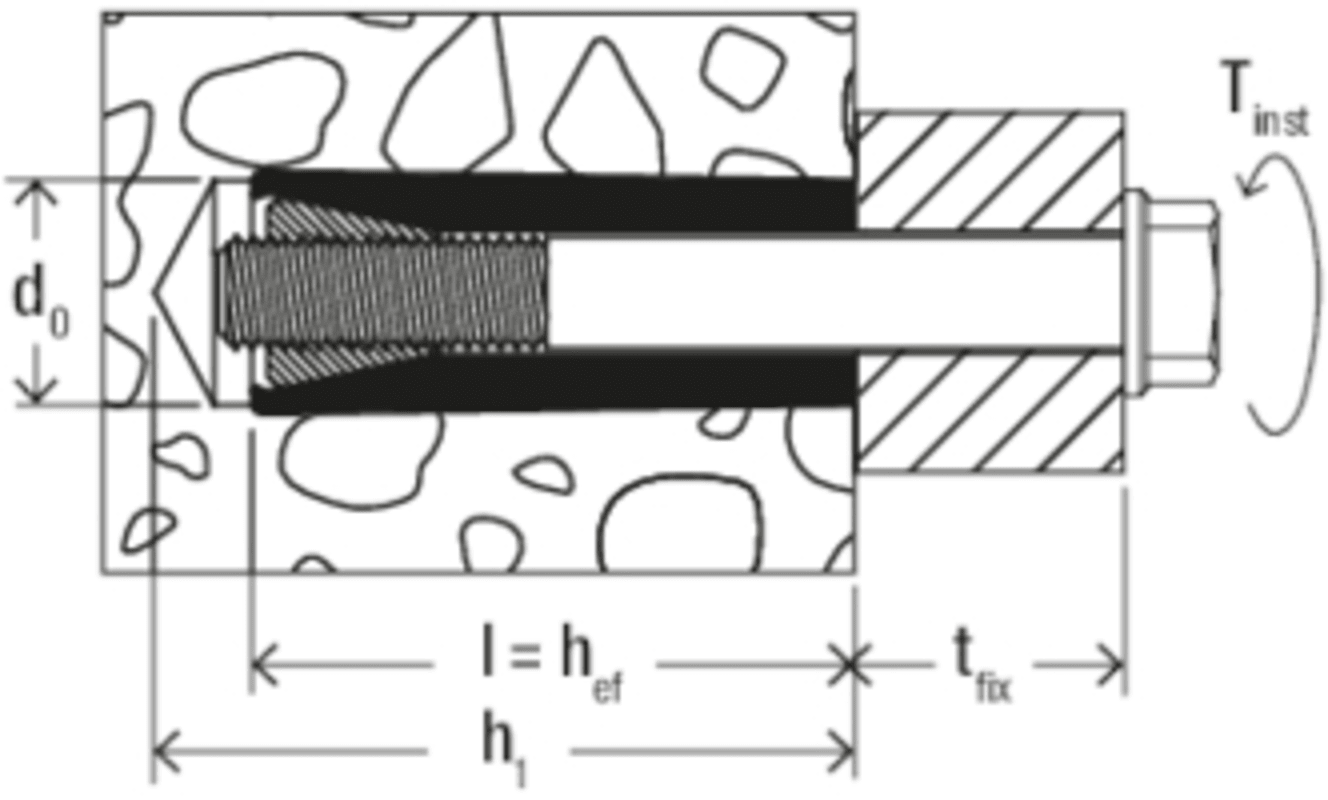

Drilling diameter: 20 [mm] Dowel length: 60 [mm] Colour: grey Design: without screw Packaging variant: folding box Thread: M10 Max. torque when anchoring: 32 [N·m] Min. drilling depth: 80 [mm]
