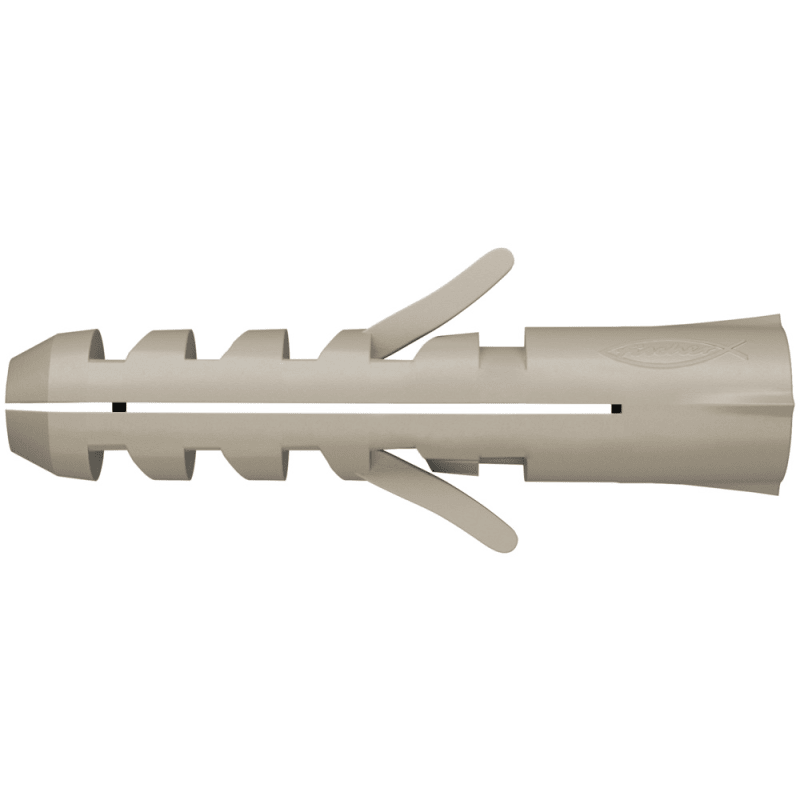

Fischer plug M 12 S, 050155

Der fischer Spreizdübel M-S ist aus hochwertigem Nylon für Schrauben mit einem metrischen Gewinde. Der Spezialdübel kann in der Vorsteck- und der zeitsparenden Durchsteckmontage gesetzt werden. Beim E

more details
Meesenburg Article Number:
Manufacturer item no.: 050155
EAN: 4006209501559
Verkaufseinheit

Product advantages

The interior geometry of the M-S allows the use of commercially available metric screws or threaded rods and enables the ideal adaptation to the application.
The frameless dowel sleeve allows the dowel to be set deeper under the plaster to the load-bearing substrate in order to achieve the maximum load-bearing capacity.
Product properties
Product properties

Description

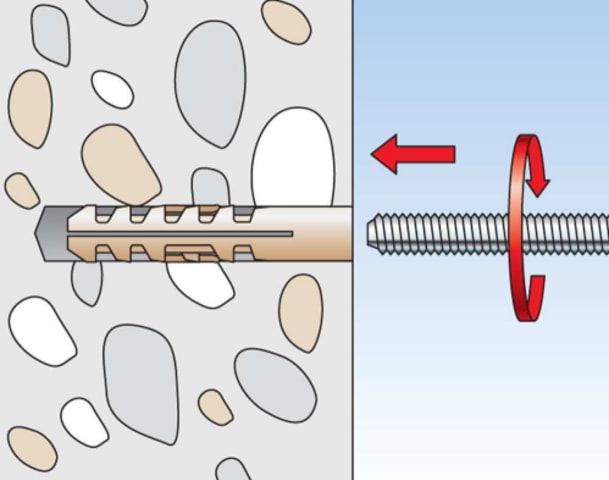

Der fischer Spreizdübel M-S ist aus hochwertigem Nylon für Schrauben mit einem metrischen Gewinde. Der Spezialdübel kann in der Vorsteck- und der zeitsparenden Durchsteckmontage gesetzt werden. Beim Eindrehen der Schraube spreizt der M-S auf und verankert sich im Bohrloch. Der fischer Spreizdübel M-S ist ideal, um Handgriffe, Klappläden oder Regenfallrohre in Beton, Porenbeton, Vollgipsplatten und in allen anderen Voll- und Lochbaustoffen zu befestigen.
Product properties
Weight
91 g
Min. drill hole depth
100 mm
Brand
fischerwerke_gmbh_co_kg
technical data

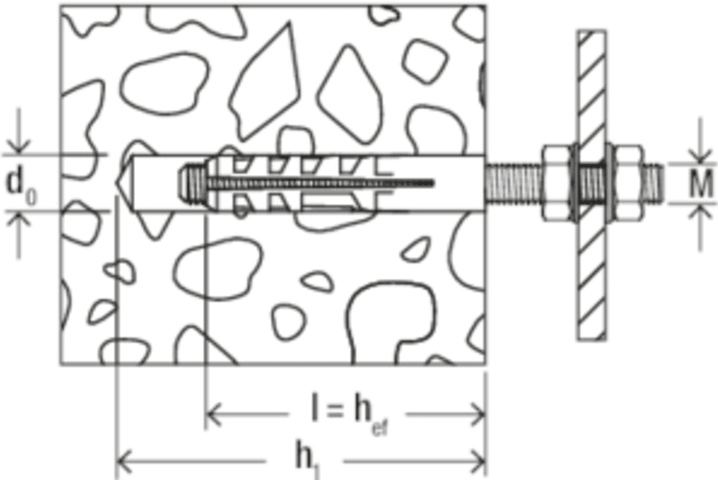

Drill hole diameter: 16 [mm] Dowel length: 80 [mm] Colour: grey Design: with screw Packaging variant: folding box Thread: M12 Min. drilling depth: 100 [mm]
