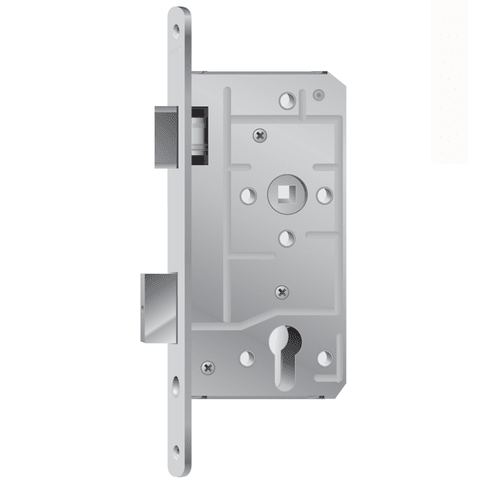

Einsteckschloss für Wohnungsinnen- und Abschlusstüren 113-WC/55-L-24-K-48
55-LS-24-KTG. ALT SILBER LACK. GE 1356 OHNE SCHLIESSBL.
more details
Meesenburg Article Number:
Manufacturer item no.:
3359210
Product properties
Product properties
Description
55-LS-24-KTG. ALT SILBER LACK. GE 1356 OHNE SCHLIESSBL.
Product properties
Square
8 mm
Removal
78 mm
Direction
left
Perforation
bath/wc
Design (lock case)
closed
Forend shape
flat
Square spindle follower
8 mm
Door type
Number of door leaves
1
Backset
55 mm
Forend width
24 mm
Bolt exclusion (dimension)
10.5 mm
Backset
32 mm
Forend thickness
3 mm
Faceplate length
235 mm
Installation depth
84 mm
Lock case height
165 mm
Brand
kfv_karl_fliether_gmbh_co_kg
