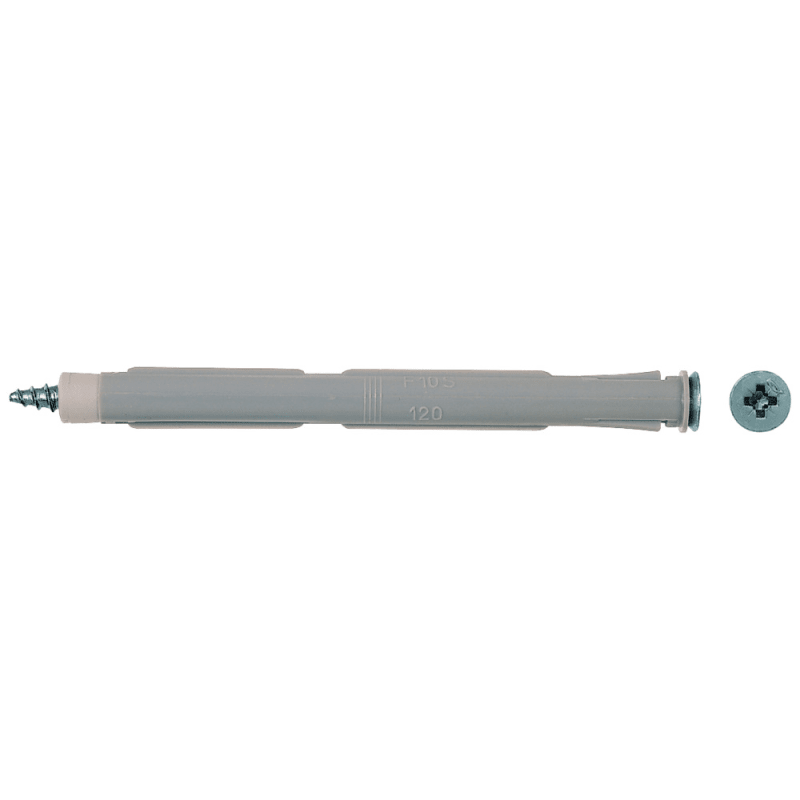

Fischer window frame anchor plug F 10 S 100 countersunk screw, 088626

Der fischer Fensterrahmendübel F-S ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einem Dübel aus hochwertigem Nylon und einer Senkkopfschraube

more details
Meesenburg Article Number:
Manufacturer item no.: 088626
EAN: 4006209886267
Verkaufseinheit

Product advantages

The functional principle of the dowel prevents the frame from being drawn towards the surface and ensures a tension-free and durable fastening of the frame.
The special dowel geometry anchors metal and plastic profiles tensile and pressure-resistant and enables a secure hold of the window frame.
The separately available cover cap provides a discreet cover for the screw head.
Product properties
Product properties

Description

Der fischer Fensterrahmendübel F-S ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einem Dübel aus hochwertigem Nylon und einer Senkkopfschraube mit Kreuzschlitzaufnahme aus galvanisch verzinktem Stahl. Der F-S wird zeitsparend in der Durchsteckmontage gesetzt. Beim Anziehen der Schraube wird der mit Glasfaser verstärkte Kunststoffkonus in die Dübelhülse gezogen, spreizt auf und verspannt sich gegen die Bohrlochwand. Dadurch wird der Fensterrahmen spannungsfrei in Voll- und Lochbaustoffen befestigt.
Product properties
Drive
cross slot PZ
Drive size
3
Anchorage base
Weight
1230 g
Brand
fischerwerke_gmbh_co_kg
technical data

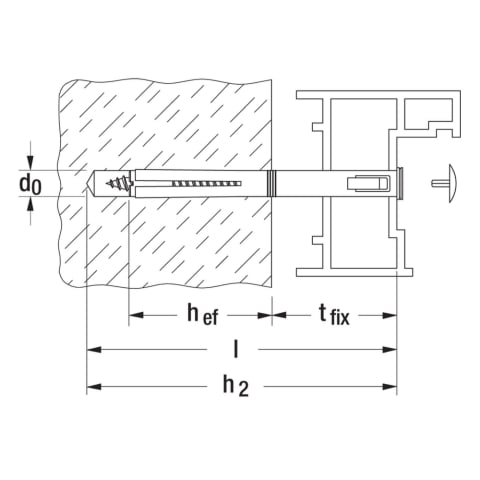

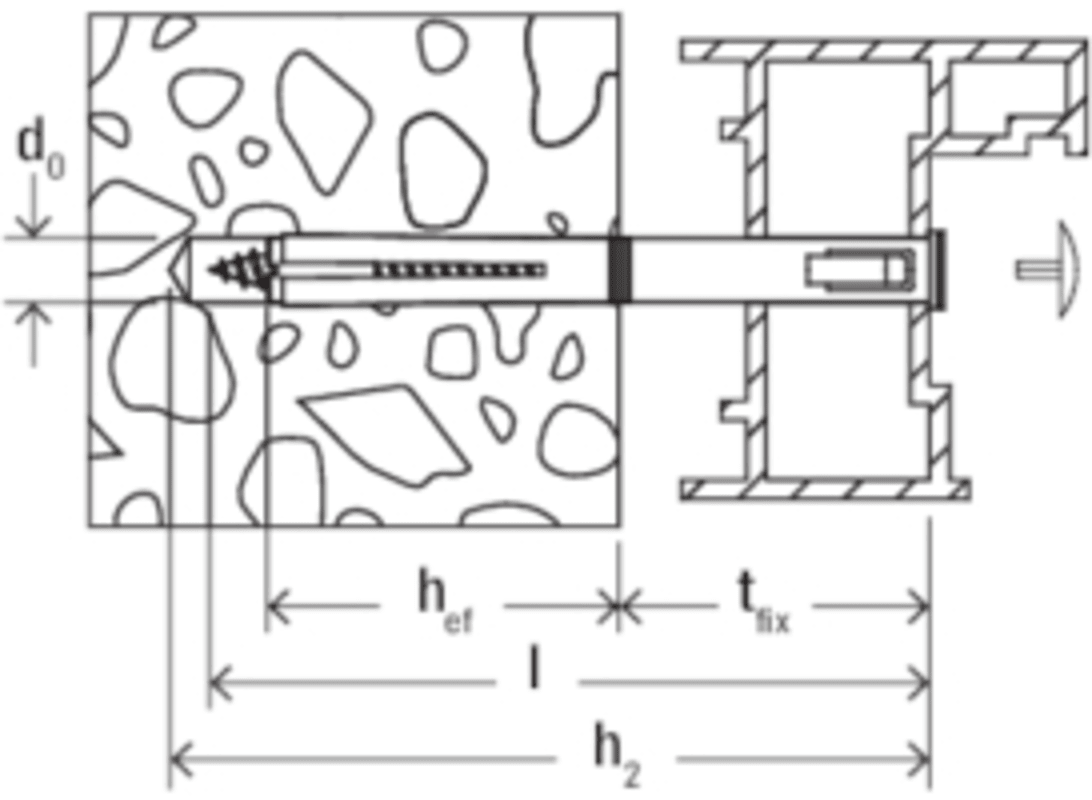

Drilling diameter: 10 [mm] Dowel length: 100 [mm] Suitable for aerated concrete: Yes Spacing installation: Yes Suitable for concrete: Yes Through installation: Yes Suitable for plasterboard: No Suitable for perforated bricks: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning installation: No Colour: grey Drive: Cross-head PZ Design: with screw Packaging variant: Folding box Max. torque during anchoring: 6 [N·m] Max. thickness of the attachment part: 40 [mm] Min. drilling depth for through installation: 115 [mm] Min. anchoring depth: 50 [mm] Screw dimension: 6.0 x 110 [mm]
