Fischer window frame plug F 10 S 120 countersunk screw, 088627

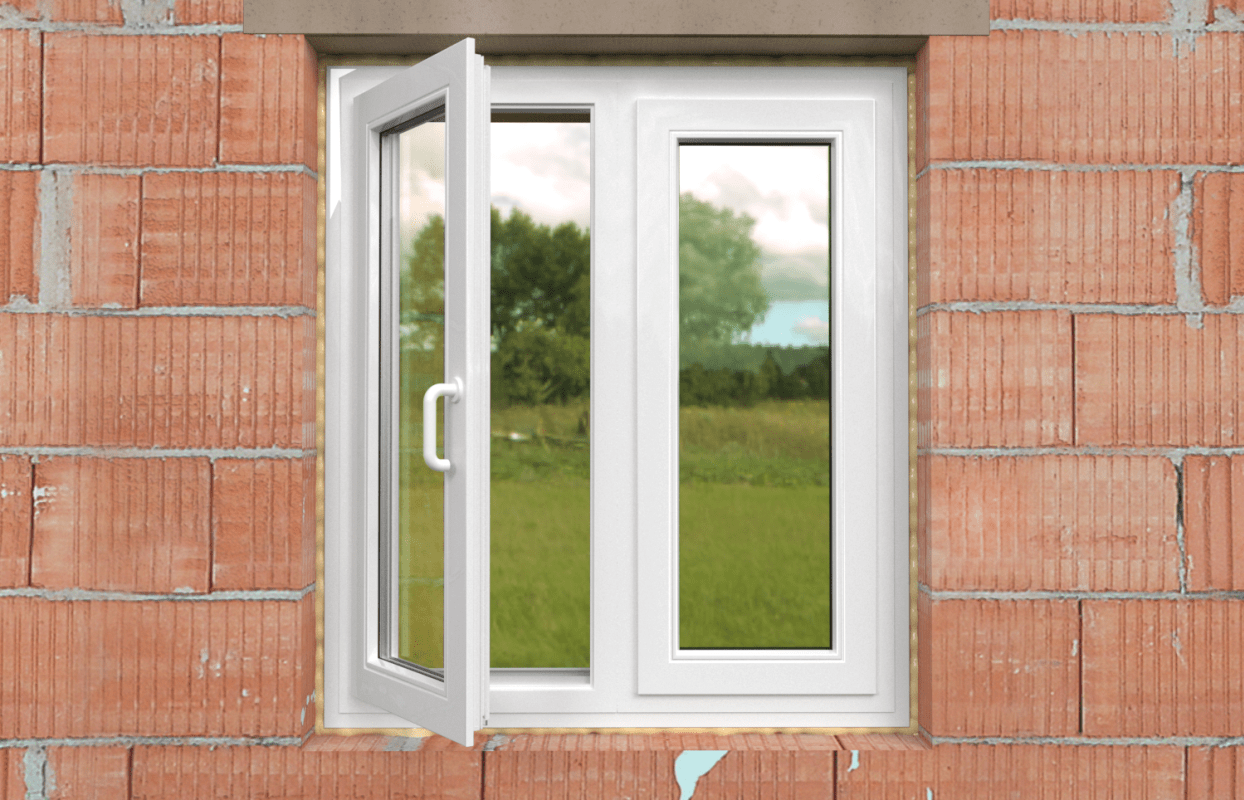

Der fischer Fensterrahmendübel F-S ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einem Dübel aus hochwertigem Nylon und einer Senkkopfschraube

more details
Meesenburg Article Number:
Manufacturer item no.: 088627
EAN: 4006209886274
Verkaufseinheit

Product advantages

The functional principle of the dowel prevents the frame from being pulled towards the substrate and ensures a tension-free and durable fixation of the frame.
The special dowel geometry securely anchors metal and plastic profiles in tension and compression and allows for a secure hold of the window frame.
The separately available cover cap provides a discreet cover for the screw head.
Product properties
Product properties

Description

Der fischer Fensterrahmendübel F-S ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einem Dübel aus hochwertigem Nylon und einer Senkkopfschraube mit Kreuzschlitzaufnahme aus galvanisch verzinktem Stahl. Der F-S wird zeitsparend in der Durchsteckmontage gesetzt. Beim Anziehen der Schraube wird der mit Glasfaser verstärkte Kunststoffkonus in die Dübelhülse gezogen, spreizt auf und verspannt sich gegen die Bohrlochwand. Dadurch wird der Fensterrahmen spannungsfrei in Voll- und Lochbaustoffen befestigt.
Product properties
Drive
cross slot PZ
Drive size
3
Anchorage base
Weight
1480.2 g
Brand
fischerwerke_gmbh_co_kg
technical data

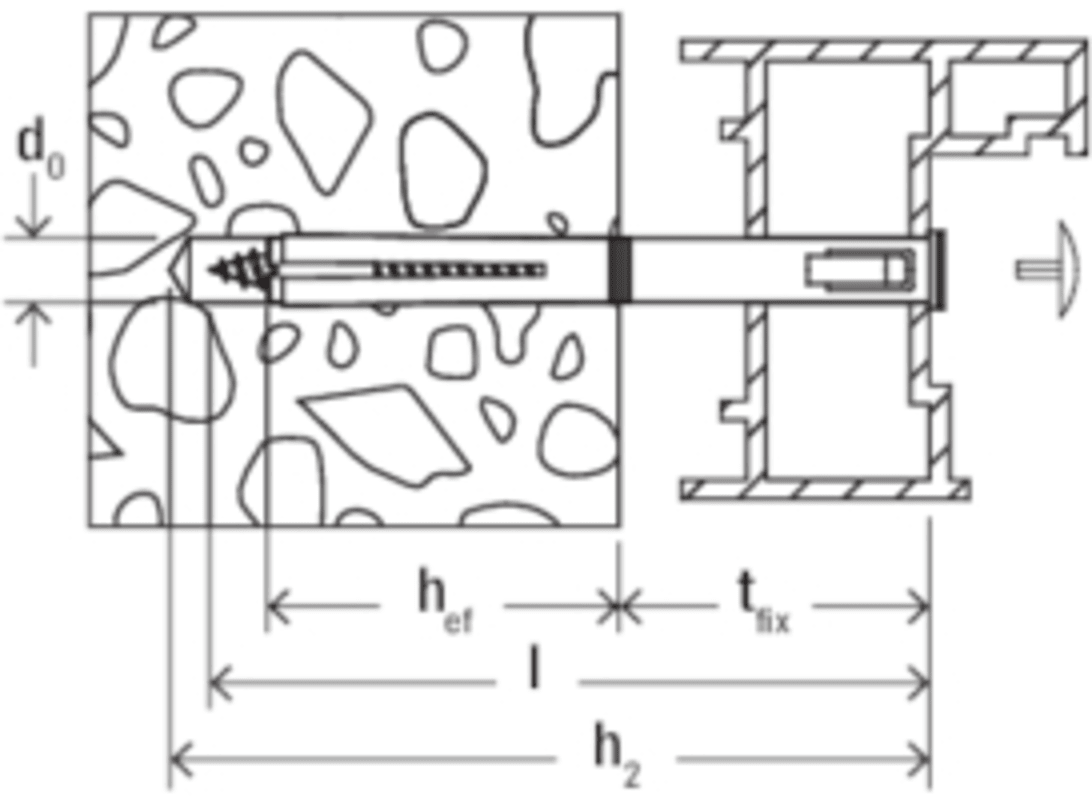

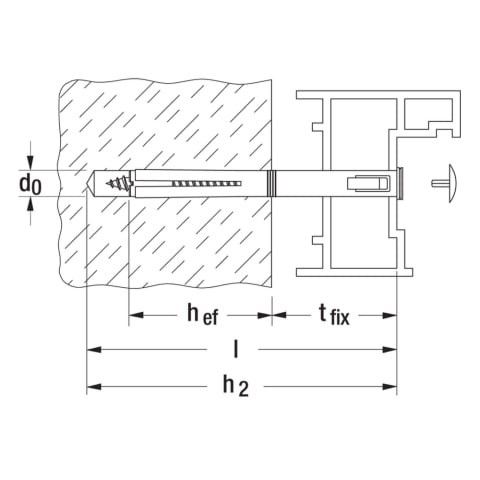

Drill hole diameter: 10 [mm] Dowel length: 120 [mm] Suitable for aerated concrete: Yes Spacing installation: Yes Suitable for concrete: Yes Through installation: Yes Suitable for plasterboard: No Suitable for perforated bricks: Yes Suitable for calcium silicate bricks: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid bricks: Yes Pre-positioning installation: No Colour: grey Drive: Phillips PZ Design: with screw Packaging variant: folding box Max. torque during anchoring: 6 [N·m] Max. thickness of the component: 60 [mm] Min. drilling depth for through installation: 135 [mm] Min. anchoring depth: 50 [mm] Screw dimensions: 6.0 x 130 [mm]
