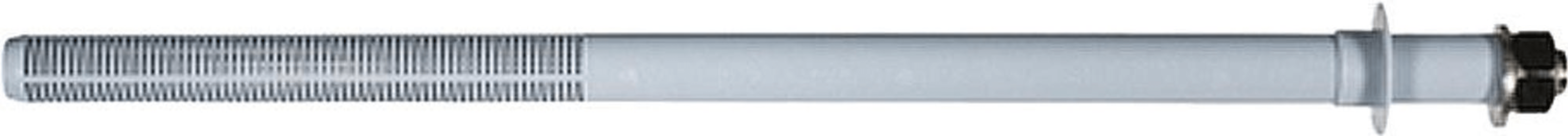

fischer FIS Set 18 x 130 / 200 M 12 / 200 R stainless steel, 047452

Injektions-Durchsteckankerhülse FIS H 18 x 130/200 K• Die direkte Montage durch das Anbauteil hindurch reduziert die Vorleistung und gewährleistet einen wesentlich einfacheren Montageablauf • Die Ko

more details
Meesenburg Article Number:
Manufacturer item no.: 047452
EAN: 4006209474525
Verkaufseinheit

Product advantages

The grid structure of the injection anchor sleeve FIS H K is matched to the injection mortar FIS V Plus, multifunctional mortar, assembly mortar FIS VL, assembly mortar Green and ensures economical mortar consumption with optimal form fit.
The centering wings align the fastening element perfectly in the anchor sleeve and allow for the use of various anchor rod diameters.
The barbs hold the anchor sleeve securely in the borehole, allowing for easy overhead installation.
Product properties
Product properties

Description

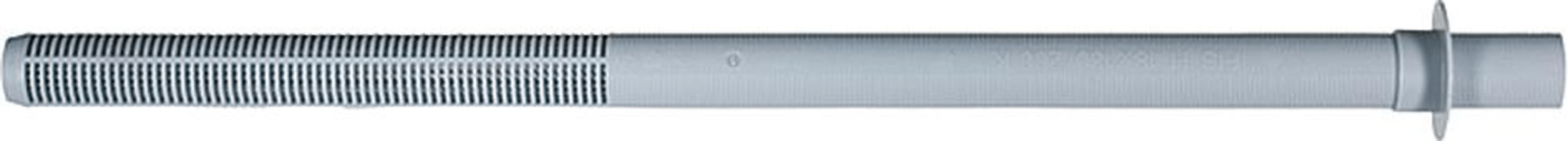

Injektions-Durchsteckankerhülse FIS H 18 x 130/200 K

• Die direkte Montage durch das Anbauteil hindurch reduziert die Vorleistung und gewährleistet einen wesentlich einfacheren Montageablauf
• Die Konstruktion ermöglicht variable Nutzlängen
• Der verschiebbare Rand in Verbindung mit der Skalierung erleichtert die Anpassung der Ankerhülse auf die gewünschte Nutzlänge
• Die Gitterstruktur ist abgestimmt auf die Injektionsmörtel FIS V und FIS V HIGH SPEED und sorgt für sparsamen Mörtelverbrauch bei optimalem Formschluss
• Füllmenge = 35 Skalenteile
• ETA-10/0383

Zugelassen für: Hochlochziegel, Hohlblock aus Leichtbeton, Hohlblock aus Beton, Kalksand-Lochstein, Kalksand-Vollstein, Vollziegel
Auch geeignet für: Bimsholstegdielen, Hohlkörperdecken und andere Lochsteine, Vollbims und andere Vollbaustoffe
Anwendungen: Holzkonstruktionen, Markisen, Vordächer, Carports, Tore

Product properties
Approval
Anchorage base
Weight
1589.96 g
Brand
fischerwerke_gmbh_co_kg
technical data
Drill diameter: 18 [mm] Drill diameter: 18 [mm] Thread size (metric): 12 Material: Plastic Packaging variant: Folding box Max. drilling depth: 340 [mm] Max. usable length: 200 [mm] Max. thickness of the attachment part: 200 [mm] Min. anchoring depth: 130 [mm] Compatible with: M12 R in the set Material / Corrosion protection: Stainless steel A4
