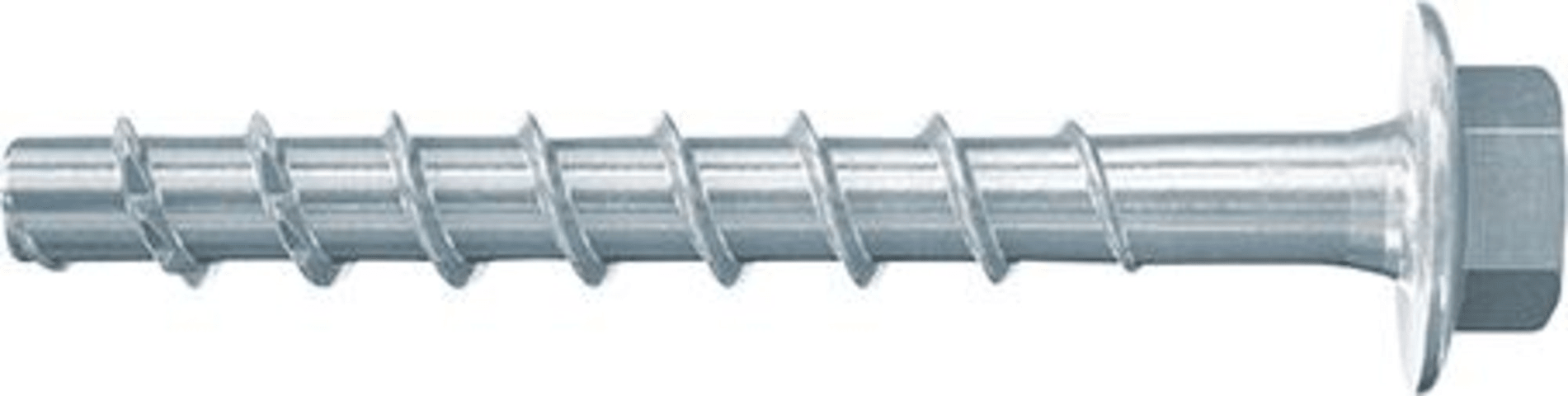

fischer UltraCut FBS II 8 x 55 5/- US hexagon with U-washer internal star TX, 536851

Betonschraube ULTRACUT FBS II, mit Sechskantkopf, galvanisch verzinkt• Spezielle Sägezahngeometrie für schnelles Einschneiden in den Beton • Bei vertikaler Montage (in Decken und Böden) und der Verwe

more details
Meesenburg Article Number: 6606027114
Manufacturer item no.: 536851
EAN: 4048962251340
Verkaufseinheit
x
Quantity:
=
measurement_units.standard.ST.name
Online availability
Location availability
Availability request and location information. Click & Collect is currently not available.
Prices only for Meesenburg customers

Product advantages

Greatest flexibility in load and attachment thickness due to up to three approved screw-in depths.
The special sawtooth geometry allows for quick cutting into the concrete.
In the case of vertical installation (in ceilings and floors) and the use of hole saws, hole cleaning is not necessary. When drilling into the floor, the hole must be drilled 3 times the diameter deeper.
Product properties
Application properties
Downloads
Product properties

Description

Betonschraube ULTRACUT FBS II, mit Sechskantkopf, galvanisch verzinkt

• Spezielle Sägezahngeometrie für schnelles Einschneiden in den Beton
• Bei vertikaler Montage (in Decken und Böden) und der Verwendung von Hohlbohrern ist eine Bohrlochreinigung nicht erforderlich
• Bei Bohrungen in den Boden muss 3x Bohrerdurchmesser tiefer gebohrt werden
• Mehrfachverwendung bei temporärer Verankerung z. B. im Schalungsbau
• Ideal für die Befestigung von Geländern, Anprallschutz, Konsolen oder Schalungsstützen

Hinweis: Zur Montage der Mauerschraube wird ein Tangential-Schlagschrauber mit Schlagschrauber tauglicher Nuss oder ein spezieller Torx Bit empfohlen

Product properties
technical data
Drive: TX40 / SW 13 Drill diameter: 8 [mm] Screw-in depth with component thickness: 50 / 5 [mm] Material: galvanized steel Effective length: 5 [mm] Packaging variant: Folding box Min. borehole depth for through-mounting: 65 [mm] Screw dimension: 10.0 x 55 [mm] Screw length: 55 [mm] Seismic approval: C1 / C2
Drive
external hexagon / torx
Drive size
40/13
Head shape
Hexagonal head
Surface protection
electrogalvanised
Material

steel

Approval

Concrete C20/25 to C50/60 cracked and non-cracked

Anchorage base

Solid building materials

Length
55 mm
Diameter
8 mm
Screw length
70 mm
Screw diameter
10 mm
Application properties
Application properties
Downloads
Downloads
