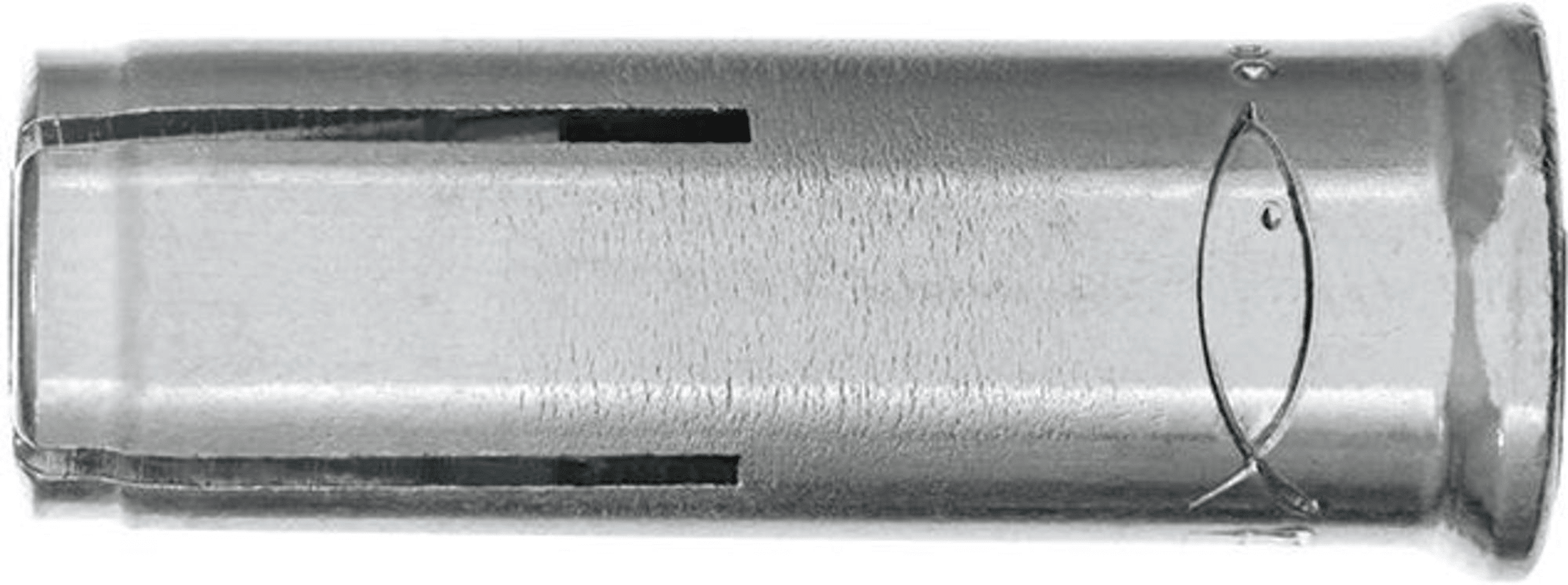

fischer Impact Anchor EA II M10, 048339

Einschlaganker EA II• Stahl, galvanisch verzinkt • Innengewindeanker mit Rand für die einfache Schlagmontage • Für Vorsteckmontage geeignet • Angeprägter Rand zur Verhinderung von Tieferrutschen d

more details
Meesenburg Article Number:
Manufacturer item no.: 048339
EAN: 4006209483398
Verkaufseinheit

Product advantages

The embossed edge prevents the anchor sleeve from sliding too deep and ensures easy installation by hammering.
The metric internal thread allows the use of commercially available screws or threaded rods for the ideal adaptation to the application.
The machine setting device EMS enables a gentle assembly, especially for series installations.
Product properties
Product properties

Description

Einschlaganker EA II

Stahl, galvanisch verzinkt
• Innengewindeanker mit Rand für die einfache Schlagmontage
• Für Vorsteckmontage geeignet
• Angeprägter Rand zur Verhinderung von Tieferrutschen der Ankerhülse und Sicherstellung einer problemlosen Schlagmontage
• Metrisches Innengewinde für Verwendung handelsüblicher Schrauben oder Gewindestangen
• Kein Drehmoment der Schrauben erforderlich
ETA-07/0142
• Zugelassen für Beton C20/25 bis C50/60, gerissen und ungerissen
• Auch geigenet für Beton C12/15, Naturstein mit dichtem Gefüge

Product properties
Surface protection
electrogalvanised
Material
Approval
Anchorage base
Weight
1151 g
Brand
fischerwerke_gmbh_co_kg
technical data
Anchor length: 40 [mm] Drill hole diameter: 12 [mm] Mounting distance: No Suitable for concrete: Yes Through-type installation: No Suitable for natural stone: Yes Pre-positioned installation: Yes Thread size (metric): 10 [mm] Permissible load in tension zone: 6.1 [kN] Material: galvanised steel Packaging variant: Folding box Internal thread: M10 Max. screw-in depth: 17 [mm] Min. drilling depth: 43 [mm] Min. drilling depth for pre-positioned installation: 43 [mm] Min. screw-in depth: 10 [mm] Min. anchoring depth: 40 [mm]
