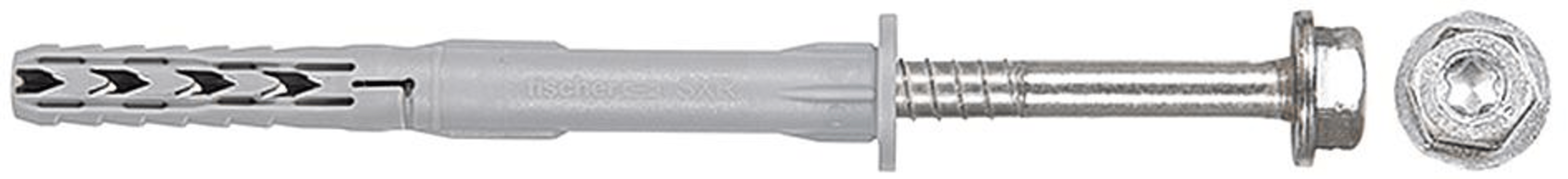

Fischer long-shaft anchor SXR 10 X 80 FUS hexagon screw with U-washer stainless steel R, 046340

Langschaftdübel SXR-FUS mit 6-kant-Sicherheitsschraube• Geringe Verankerungstiefe spart Zeit und Kosten • ETA-Bewertung in Beton und Mauerwerk • Dübel spreizt in Vollbaustoffen • In Lochbaustoffen

more details
Meesenburg Article Number:
Manufacturer item no.: 046340
EAN: 4006209463406
Verkaufseinheit

Product advantages

The special functionality allows for use in solid and hollow building materials with an anchoring depth of just 50 mm, ensuring an economical fastening.
The ETA assessment covers the use in many solid and hollow building materials, thus guaranteeing a secure fastening.
The specially developed combination of dowel and security screw ensures optimal handling. The dowel tightens noticeably, providing more installation comfort.
Product properties
Product properties

Description

Langschaftdübel SXR-FUS mit 6-kant-Sicherheitsschraube

• Geringe Verankerungstiefe spart Zeit und Kosten
• ETA-Bewertung in Beton und Mauerwerk
• Dübel spreizt in Vollbaustoffen
• In Lochbaustoffen verankert der Dübel im Hohlraum
• Mit vormontierter Sicherheitsschraube mit Sechskantkopf und angeformter Unterlegscheibe
• ETA-07/0121

Zugelassen für:
Beton >= C12/15, Hochlochziegel, Hohlblock aus Leichtbeton, Kalksandlochstein, Kalksandvollstein, Porenbeton, Vollblock aus Leicht- und Normalbeton, Vollziegel, Wärmedämmblöcke

Auch geeignet für:
Naturstein mit dichtem Gefüge, Vollgips-Platten

Product properties
Drive
external hexagon / torx
Drive size
40/13
Anchorage base
Length
80 mm
Weight
1788 g
Diameter
10 mm
Brand
fischerwerke_gmbh_co_kg
technical data

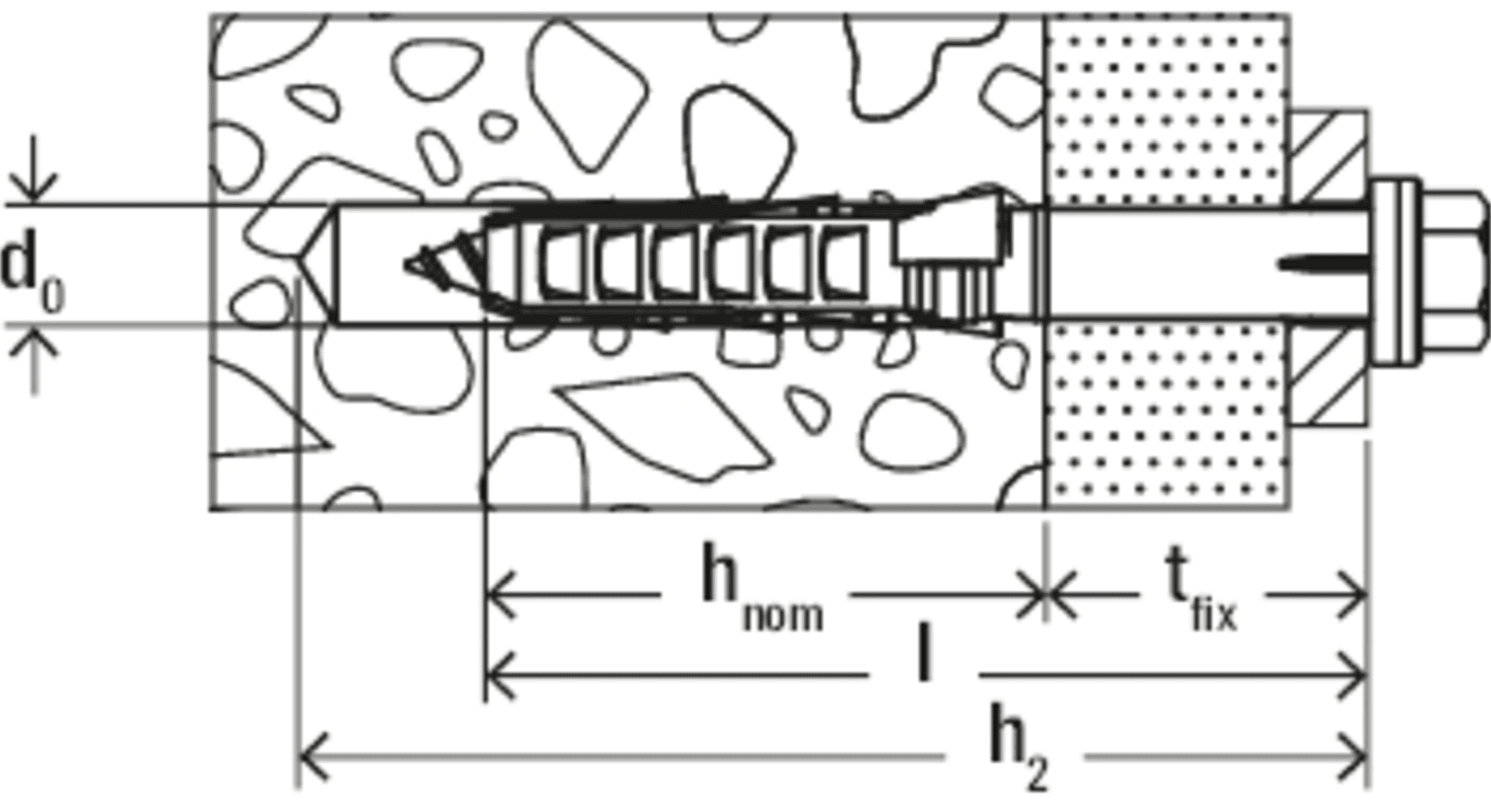

Drive: TX40 / SW 13 Drill hole diameter: 10 [mm] Dowel length: 80 [mm] Suitable for gas concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-mounting: Yes Suitable for plasterboard: No Suitable for perforated brick: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning mounting: No Colour: grey Drive: Internal star TX / Hexagon Design: with screw Material: non-rusting steel Usable length: 30 [mm] Surface (screw): Stainless steel A4 Screw geometry: Hexagon with pressed washer Packaging variant: Folding box Approval / Rating: Aerated concrete E Approval / Rating: Masonry Approval / Rating: Concrete Max. Thickness of the attached part: 30 [mm] Min. Drill hole depth: 90 [mm] Min. Drill hole depth for through-mounting: 90 [mm] Min. Anchoring depth: 50 [mm] Screw dimension: 7.0 x 89 [mm]
