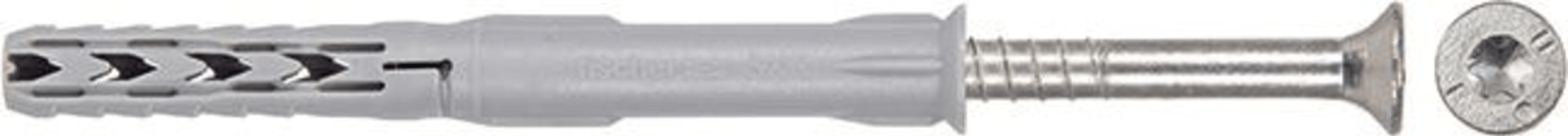

Fischer Long Expansion Plug SXR 8 x 120 T Countersunk Screw, 503002

Langschaftdübel SXR-T• Mit galvanisch verzinkter fischer® Sicherheitsschraube mit T-Antrieb • Erster Langschaftdübel mit 10 mm Durchmesser • Für die Verwendung als Mehrfachbefestigung von nichttrag

more details
Meesenburg Article Number:
Manufacturer item no.: 503002
EAN: 4048962016307
Verkaufseinheit

Product advantages

The special functionality allows for use in solid and hollow building materials with an anchoring depth of only 50 mm, ensuring an economical fastening.
The ETA assessment covers the use in many solid and hollow building materials and thus guarantees a secure fixing.
The specially developed combination of dowel and security screw ensures optimal handling. The dowel tightens noticeably, providing more installation comfort.
Product properties
Product properties

Description

Langschaftdübel SXR-T

• Mit galvanisch verzinkter fischer® Sicherheitsschraube mit T-Antrieb
• Erster Langschaftdübel mit 10 mm Durchmesser
• Für die Verwendung als Mehrfachbefestigung von nichttragenden Systemen in Beton und Mauerwerk
• Universaldübel mit nur 50 mm Verankerungstiefe
• Europäisch technische Zulassung für Mehrfachbefestigung von nichttragenden Konstruktionen
• Auch für zentrischen Zug im gerissenen Beton
ETA-07/0121

Zugelassen für: Beton >= C12/15, Hochlochziegel, Hohlblock aus Leichtbeton, Kalksand-Lochstein, Kalksand-Vollstein, Porenbeton, Vollblock aus Leicht- und Normalbeton, Vollziegel, Wärmedämmblöcke
Auch geeignet für: Naturstein mit dichtem Gefuge, Vollgips-Platten

Product properties
Drive
torx
Drive size
30
Surface protection
electrogalvanised
Anchorage base
Length
120 mm
Weight
1425 g
Diameter
8 mm
Brand
fischerwerke_gmbh_co_kg
technical data
Drive: TX30 Drill diameter: 8 [mm] Dowel length: 120 [mm] Suitable for gas concrete: Yes Spaced installation: No Suitable for concrete: Yes Through installation: Yes Suitable for plasterboard: No Suitable for perforated bricks: Yes Suitable for sand-lime brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning installation: No Colour: grey Drive: Internal star TX Design: with screw Material: galvanised steel Usable length: 70 [mm] Surface (screw): galvanised steel Screw geometry: Countersunk head Packaging variant: Folding box Approval / Rating: Masonry Approval / Rating: Concrete Max. thickness of the component: 70 [mm] Min. drilling depth: 130 [mm] Min. drilling depth for through installation: 130 [mm] Min. anchoring depth: 50 [mm] Screw dimension: 6.0 x 125 [mm]
