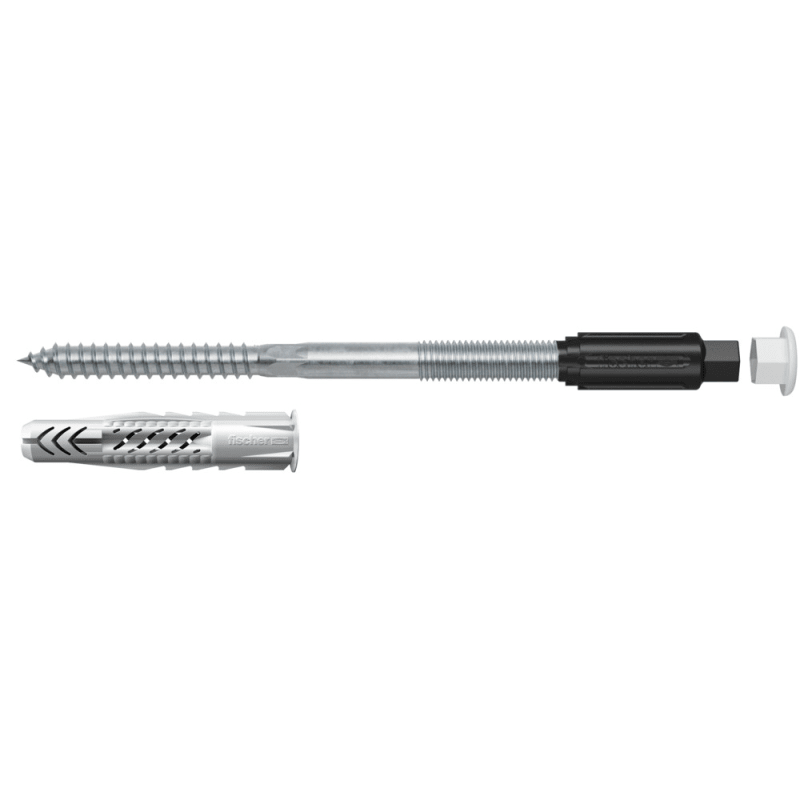

Fischer spacer mounting system TherMax 10/200 M8, 514253

Thermax 8 und 10• Das thermische Trennmodul für Abstandsmontagen auf Wärmedämmverbundsystemen • Thermische Trennung • Justierbar • Einfache, schnelle und professionelle Montage ohne Sonderwerkzeuge

more details
Meesenburg Article Number:
Manufacturer item no.: 514253
EAN: 4048962131741
Verkaufseinheit

Product advantages

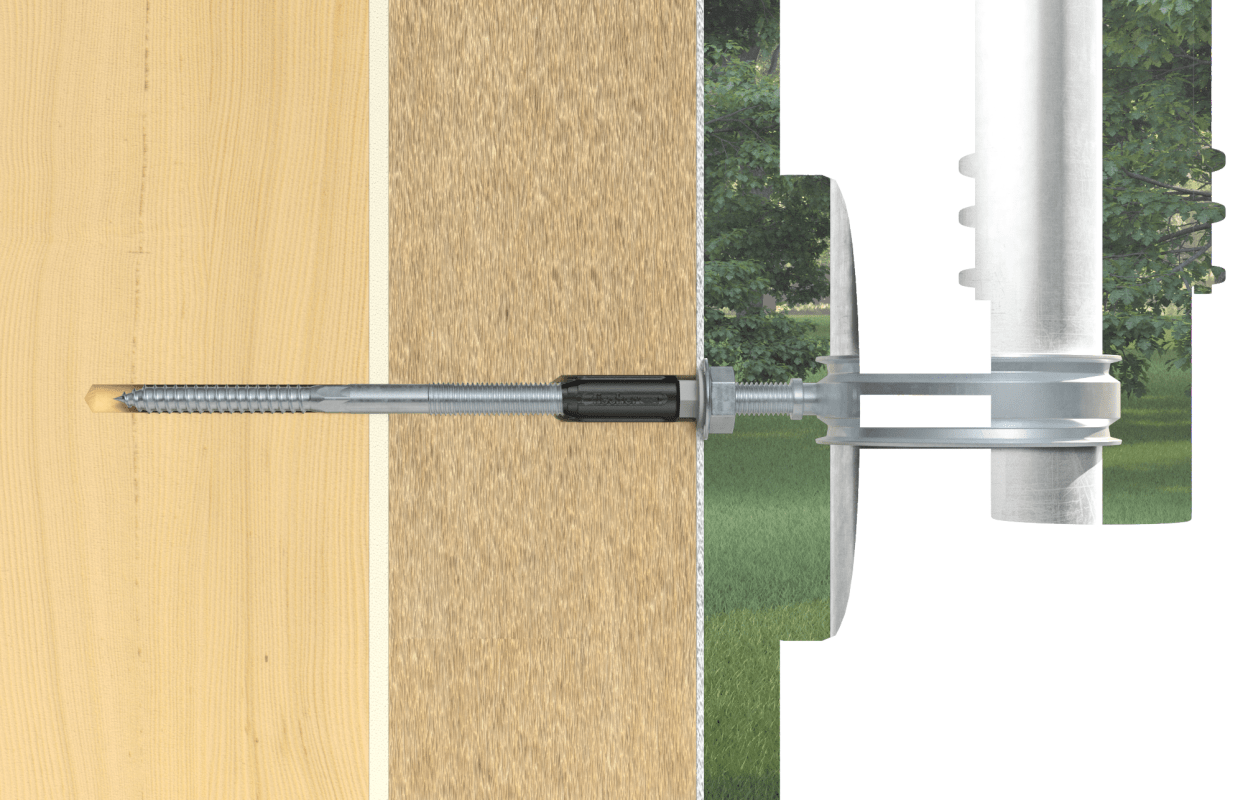

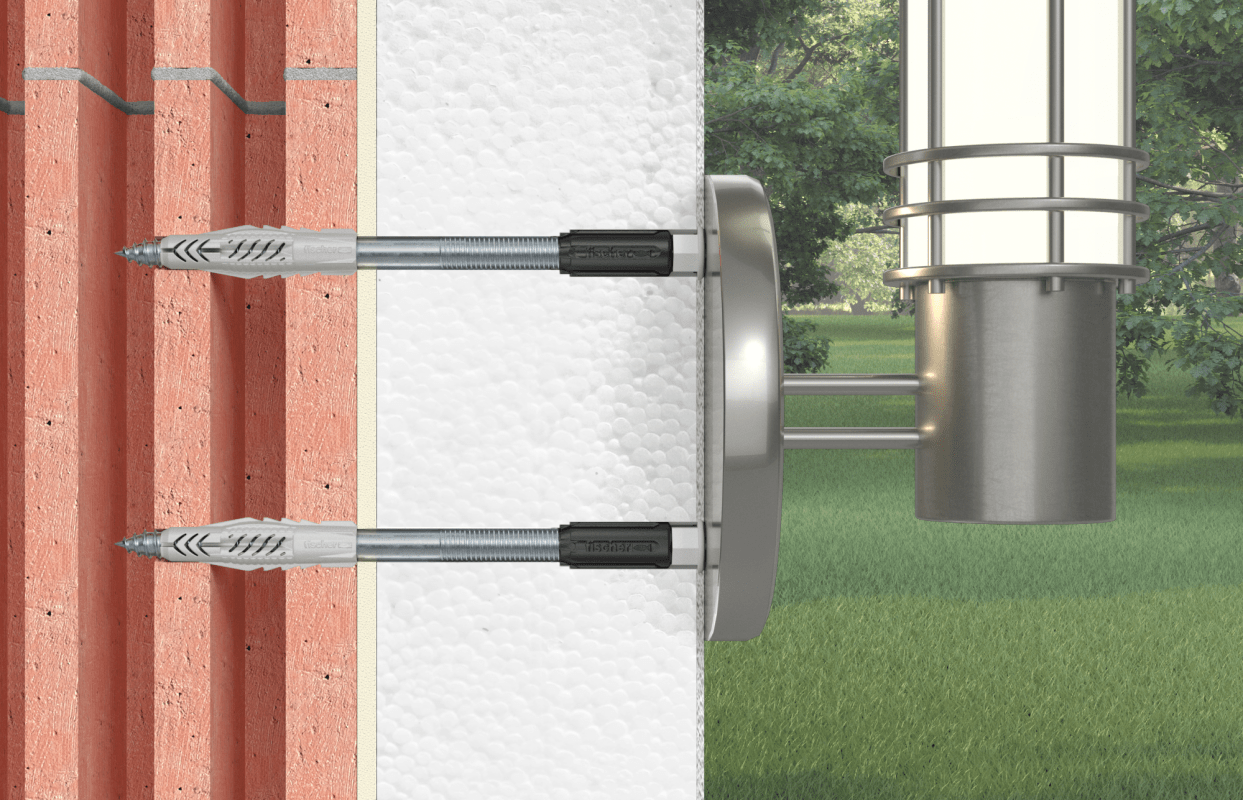

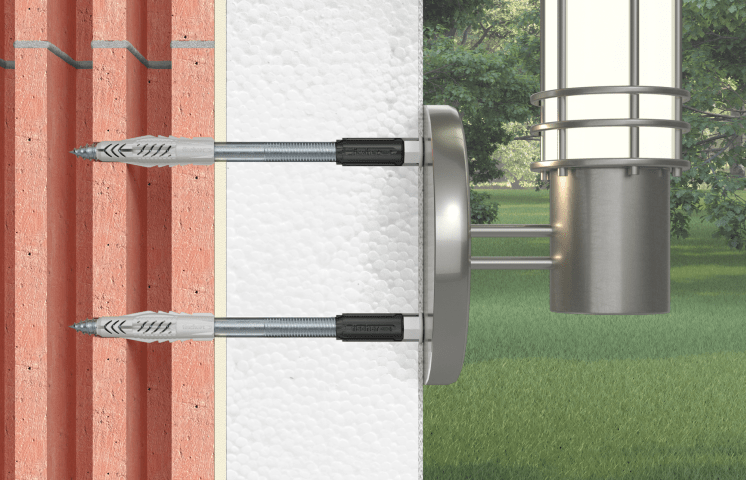

The spacer mounting allows for adjusting the attachment part for exact positioning, avoiding pressure points or damage to the external thermal insulation composite system (ETICS).
The plastic cone interrupts the thermal bridge between the attachment part and the inner fastening and provides an energetically optimised fastening.
The glass fibre reinforced plastic cone fits snugly into the external thermal insulation composite system (ETICS) and allows for easy and quick installation without the need for special tools.
Product properties
Product properties

Description

Thermax 8 und 10

• Das thermische Trennmodul für Abstandsmontagen auf Wärmedämmverbundsystemen
• Thermische Trennung
• Justierbar
• Einfache, schnelle und professionelle Montage ohne Sonderwerkzeuge (keine Mutter/Kontermutter oder Distanzhülse notwendig)
• Sicherheit – Verankerung im Untergrund
• Hohe Lasten
• Stockschraube ist direkt in Holz einschraubbar
• Nutzlängen von 45 bis 180 mm
• Kleine Abmessung der Abdeckkappe

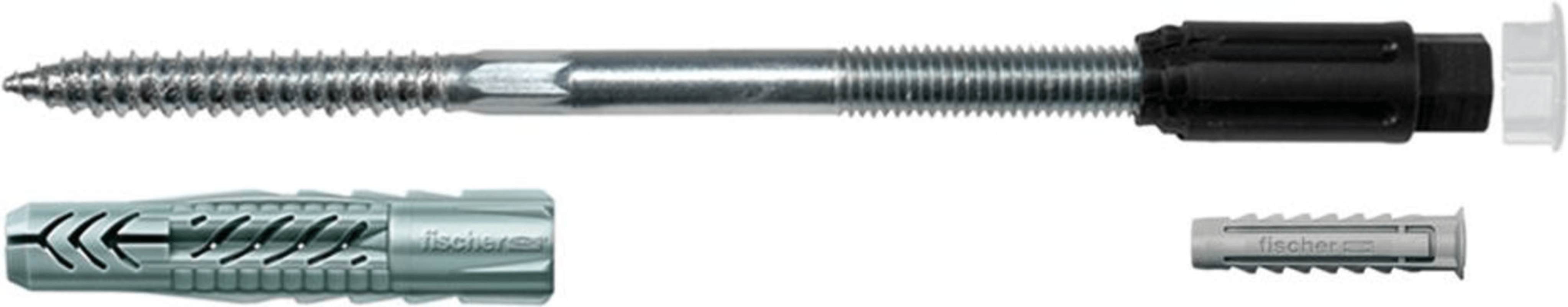

• Vielfältige Anschlussmöglichkeiten:
– mit SX 5: 4,5–5,5 mm Spanplattenschrauben
– 6,0 mm Spanplattenschrauben
– 6,3 mm Blechschrauben
– M6 / M8 / M10

Product properties
Surface protection
electrogalvanised
Anchorage base
Weight
2262.3 g
Effective length
180 mm
Brand
fischerwerke_gmbh_co_kg
technical data

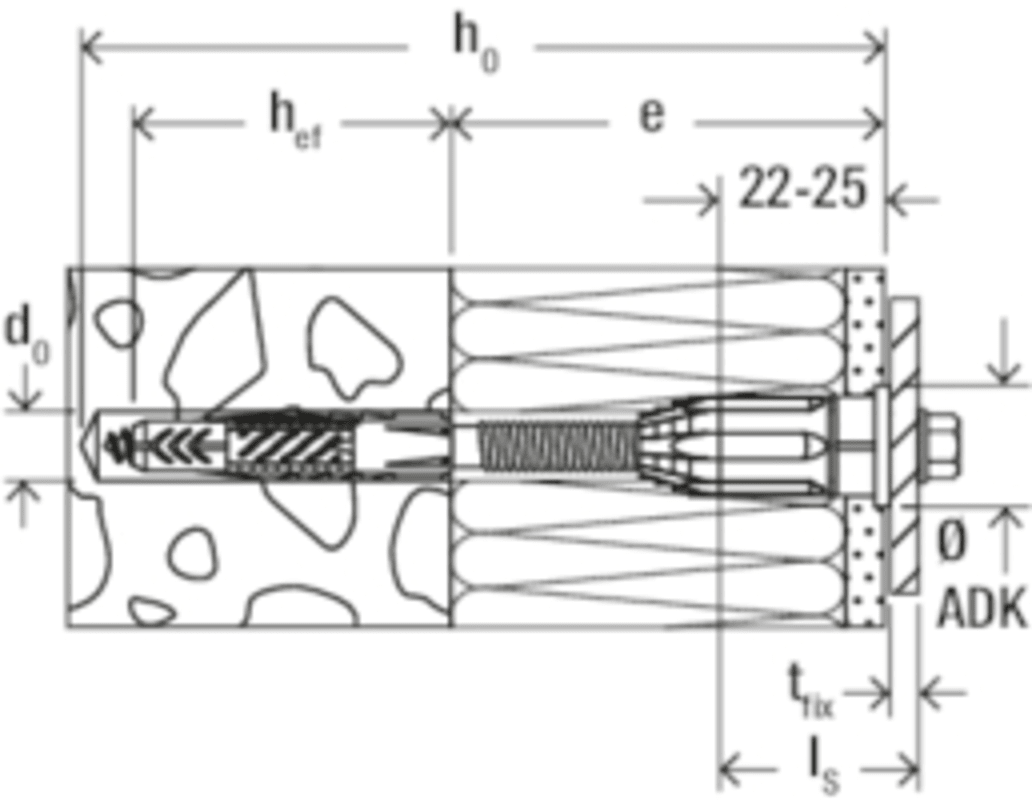

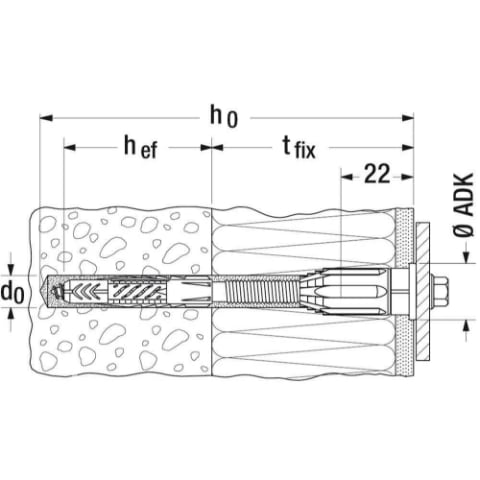

Cap diameter: 22 [mm] Drill hole diameter: 12 [mm] Hole depth: 260 [mm] Thread size (metric): 8 [mm] Cap colour: white Packaging variant: folding box Thread: M8 Effective length: 180 - 200 [mm] Thickness of non-load-bearing layer: 180 - 200 [mm] Wrench size: 13 [mm] Chipboard / metric / sheet metal screws: M8 Anchoring depth: 70 [mm]
