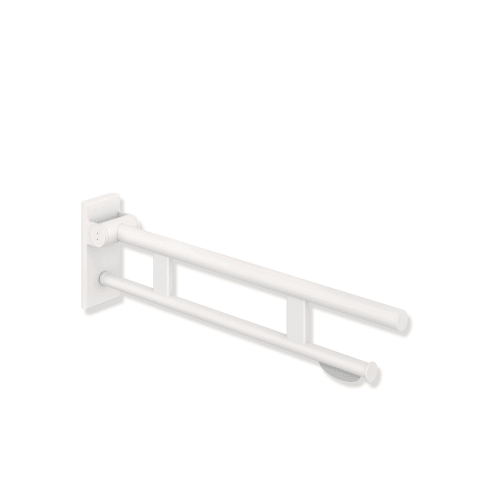

HEWI Mobile Support Folding Handle Duo 900.50.40760
two parallel, vertically arranged round handle levels, made of high-quality stainless steel, powder-coated in the HEWI colours DX (White deep matt), DC (Black deep matt) and SC (Dark grey pearl matt),
more details
Meesenburg Article Number:
Product properties
Product properties
Description
two parallel, vertically arranged round handle levels, made of high-quality stainless steel, powder-coated in the HEWI colours DX (White deep matt), DC (Black deep matt) and SC (Dark grey pearl matt), with mobile toilet paper holder, for retrofitting on mounting plate 900.50.00160, (to be ordered separately), projection 750 mm, 210 mm high, 101 mm wide, upper rail diameter: 33.7 mm, lower rail diameter: 25 mm, load capacity up to 100 kg, produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices. Complies with the requirements valid in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the support folding handle on the toilet.
Product properties
Brand
HEWI
technical data
- Execution: reversible
- Function: foldable
- Dimension: 750 mm
- Variant: toilet paper holder
- Wall plate: Design A
- Material: powder coating
- Assembly: mobile
Product features
- two parallel, vertically arranged round handle planes
- with toilet paper holder
- can be folded up and braked down
- can be used mobile
- for easy and flexible retrofitting on existing pre-assembled mounting plate 900.50.00160, must be ordered separately
- tool-free and fast assembly by simply hooking in the support folding handle
- secured against accidental pulling out with fixing screw
- reach 750 mm, height 210 mm and width 101 mm, upper rail diameter 33.7 mm, lower rail diameter 25 mm
- load-bearing up to 100 kg
- made of high-quality stainless steel, powder-coated in the HEWI colours DX (White deep matt), DC (Black deep matt) and SC (Dark Grey Pearl Glimmer deep matt)
- floor supports 900.50.02060 and 900.50.02160 retrofittable
- produced in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- meets the requirements valid in Belgium (CWATUPE, WVG Vlaanderen) regarding the reach of the support folding handle on the toilet
