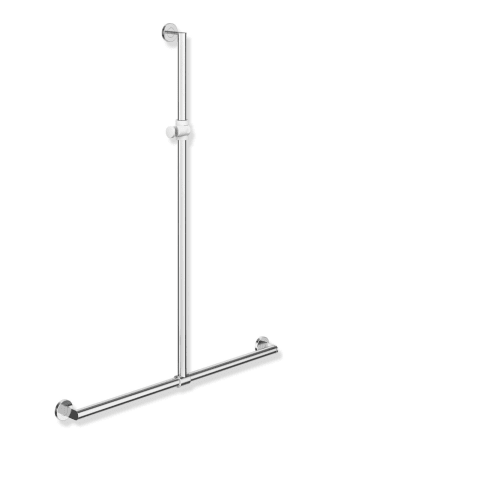

HEWI Shower grab bar with adjustable shower holder bar (ADA), System 900, 1250mm/610mm, Ø32 mm
Shower handrail from the HEWI System 900...The shower handrails with adjustable shower holder rods of the HEWI System 900 are made of high-quality stainless steel, while the shower holders are made of
more details
Meesenburg Article Number:
Product properties
Product properties
Description
Shower handrail from the HEWI System 900...
The shower handrails with adjustable shower holder rods of the HEWI System 900 are made of high-quality stainless steel, while the shower holders are made of polyamide. The vertical length is 1250 mm, the horizontal length is 610 mm, and the rod diameter is 32 mm.
Product properties
Material
Diameter
32 mm
Brand
HEWI
Product features
Shower grab rail with adjustable shower holder bar, System 900
- Vertically and horizontally arranged rods connected at right angles with mounting rosettes and shower holder
- With laterally (for installation) adjustable shower holder bar
- Vertical length 49 3/16 inch (1250 mm), horizontal length 24 inch (610 mm), 2 3/4 inch (70 mm) deep
- Rod diameter 1 1/4 inch (32 mm), pipe thickness 1/16 inch (2 mm), rosette diameter 2 3/4 inch (70 mm)
- Made of high-quality stainless steel
- Suitable for hand showers from various manufacturers
- Shower holder can be continuously tilted and adjusted in height after pressing a large-area button
- Conical attachment on the shower holder facilitates hanging the hand shower
- Includes corrosion-free and tested HEWI mounting material for wall mounting as well as sealing tape for sealing the drill points
- Maximum load capacity 330 lbs (150 kg)
- Meets the requirements of 2010 ADA Standards and ICC/ANSI A117.1-2017
