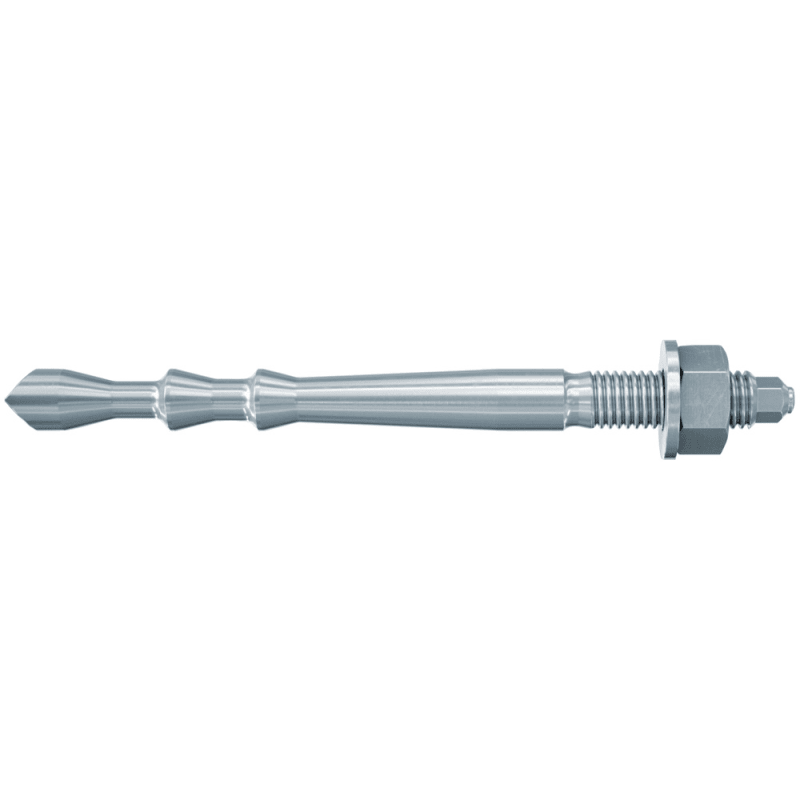

fischer Highbond anchor FHB II - A L M 10 x 95 / 10 galvanised, 096907

Die fischer Highbond-Ankerstange FHB II-A L ist aus galvanisch verzinktem Stahl hergestellt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpat

more details
Meesenburg Article Number:
Manufacturer item no.: 096907
EAN: 4006209969076
Verkaufseinheit

Product advantages

Due to the large anchoring depth of the anchor rod FHB II-A L, the system achieves maximum load values. This means that fewer fixing points and smaller anchor plates are required.
The cone geometry of the anchor rods FHB II-A L is specially optimised for high tensile load values. This achieves the highest performance in cracked concrete.
The anchor rod FHB II-A L is approved for use with both cartridges and injection mortar. This guarantees maximum flexibility in application.
Product properties
Product properties

Description

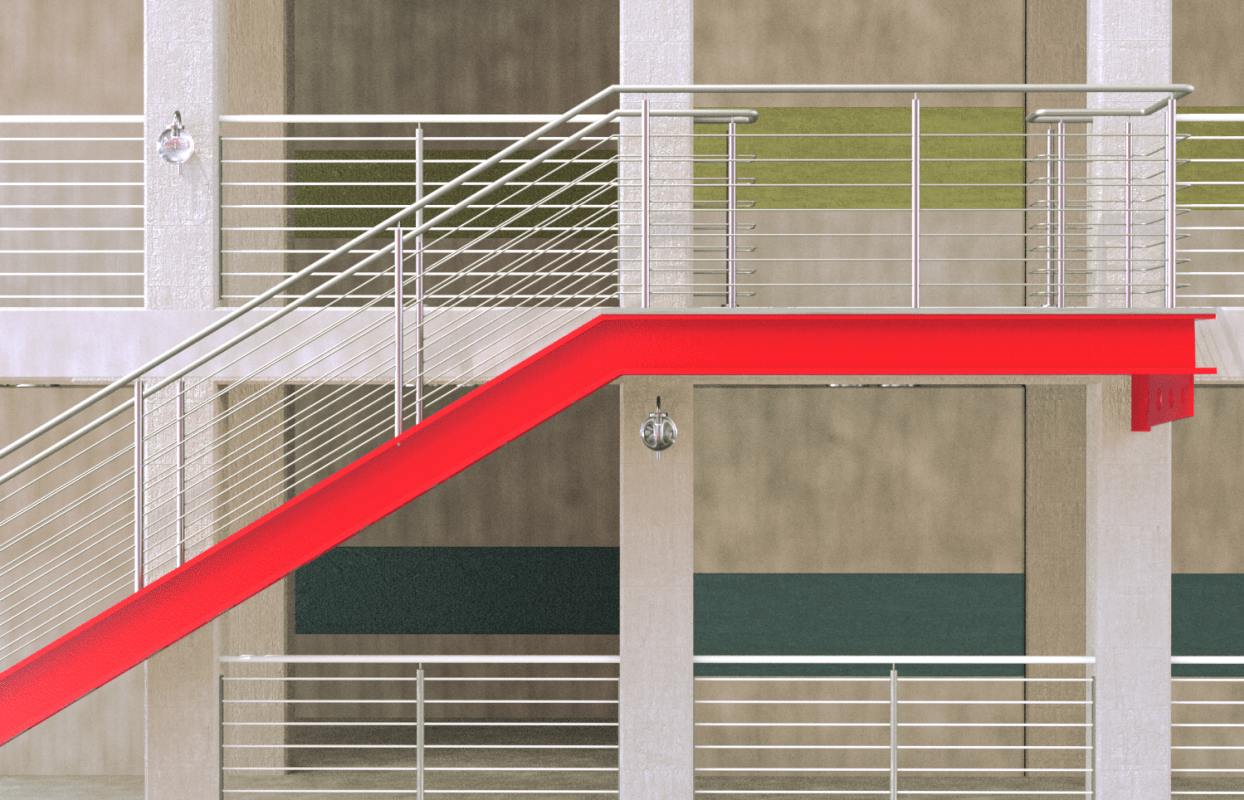

Die fischer Highbond-Ankerstange FHB II-A L ist aus galvanisch verzinktem Stahl hergestellt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpatronen FHB II-P und FHB II-PF HIGH SPEED verarbeitet werden. Beim Anziehen der Sechskantmutter werden die Konen der Ankerstange in die Mörtelschale gezogen, die sich gegen die Bohrlochwand verspannt. Mit dem fischer Highbond-System FHB II werden große Maschinen und schwere Stahlkonstruktionen im Innenbereich sicher befestigt.
Product properties
Surface protection
electrogalvanised
Material
Approval
Anchorage base
Weight
841 g
Effective length
10 mm
Brand
fischerwerke_gmbh_co_kg
technical data

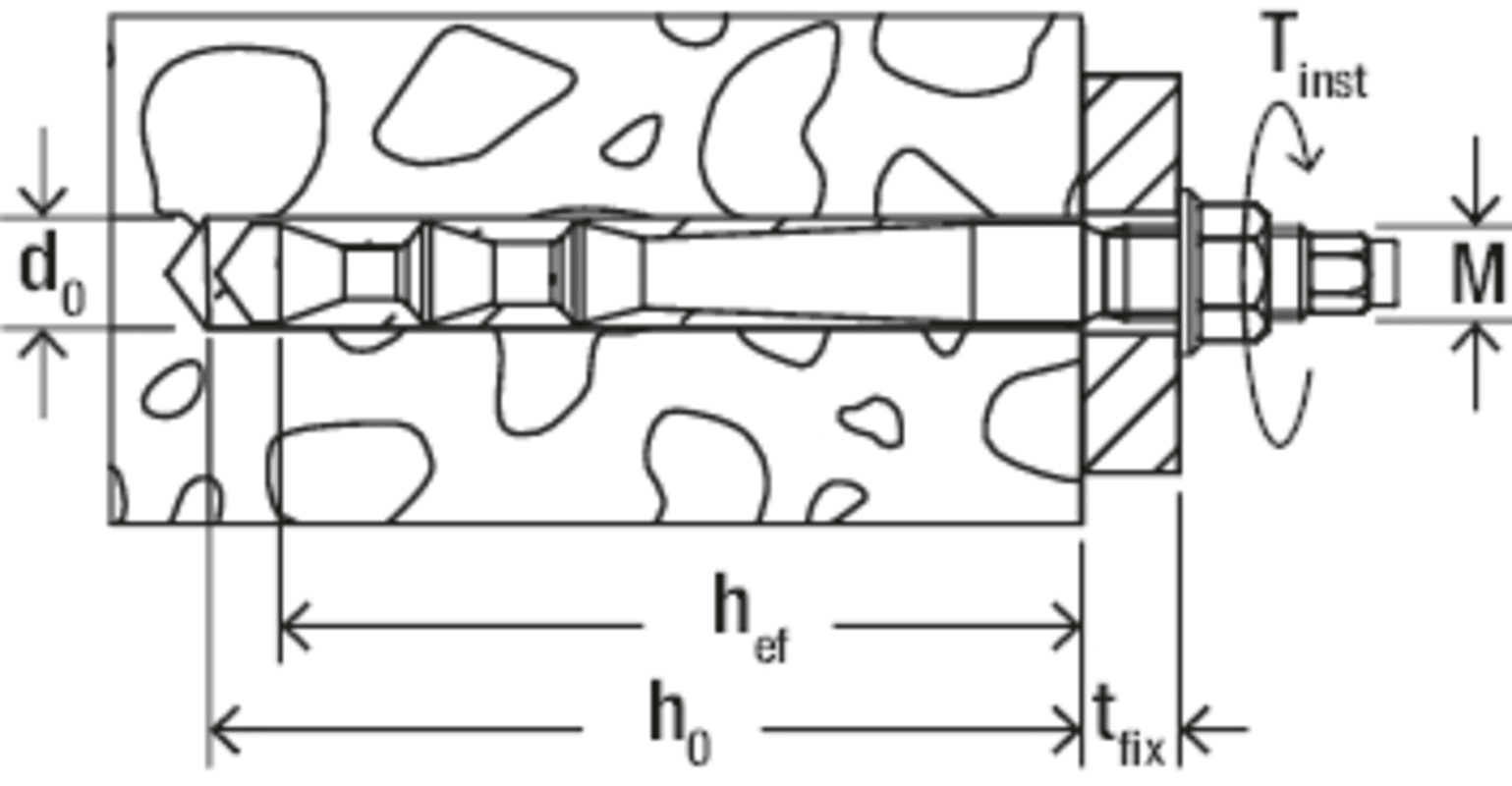

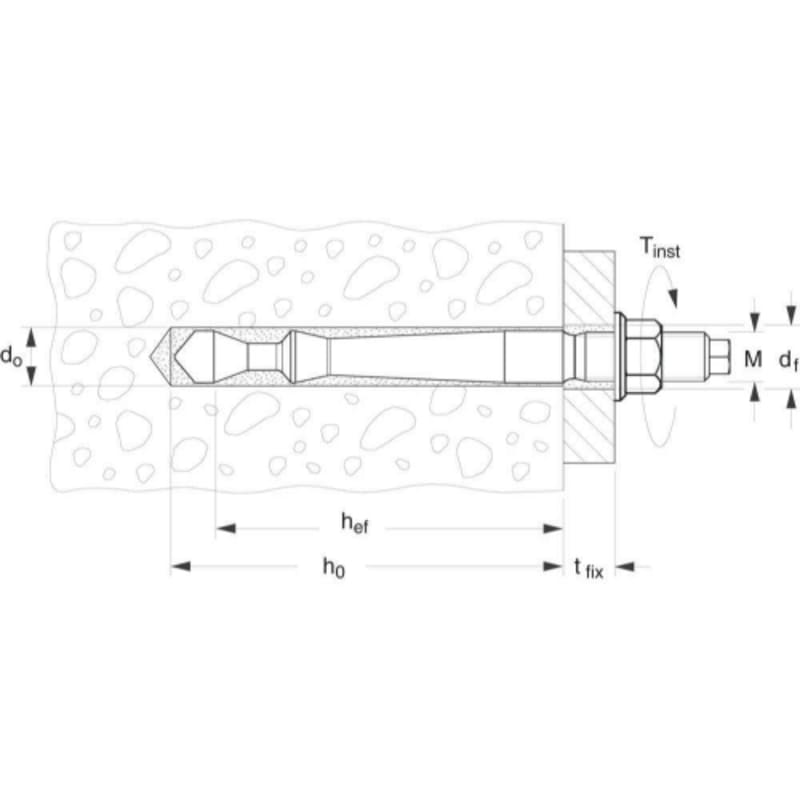

Drilling diameter: 12 [mm] Hole depth: 110 [mm] Fire protection relevant: Yes Thread size (metric): 10 [mm] Application conditions: predominantly static loads Application conditions: fire protection classification Application conditions: indoor area Material: Steel galvanized 8.8 Packaging variant: Folding box Thread: M10 Length: 133 [mm] Max. thickness of the attachment part: 10 [mm] With mortar cartridge: No Wrench size: 17 [mm] Mortar scale divisions: 5 Anchoring depth: 95 [mm]
