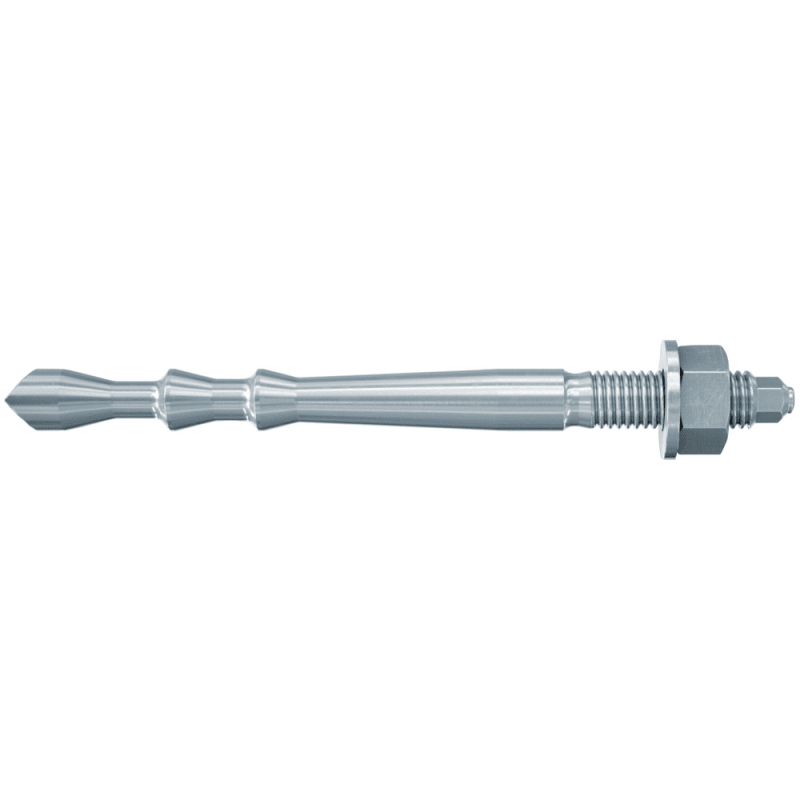

Fischer Highbond anchor FHB II - A L M 16 x 125 / 30 zinc plated, 506903

Die fischer Highbond-Ankerstange FHB II-A L ist aus galvanisch verzinktem Stahl hergestellt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpat

more details
Meesenburg Article Number:
Manufacturer item no.: 506903
EAN: 4048962078152
Verkaufseinheit

Product advantages

Due to the large anchorage depth of the anchor rod FHB II-A L, the system achieves maximum load values. This means that fewer fixing points and smaller anchor plates are required.
The cone geometry of the anchor rods FHB II-A L is specially optimised for high tensile load values. This achieves the highest level of performance in cracked concrete.
The anchor rod FHB II-A L is approved for use with cartridges as well as with injection mortar. This guarantees maximum flexibility in application.
Product properties
Product properties

Description

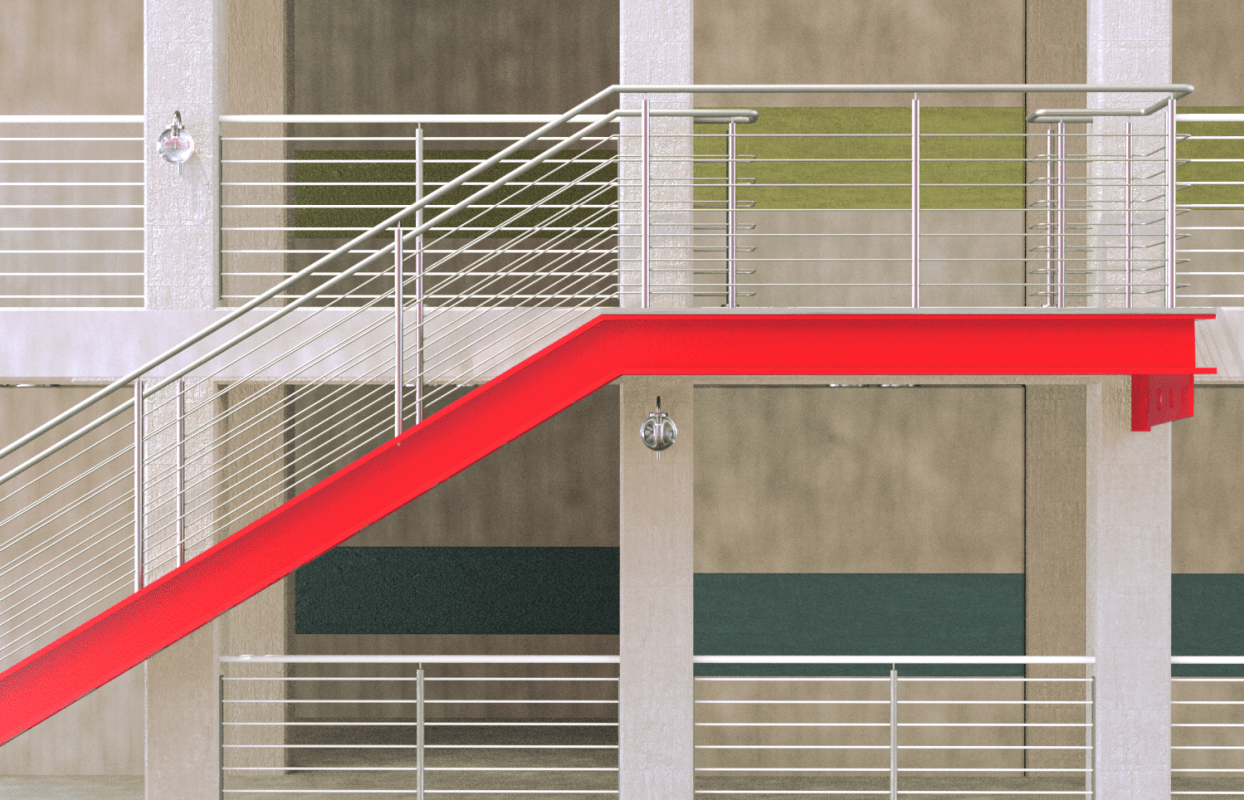

Die fischer Highbond-Ankerstange FHB II-A L ist aus galvanisch verzinktem Stahl hergestellt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpatronen FHB II-P und FHB II-PF HIGH SPEED verarbeitet werden. Beim Anziehen der Sechskantmutter werden die Konen der Ankerstange in die Mörtelschale gezogen, die sich gegen die Bohrlochwand verspannt. Mit dem fischer Highbond-System FHB II werden große Maschinen und schwere Stahlkonstruktionen im Innenbereich sicher befestigt.
Product properties
Surface protection
electrogalvanised
Material
Approval
Anchorage base
Weight
2913 g
Effective length
30 mm
Brand
fischerwerke_gmbh_co_kg
technical data

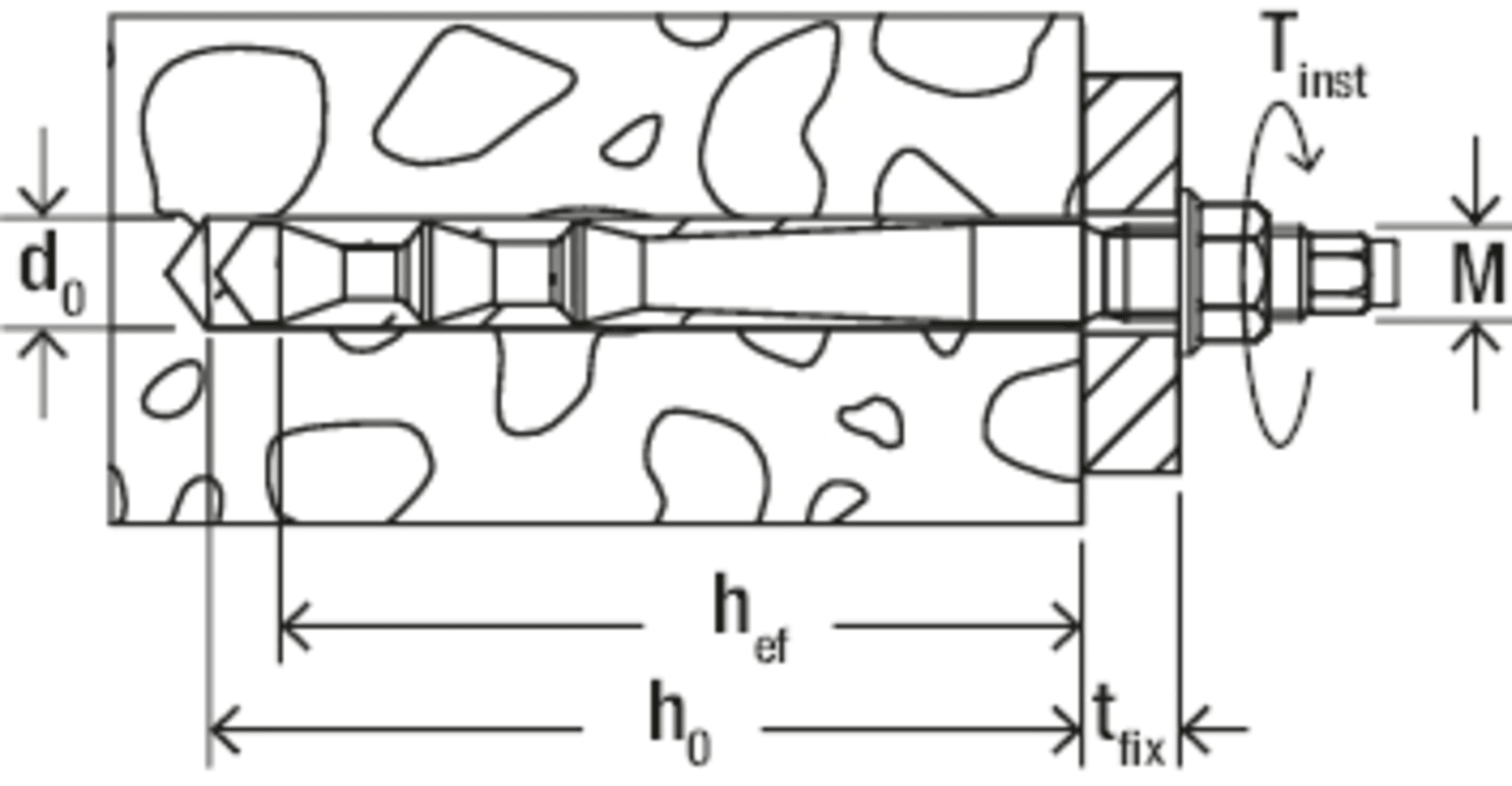

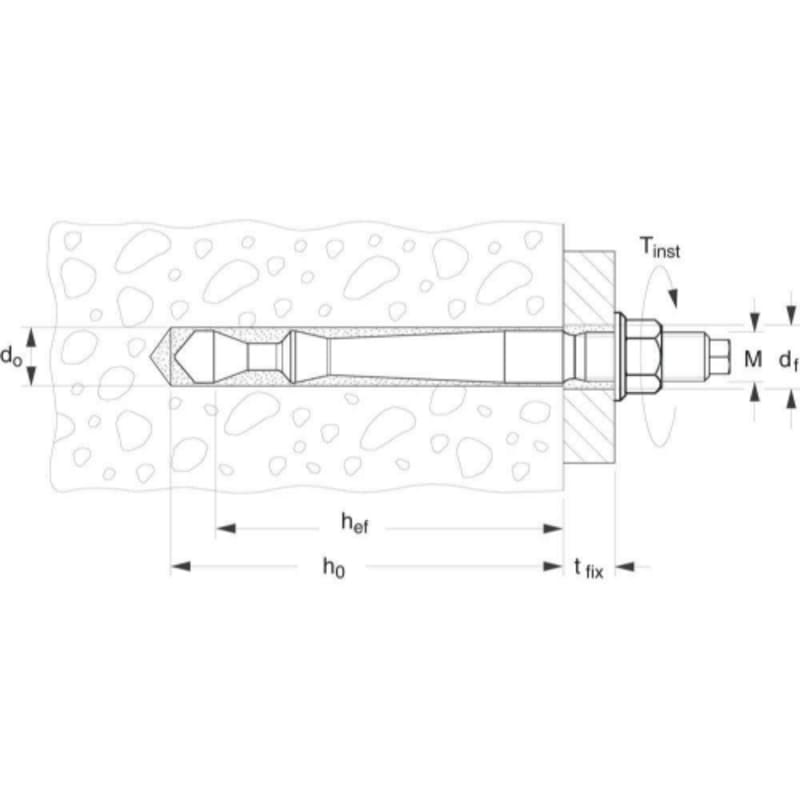

Drill hole diameter: 18 [mm] Hole depth: 140 [mm] Fire protection relevant: Yes Thread size (metric): 16 [mm] Application conditions: predominantly static loads Application conditions: fire protection classification Application conditions: indoor area Material: Steel electroplated galvanized 8.8 Packaging variant: Folding box Thread: M16 Length: 193 [mm] Max. thickness of the attachment part: 30 [mm] With mortar cartridge: No Wrench size: 24 [mm] Mortar scaling parts: 11 Anchoring depth: 125 [mm]
