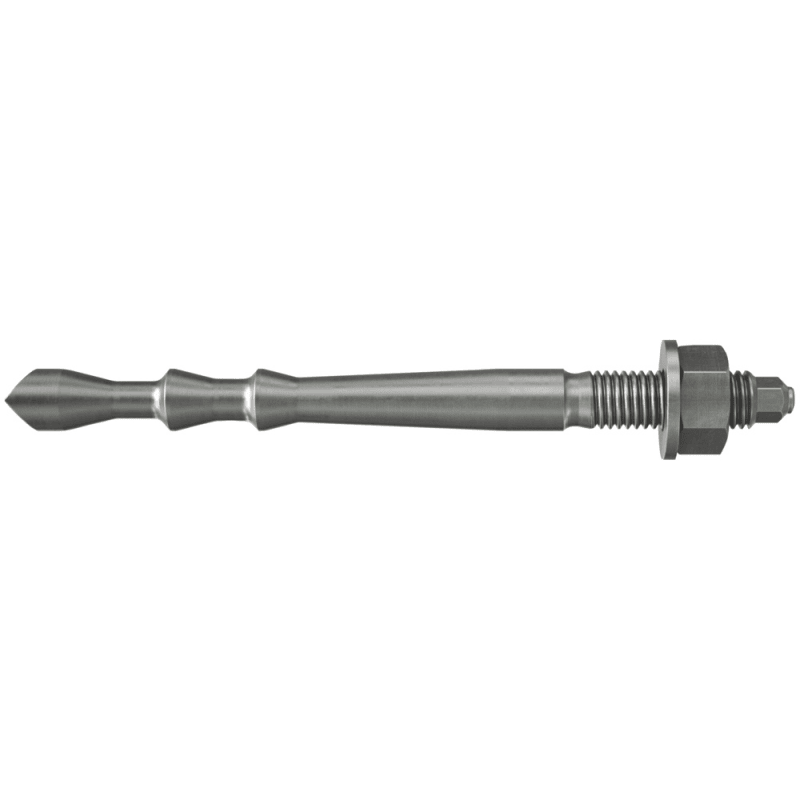

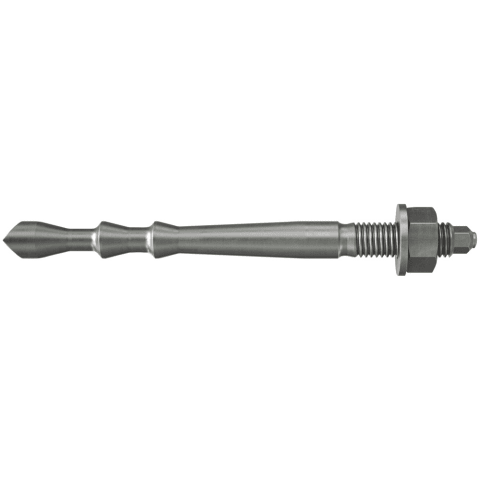

fischer Highbond anchor FHB II - A L M 16 x 125 / 30 stainless steel R, 506906

Die fischer Highbond-Ankerstange FHB II-A L ist aus nicht rostendem Stahl gefertigt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpatronen FH

more details
Meesenburg Article Number:
Manufacturer item no.: 506906
EAN: 4048962078183
Verkaufseinheit

Product advantages

Due to the large anchorage depth of the anchor rod FHB II-A L, the system achieves maximum load values. This means that fewer fixing points and smaller anchor plates are required.
The cone geometry of the anchor rods FHB II-A L is specially optimised for high tensile load values. This achieves the highest performance in cracked concrete.
The anchor rod FHB II-A L is approved for use with cartridges as well as injection mortar. This guarantees maximum flexibility in application.
Product properties
Product properties

Description

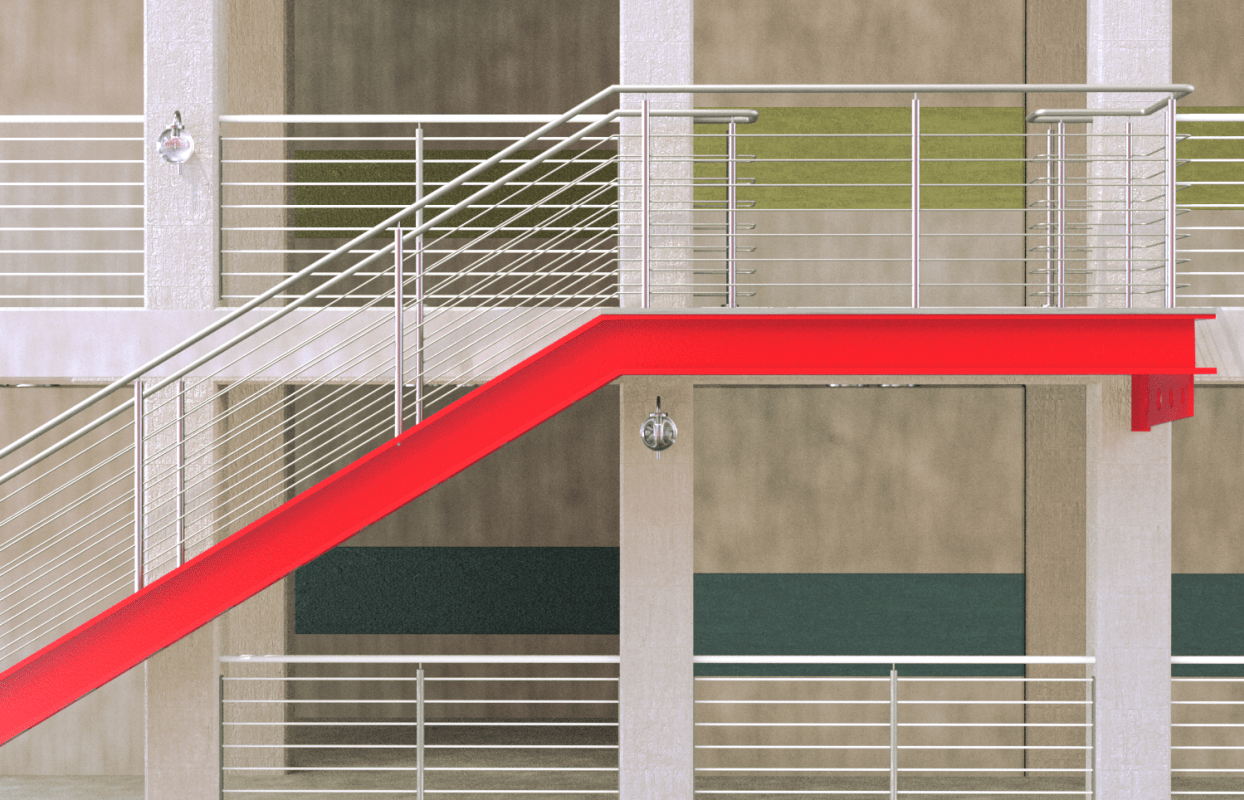

Die fischer Highbond-Ankerstange FHB II-A L ist aus nicht rostendem Stahl gefertigt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpatronen FHB II-P und FHB II-PF HIGH SPEED verarbeitet werden. Beim Anziehen der Sechskantmutter werden die Konen der Ankerstange in die Mörtelschale gezogen, die sich gegen die Bohrlochwand verspannt. Mit dem fischer Highbond-System FHB II werden zum Beispiel Fassaden, Siloanlagen und schwere Stahlkonstruktionen im Außenbereich sicher befestigt.
Product properties
surface
blank
Material
Approval
Anchorage base
Weight
2935 g
Effective length
30 mm
Brand
fischerwerke_gmbh_co_kg
technical data

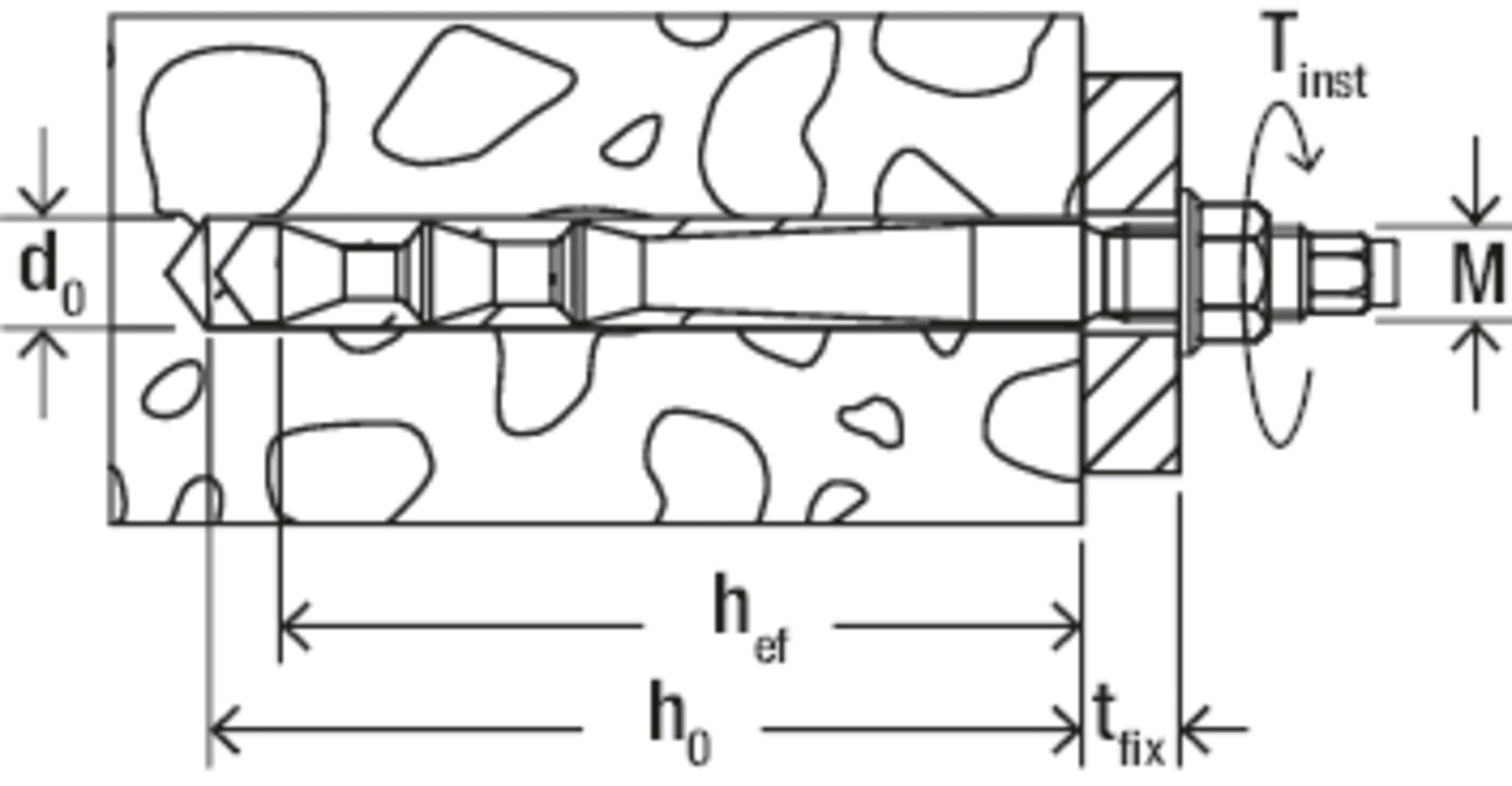

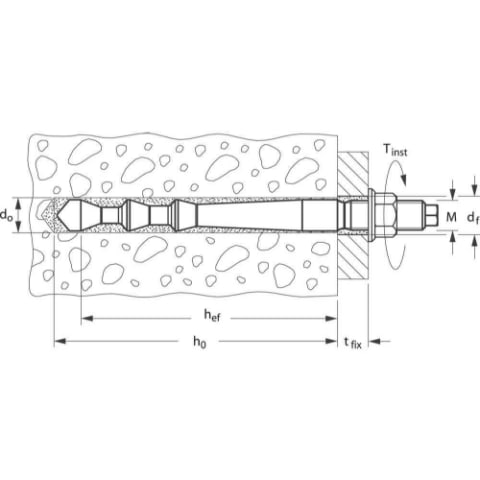

Drilling diameter: 18 [mm] Hole depth: 140 [mm] Fire protection relevant: Yes Thread size (metric): 16 [mm] Application conditions: Fire protection classification Application conditions: predominantly static loads Application conditions: Outdoor area Material: stainless steel Packaging variant: Folding box Thread: M16 Length: 193 [mm] Max. thickness of the attached part: 30 [mm] With mortar cartridge: No Width across flats: 24 [mm] Mortar scale divisions: 11 Anchorage depth: 125 [mm]
