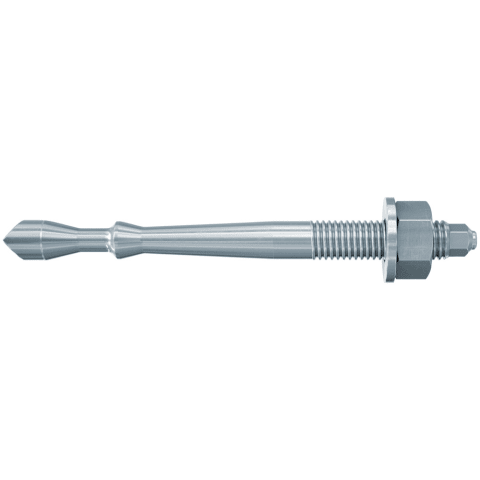

fischer HighBond anchor FHB II-A S M 12 x 75/10 galvanised, 097257

more details

Meesenburg Article Number:

Manufacturer item no.: 097257

EAN: 4006209972571

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

In the anchor rod FHB II-A S, the drill diameter is equal to the thread diameter. This allows for through-bolt installation without the need for tools and reduces mortar consumption.

The cone geometry of the anchor rods FHB II-A S is optimised for small axial and edge distances in cracked concrete as well as thin concrete components. This makes it suitable for a wide range of applications.

Product properties

Description

Die fischer Highbond-Ankerstange FHB II-A S ist aus galvanisch verzinktem Stahl hergestellt. Der kraftkontrolliert spreizende Verbundanker kann mit dem Highbond-Spezialmörtel FIS HB oder den Mörtelpatronen FHB II-P und FHB II-PF HIGH SPEED verarbeitet werden. Beim Anziehen der Sechskantmutter werden die Konen der Ankerstange in die Mörtelschale gezogen, die sich gegen die Bohrlochwand verspannt. Mit dem fischer Highbond-System FHB II werden Geländer, Maschinen und Stahlkonstruktionen im Innenbereich sicher befestigt.

Surface protection

electrogalvanised

Material

Approval

Anchorage base

Weight

922 g

Effective length

10 mm

Brand

fischerwerke_gmbh_co_kg

technical data

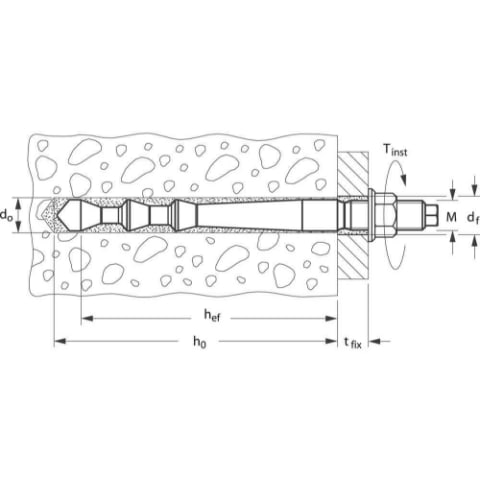

Drilling diameter: 12 [mm] Hole depth: 90 [mm] Fire protection relevant: Yes Thread size (metric): 12 [mm] Application conditions: predominantly static loads Application conditions: indoor area Application conditions: fire protection classification Material: Steel galvanized 8.8 Packaging variant: Folding box Thread: M12 Length: 117 [mm] Max. thickness of the attachment part: 10 [mm] With mortar cartridge: No Width across flats: 19 [mm] Scale divisions mortar: 4 Anchorage depth: 75 [mm]
