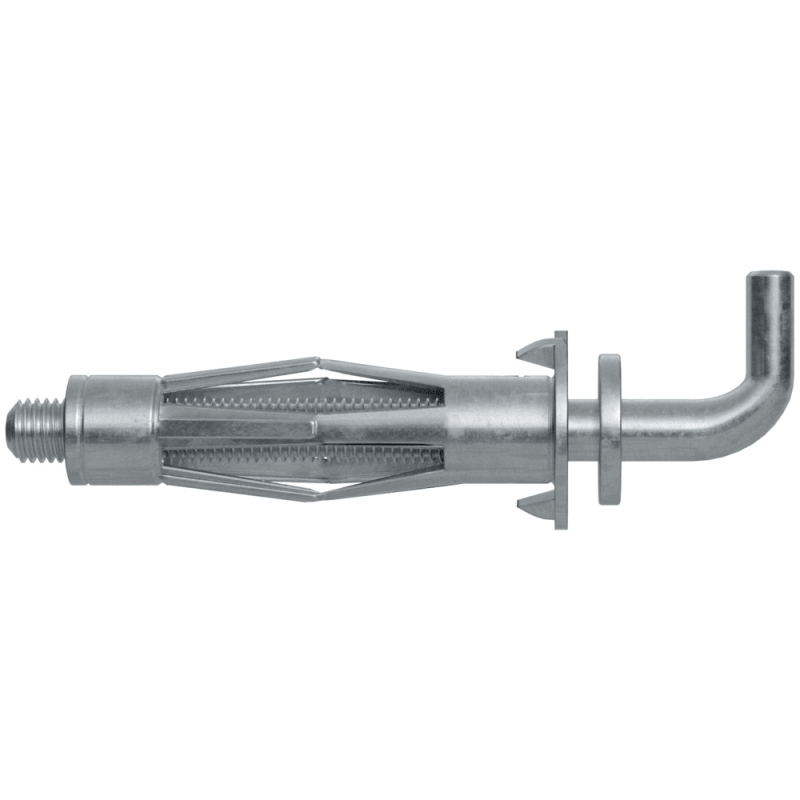

Fischer cavity metal anchor HM 4 x 32 H with angle hook, 519780

Der fischer Hohlraum-Metalldübel HM-H ist ein vielseitiger Hohlraumdübel mit Winkelhaken für alle Plattenbaustoffe. Der Dübel wird mit der Montagezange fischer HM-Z 1 in der Vorsteckmontage gesetzt. M

more details
Meesenburg Article Number:
Manufacturer item no.: 519780
EAN: 4048962164923
Verkaufseinheit

Product advantages

Due to the extensive range, the HM is suitable for sheet building materials with a thickness of 3-50 mm and thus for a variety of applications.
The metric internal thread allows for repeated loosening and fastening of the attachment part and provides optimal flexibility.
The spreading arms of the HM ensure a large contact surface and thus enable a high load-bearing capacity.
Product properties
Product properties

Description

Der fischer Hohlraum-Metalldübel HM-H ist ein vielseitiger Hohlraumdübel mit Winkelhaken für alle Plattenbaustoffe. Der Dübel wird mit der Montagezange fischer HM-Z 1 in der Vorsteckmontage gesetzt. Mit der Zange wird der Dübel im Hohlraum gegen den Plattenbaustoff gezogen. Die Spreizarme klappen dabei auf und pressen sich an die Plattenrückseite. Alternativ ist auch die Montagevon Hand möglich. Der fischer Hohlraum-Metalldübel HM-H ist geeignet für die Befestigung von Leuchten, Bildern und leichten Wandregalen im Innenraum.
Product properties
Surface protection
electrogalvanised
Material
Anchorage base
Weight
440 g
Min. drill hole depth
45 mm
Brand
fischerwerke_gmbh_co_kg
technical data

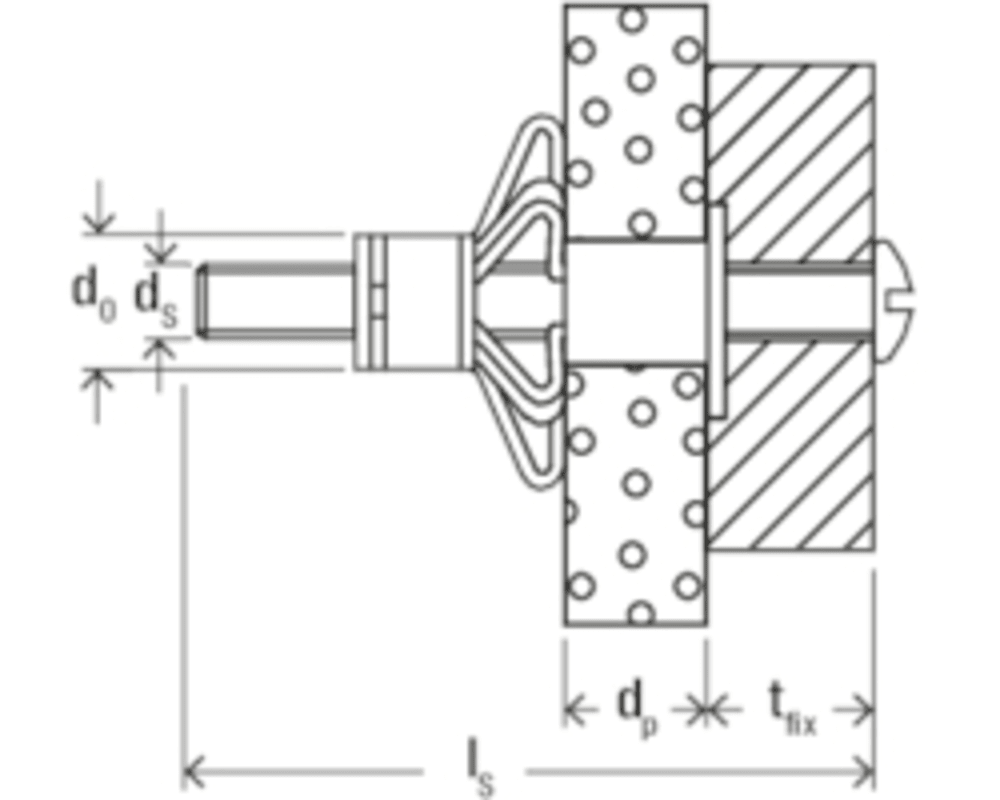

Drilling diameter: 8 [mm] Dowel length: 32 [mm] Design: with hook Dowel material: Metal Packaging variant: Folding box Max. plate thickness: 3 - 13 [mm] Min. drilling depth: 45 [mm] Plate thickness: 3 - 13 [mm] Plate thickness min / max: 3 / 13 [mm]
