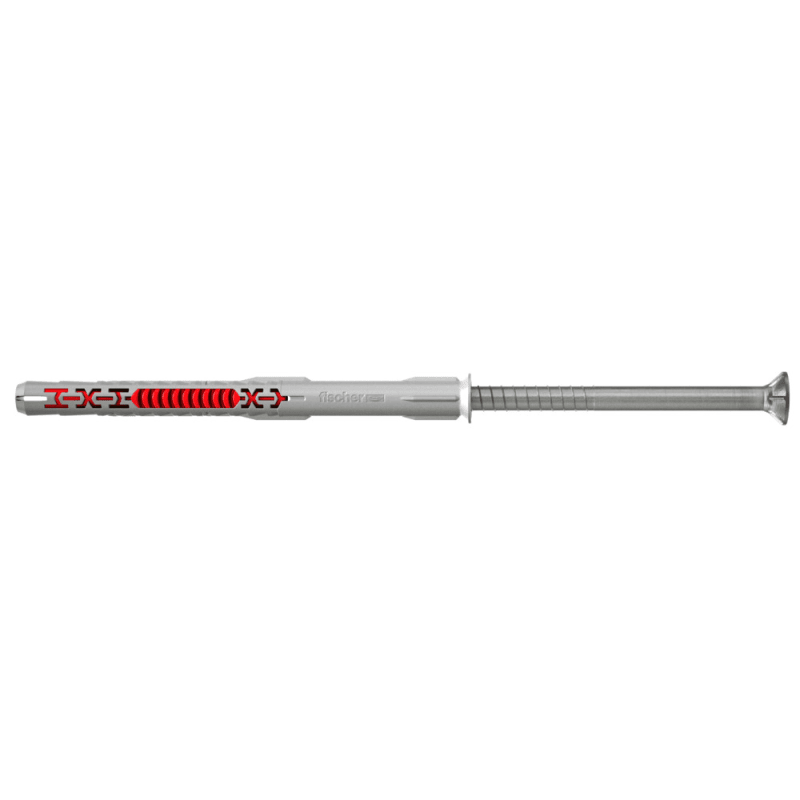

Fischer Long Shaft Anchor DuoXpand 10 x 120 T R Countersunk Screw, 562165

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Senkkopfschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbeton zugelasse

more details
Meesenburg Article Number: 0009206783
Manufacturer item no.: 562165
EAN: 4048962440263
Verkaufseinheit
x
Quantity:
=
measurement_units.standard.ST.name
Online availability
Location availability
Availability request and location information. Click & Collect is currently not available.
Prices only for Meesenburg customers

Product advantages

The coordinated combination of design and material seamlessly integrates into all building materials and allows for universal use.
The special lamella geometry spreads out in a material-friendly way in the respective building material. This avoids fractures in porous building materials and allows for anchorings close to the edge.
The grey base made of high-quality nylon provides strong support, while the red material component ensures flexibility and optimal spreading.
Product properties
Product properties

Description

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Senkkopfschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbeton zugelassen. Durch seine spezielle Lamellengeometrie und der Materialkombination verspreizt sich der Dübel optimal und materialschonend im jeweiligen Baustoff. Das Sortiment umfasst die Durchmesser 8 und 10 und Dübellängen bis 230 mm. Der DuoXpand mit der Senkkopfschraube ist besonders für die Befestigung von Holzkonstruktionen geeignet.
Product properties
technical data

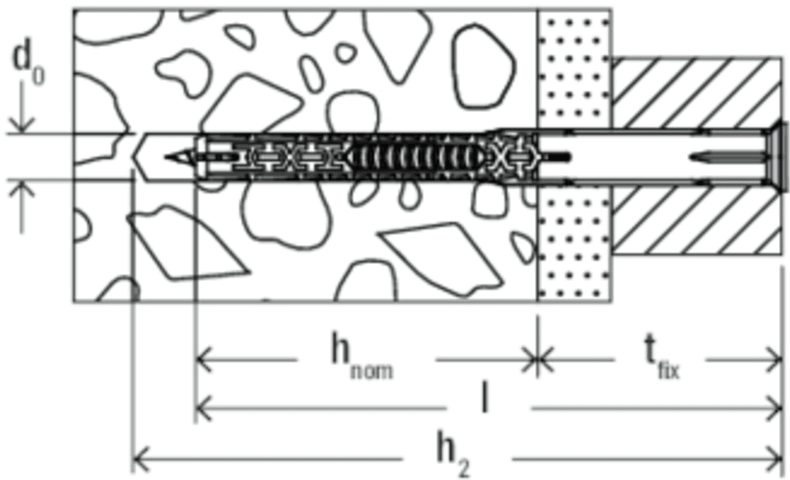

Drive: TX40 Drill diameter: 10 [mm] Dowel length: 120 [mm] Suitable for aerated concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-mounting: Yes Suitable for plasterboard: No Suitable for perforated bricks: Yes Suitable for calcium silicate bricks: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid bricks: Yes Pre-positioning: No Colour: grey Drive: Internal star TX Design: with rim and screw Material: stainless steel Min. drilling depth for through-mounting: 130 [mm] Usable length at anchoring depth 50 mm: 70 [mm] Usable length at anchoring depth 70 mm: 50 [mm]
Length
120 mm
Diameter
10 mm
