Fischer long-shaft anchor DuoXpand 10 x 200 T countersunk screw, 562161

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Senkkopfschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbeton zugelasse

more details
Meesenburg Article Number: 0009206779
Manufacturer item no.: 562161
EAN: 4048962440225
Verkaufseinheit
x
Quantity:
=
measurement_units.standard.ST.name
Online availability
Location availability
Availability request and location information. Click & Collect is currently not available.
Prices only for Meesenburg customers

Product advantages

The coordinated combination of design and material perfectly integrates into all building materials and allows for universal use.
The special lamella geometry spreads gently in the respective building material. This prevents fractures in porous building materials and enables anchorings close to the edge.
The grey base made of high-quality nylon provides strong support, while the red material component ensures flexibility and optimal spreading.
Product properties
Product properties

Description

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Senkkopfschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbeton zugelassen. Durch seine spezielle Lamellengeometrie und der Materialkombination verspreizt sich der Dübel optimal und materialschonend im jeweiligen Baustoff. Das Sortiment umfasst die Durchmesser 8 und 10 und Dübellängen bis 230 mm. Der DuoXpand mit der Senkkopfschraube ist besonders für die Befestigung von Holzkonstruktionen geeignet.
Product properties
technical data

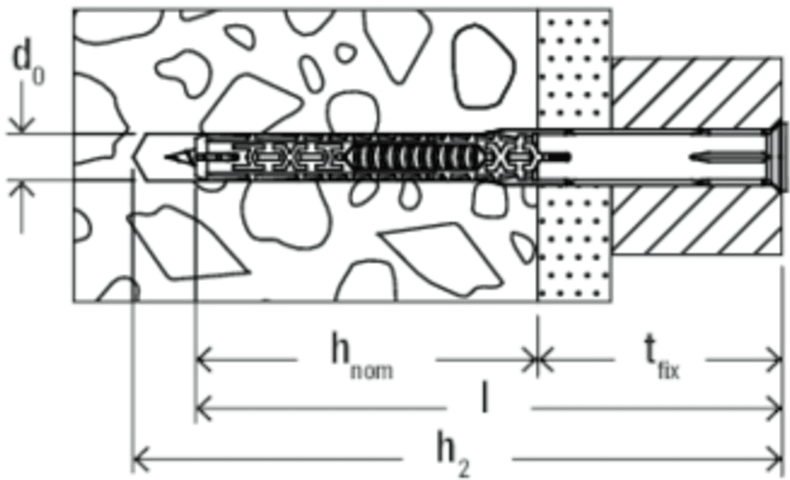

Drive: TX40 Drill bit diameter: 10 [mm] Dowel length: 210 [mm] Suitable for aerated concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-hole installation: Yes Suitable for plasterboard: No Suitable for perforated brick: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning installation: No Colour: grey Drive: Internal star TX Design: with edge and screw Material: galvanised steel Min. drilling depth for through-hole installation: 210 [mm] Usable length at anchoring depth 140 mm: 60 [mm] Usable length at anchoring depth 160 mm: 40 [mm] Usable length at anchoring depth 50 mm: 150 [mm] Usable length at anchoring depth 70 mm: 130 [mm]
Length
200 mm
Diameter
10 mm
