Fischer long-shaft plug DuoXpand 10 x 80 FUS hexagon screw with U-washer, 562167

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Sechskant-Sicherheitsschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbe

more details
Meesenburg Article Number: 0009206788
Manufacturer item no.: 562167
EAN: 4048962440287
Verkaufseinheit
x
Quantity:
=
measurement_units.standard.ST.name
Online availability
Location availability
Availability request and location information. Click & Collect is currently not available.
Prices only for Meesenburg customers

Product advantages

The coordinated combination of design and material perfectly integrates into all building materials and enables universal use.
The special lamella geometry spreads out gently in the respective building material. This prevents fractures in porous building materials and allows for anchoring close to the edge.
The grey base made of high-quality nylon provides strong support, while the red material component ensures flexibility and optimal spreading.
Product properties
Product properties

Description

Der fischer Langschaftdübel DuoXpand mit zwei Verankerungstiefen ist mit der fischer Sechskant-Sicherheitsschraube für Mehrfachbefestigungen von nichttragenden Systemen in Beton, Mauerwerk und Porenbeton zugelassen. Durch seine spezielle Lamellengeometrie und der Materialkombination verspreizt sich der Dübel optimal und materialschonend im jeweiligen Baustoff. Das Sortiment umfasst die Durchmesser von 8 und 10 und Dübellängen bis 230 mm. Der DuoXpand mit der Sechskantschraube und angeformter Unterlegscheibe ist besonders für die Befestigung von Metallkonstruktionen geeignet.
Product properties
technical data

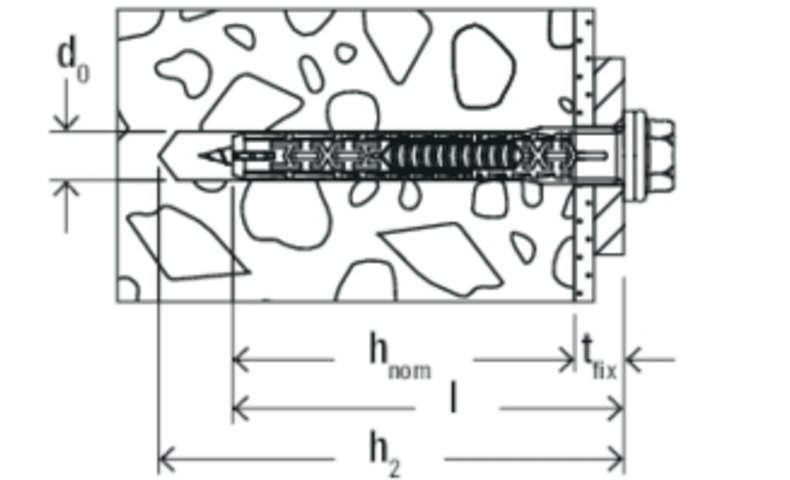

Drive: TX40 / SW 13 Drill hole diameter: 10 [mm] Dowel length: 80 [mm] Suitable for gas concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-mounting: Yes Suitable for plasterboard: No Suitable for perforated brick: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning installation: No Colour: grey Drive: Inner star TX / Hexagon Design: with collar and screw Material: galvanized steel Min. drilling depth for through-mounting: 90 [mm] Effective length at anchorage depth 50 mm: 30 [mm] Effective length at anchorage depth 70 mm: 10 [mm]
Length
80 mm
Diameter
10 mm
