fischer Long-shaft anchor SXR 10 x 120 T countersunk screw stainless steel A4, 046278

more details

Meesenburg Article Number:

Manufacturer item no.: 046278

EAN: 4006209462782

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

The special functionality allows for use in solid and hollow building materials with an anchoring depth of only 50 mm, thus ensuring an economical fastening.

The ETA assessment covers the use in many solid and hollow building materials and thus guarantees a secure fastening.

The specially developed combination of dowel and security screw ensures optimal handling. The dowel tightens noticeably, providing more installation comfort.

Product properties

Description

Der fischer Langschaftdübel SXR-T A4 ist ein Dübel aus hochwertigem Nylon mit vormontierter fischer Sicherheitsschraube mit Senkkopf. Dank der besonderen Dübelgeometrie kann der SXR in Vollbaustoffen und Lochbaustoffen eingesetzt werden. Aufgrund der geringen Verankerungstiefe von nur 50 mm lässt sich der Langschaftdübel vor allem bei Mehrfachbefestigungen von nicht tragenden Systemen besonders wirtschaftlich verarbeiten. Der fischer Langschaftdübel SXR-T A4 ist mit der Senkkopfschraube besonders für die Befestigung von Holzkonstruktionen zu empfehlen.

Drive

torx

Drive size

Anchorage base

Length

120 mm

Weight

1880 g

Diameter

10 mm

Brand

fischerwerke_gmbh_co_kg

technical data

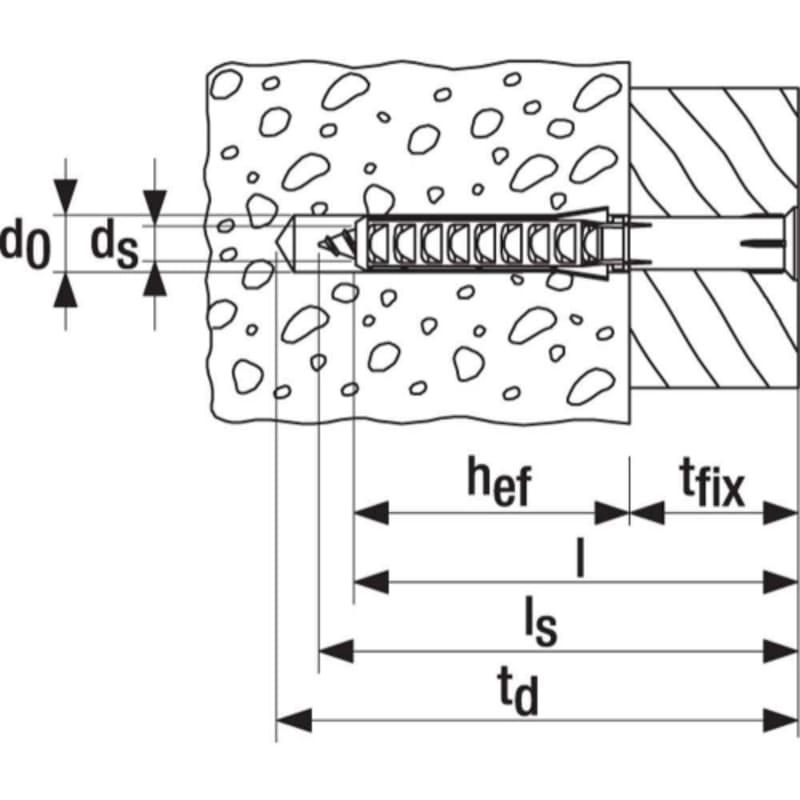

Drive: TX40 Drill diameter: 10 [mm] Dowel length: 120 [mm] Suitable for gas concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-hole mounting: Yes Suitable for plasterboard: No Suitable for perforated bricks: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning mounting: No Colour: grey Drive: Internal star TX Design: with screw Material: non-rusting steel Usable length: 70 [mm] Surface (screw): Stainless steel A4 Screw geometry: Countersunk head Packaging variant: Folding box Approval / Rating: Masonry Approval / Rating: Aerated concrete E Approval / Rating: Concrete Max. thickness of the component: 70 [mm] Min. drilling depth: 130 [mm] Min. drilling depth for through-hole mounting: 130 [mm] Min. anchoring depth: 50 [mm] Screw dimension: 7.0 x 127 [mm]
