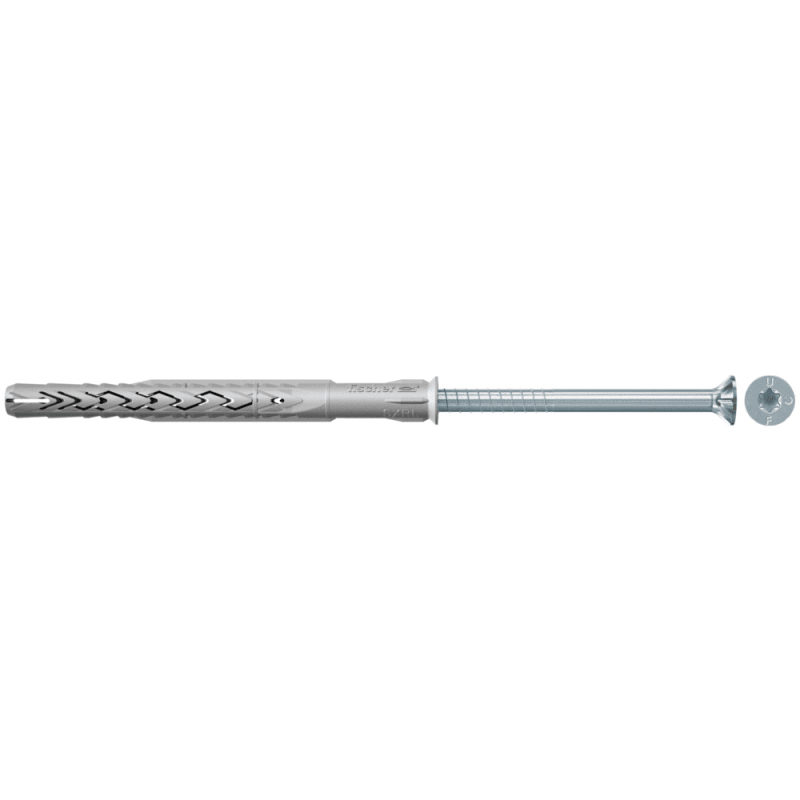

fischer Long-shaft anchor SXRL 14 x 180 T countersunk screw, 530925

more details

Meesenburg Article Number:

Manufacturer item no.: 530925

EAN: 4048962206463

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

The long expansion element with multiple anchorage depths of 70 and 90 mm makes the SXRL a versatile product.

Due to the special geometry of the dowel, the holding forces are evenly distributed in the borehole.

When anchoring in perforated and solid building materials, the two expansion zones lead to optimal holding values.

Product properties

Description

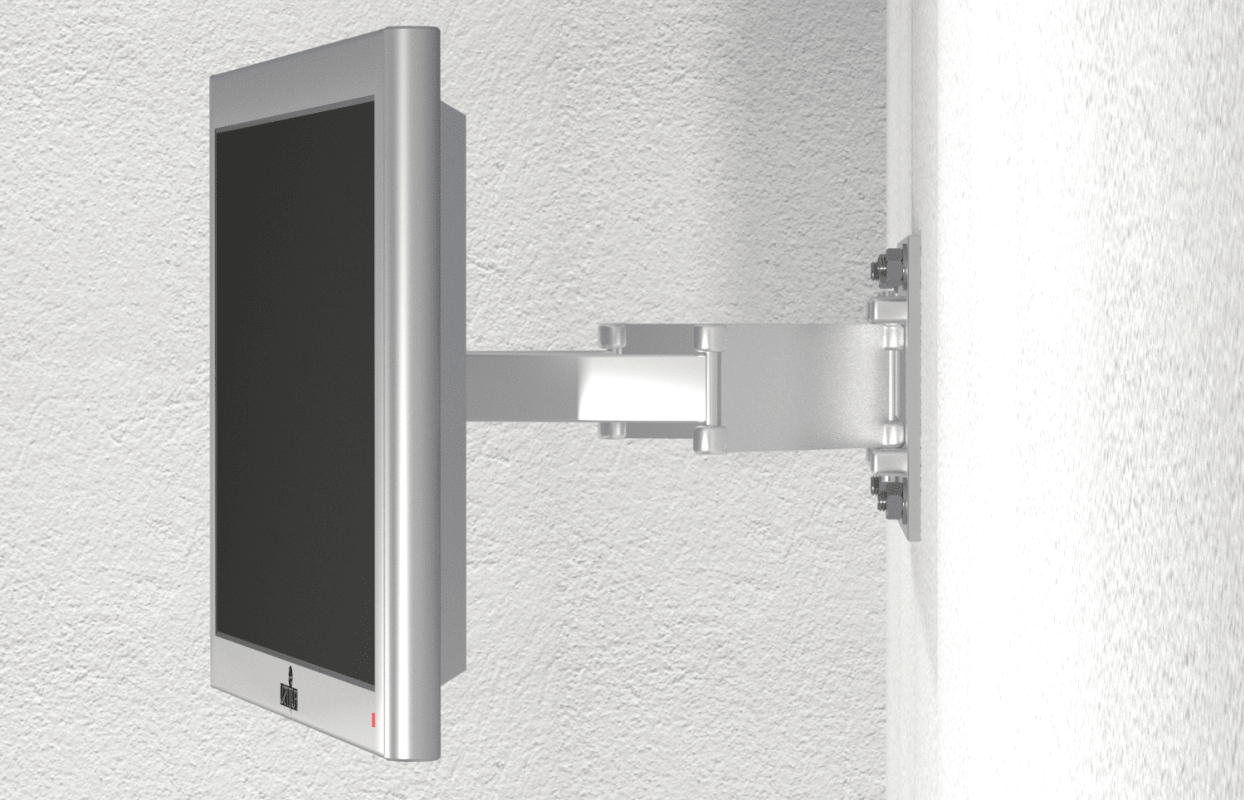

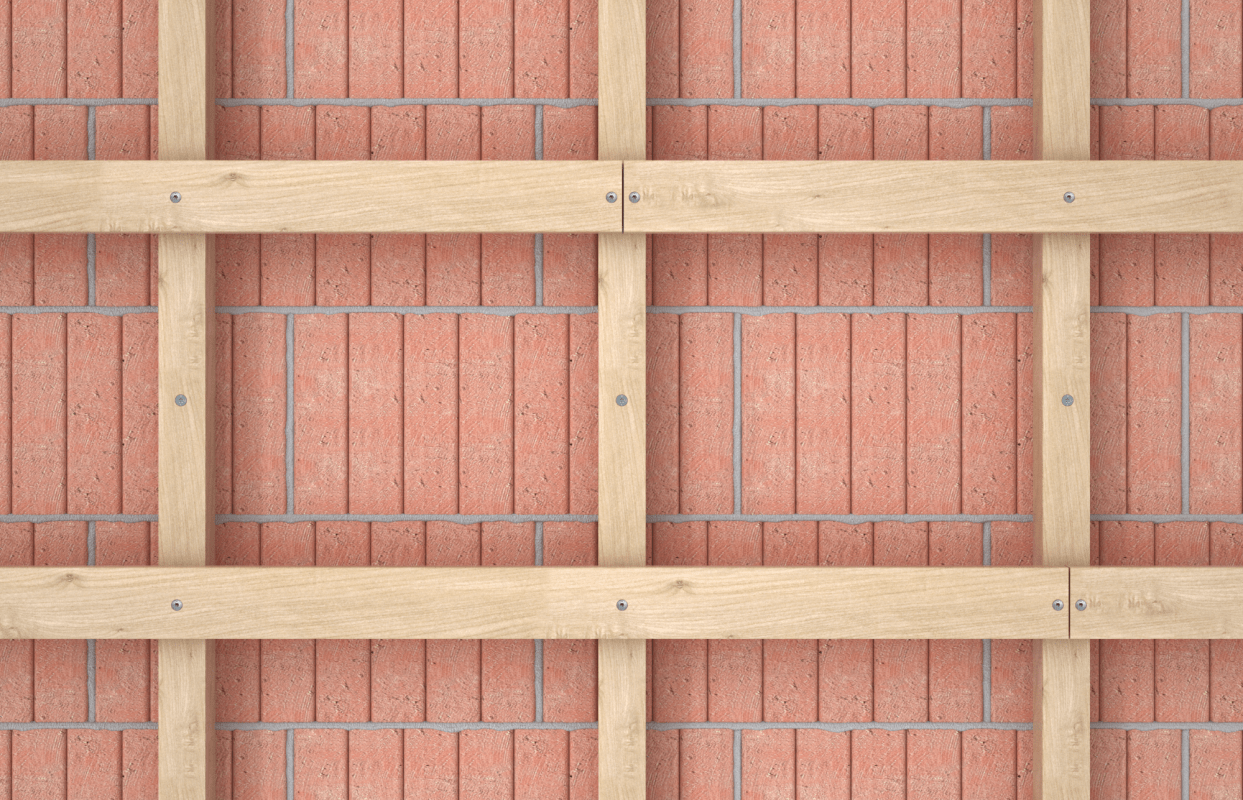

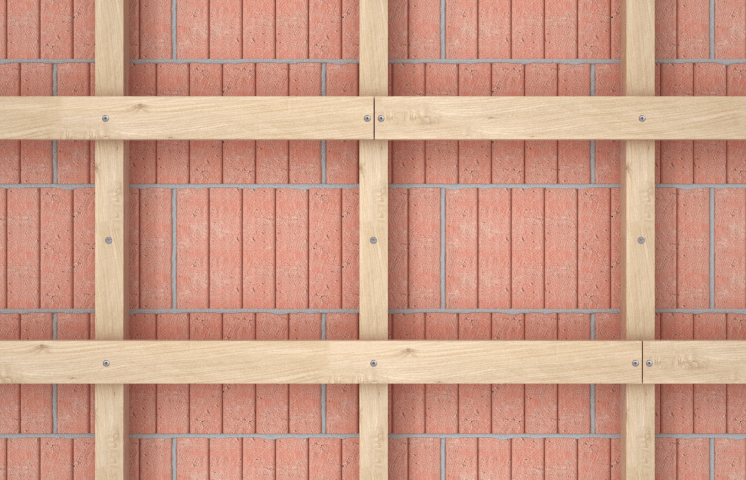

Der fischer Langschaftdübel SXRL-T ist mit der fischer Senkkopfschraube mit TX50-Antrieb für Mehrfachbefestigungen von nicht tragenden Systemen in Mauerwerk, Beton und Porenbeton zugelassen. In Lochsteinmauerwerk leiten die zwei Spreizzonen des Dübels gleichmäßig Kraft ein, in Porenbeton und Vollbaustoff vereinen sich diese zu einem langen Spreizelement. Mit der Sicherheitsschraube aus galvanisch verzinktem Stahl ist der Langschaftdübel für Befestigungen von Fassaden-, Decken- und Dachunterkonstruktionen aus Holz geeignet.

Drive

torx

Drive size

Surface protection

electrogalvanised

Anchorage base

Length

180 mm

Weight

6237 g

Diameter

14 mm

Brand

fischerwerke_gmbh_co_kg

technical data

Drive: TX50 Drilling diameter: 14 [mm] Dowel length: 180 [mm] Suitable for gas concrete: Yes Distance mounting: No Suitable for concrete: Yes Through-hole mounting: Yes Suitable for plasterboard: No Suitable for perforated brick: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning: No Colour: grey Drive: Internal star TX Design: with screw Material: galvanised steel Effective length: 90 [mm] Effective length: 110 [mm] Surface (screw): galvanised steel Screw geometry: Countersunk head Packaging variant: Folding box Approval / rating: Aerated concrete E Approval / rating: Masonry Approval / rating: Concrete Min. drilling depth for through-hole mounting: 195 [mm] Effective length at anchoring depth 70 mm: 110 [mm] Effective length at anchoring depth 90 mm: 90 [mm]
