fischer Brass Anchor MS 12 x 37, 078662

Der fischer Messingdübel MS ist ein Spreizdübel aus Messing für die Aufnahme eines metrischen Gewindes. Der Spezialdübel wird in der Vorsteckmontage gesetzt. Beim Eindrehen der Schraube oder der Gewin

more details
Meesenburg Article Number:
Manufacturer item no.: 078662
EAN: 4006209786628
Verkaufseinheit

Product advantages

The compact design of the brass anchor reduces the drilling effort and thus ensures quick assembly.
The special surface structure of the MS prevents it from rotating in the borehole. This increases the assembly security.
The internal thread allows the use of commercially available metric screws or threaded rods and enables flush disassembly and reusability of the fixing point. This achieves a high level of flexibility.
Product properties
Product properties

Description

Der fischer Messingdübel MS ist ein Spreizdübel aus Messing für die Aufnahme eines metrischen Gewindes. Der Spezialdübel wird in der Vorsteckmontage gesetzt. Beim Eindrehen der Schraube oder der Gewindestange spreizt der Messingdübel auf und verankert sich gegen die Bohrlochwand. Der fischer Messingdübel MS ist vor allem geeignet für die Befestigung von Regalen, Durchlauferhitzern und Aggregaten in Vollbaustoffen.
Product properties
Anchorage base
Weight
252 g
Min. drill hole depth
46 mm
Brand
fischerwerke_gmbh_co_kg
technical data

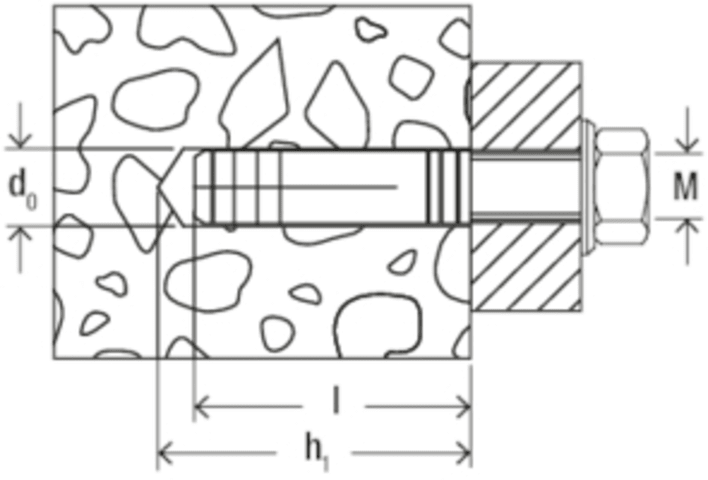

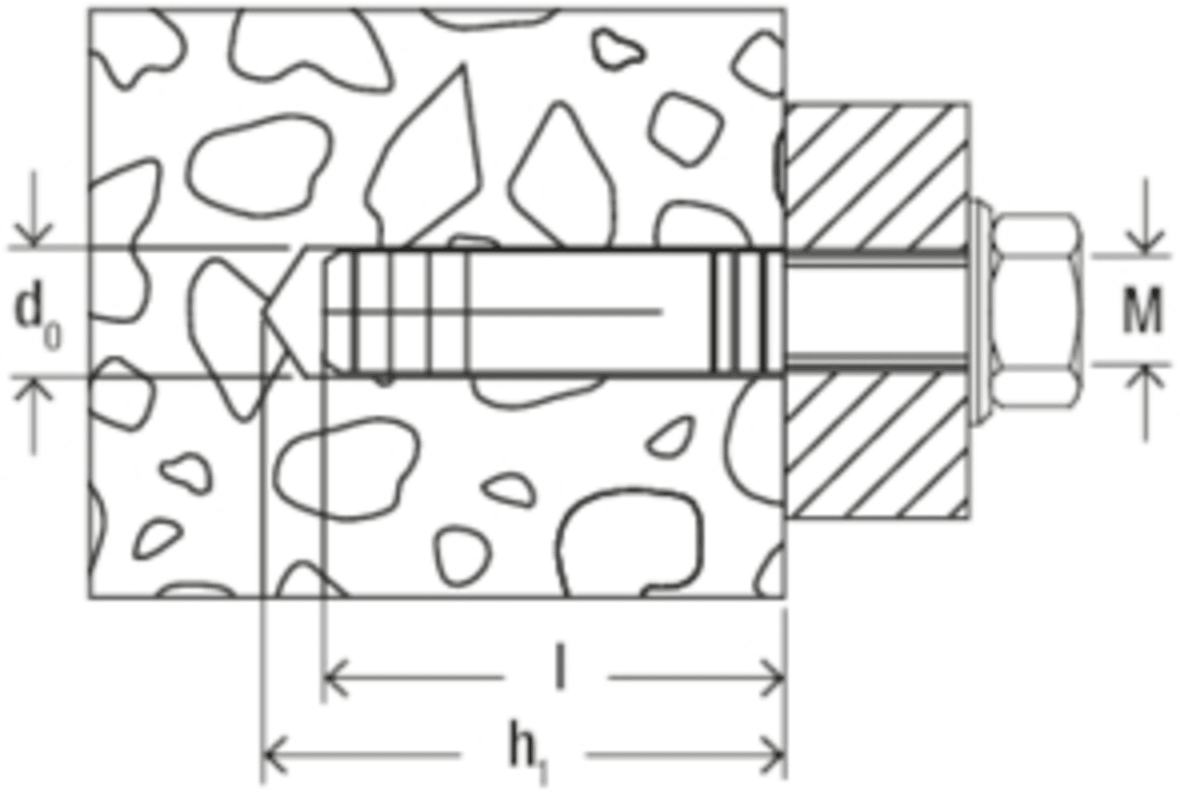

Drill hole diameter: 15 [mm] Dowel length: 37 [mm] Design: without screw Packaging variant: folding box Thread: M12 Min. drilling depth: 46 [mm] Min. screw-in depth: 37 [mm]
