fischer Metal frame anchor F 8 M 132, 088666

Der fischer Metallrahmendübel F 8 M ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einer Metallhülse und einer Linsenflachkopfschraube aus galv

more details
Meesenburg Article Number:
Manufacturer item no.: 088666
EAN: 4006209886663
Verkaufseinheit

Product advantages

The metal frame anchor F-M achieves the fire resistance duration R 120. This allows its use in fire protection relevant areas.
The functional principle prevents the window frame from being pulled against the surface and ensures a tension-free and durable attachment of the frame.
The special dowel geometry anchors metal and plastic profiles tensile and pressure-resistant and allows for a secure hold of the window frame.
Product properties
Product properties

Description

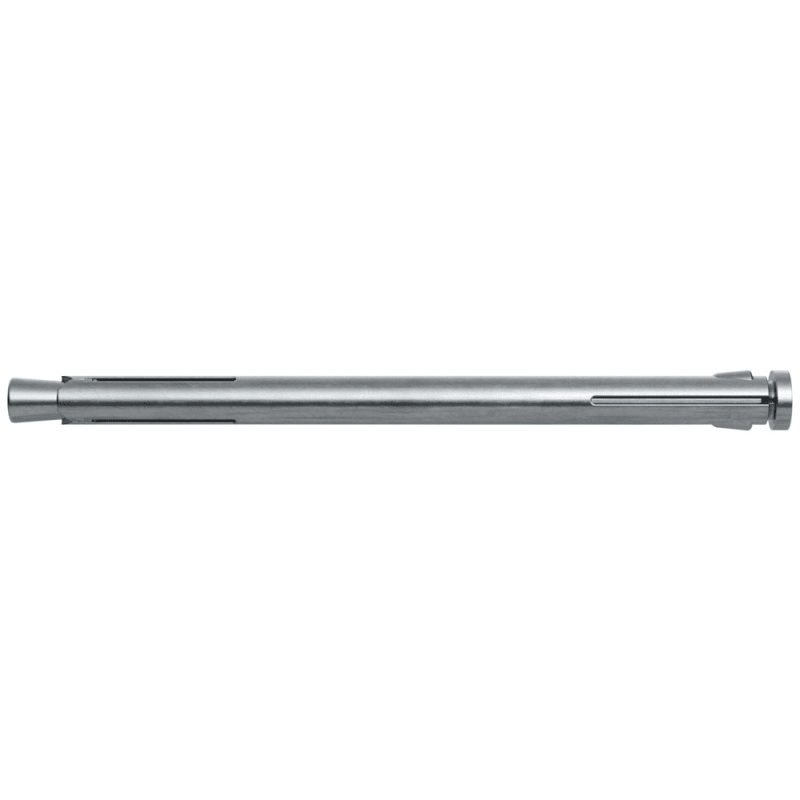

Der fischer Metallrahmendübel F 8 M ist ein Spezialdübel zur spannungsfreien Abstandsmontage von Fenster- und Türrahmen. Dieser besteht aus einer Metallhülse und einer Linsenflachkopfschraube aus galvanisch verzinktem Stahl. Der F 8 M wird zeitsparend in der Durchsteckmontage gesetzt. Beim Anziehen der Schraube wird der Konus in die Dübelhülse gezogen, spreizt auf und verspannt sich gegen die Bohrlochwand. Dadurch wird der Fensterrahmen spannungsfrei in Voll- und Lochbaustoffen befestigt. Der fischer Metallrahmendübel F 8 M ist neben der Befestigung von Fenster- und Türrahmen auch für Kanthölzer geeignet.
Product properties
Drive
cross slot PZ
Drive size
2
Surface protection
electrogalvanised
Anchorage base
Weight
3516 g
Brand
fischerwerke_gmbh_co_kg
technical data

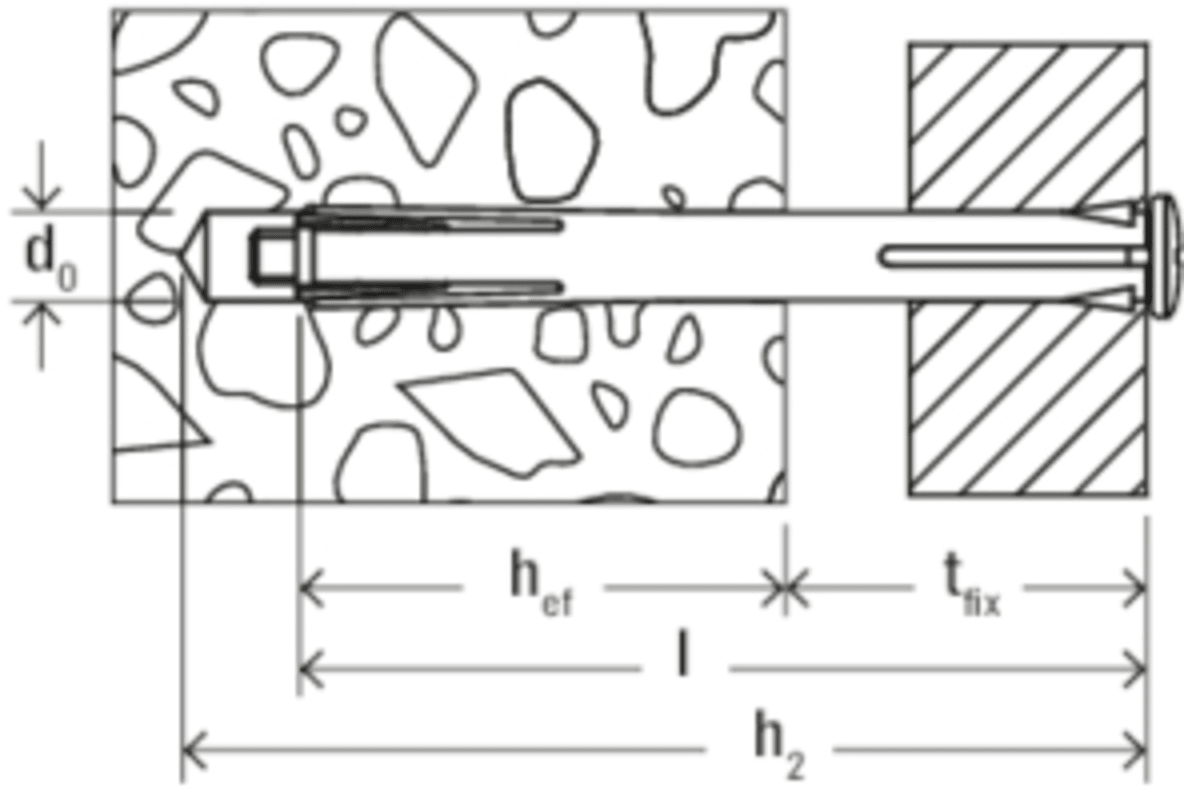

Drive: PZ2 Drill diameter: 8 [mm] Fire protection relevant: Yes Dowel length: 132 [mm] Effective anchoring depth: 30 [mm] Suitable for gas concrete: Yes Distance installation: Yes Suitable for concrete: Yes Through-hole installation: Yes Suitable for plasterboard: No Suitable for perforated brick: Yes Suitable for calcium silicate brick: Yes Suitable for natural stone: Yes Suitable for aerated concrete: Yes Suitable for chipboard: No Suitable for solid brick: Yes Pre-positioning installation: No Drive: Cross-head PZ Design: with screw Head variant: Countersunk head Fire resistance class: R120 Max. thickness of the attachment part: 102 [mm] Min. drilling depth for through-hole installation: 150 [mm] Min. anchoring depth: 30 [mm] Screw dimension: M5 x 145 [mm]
