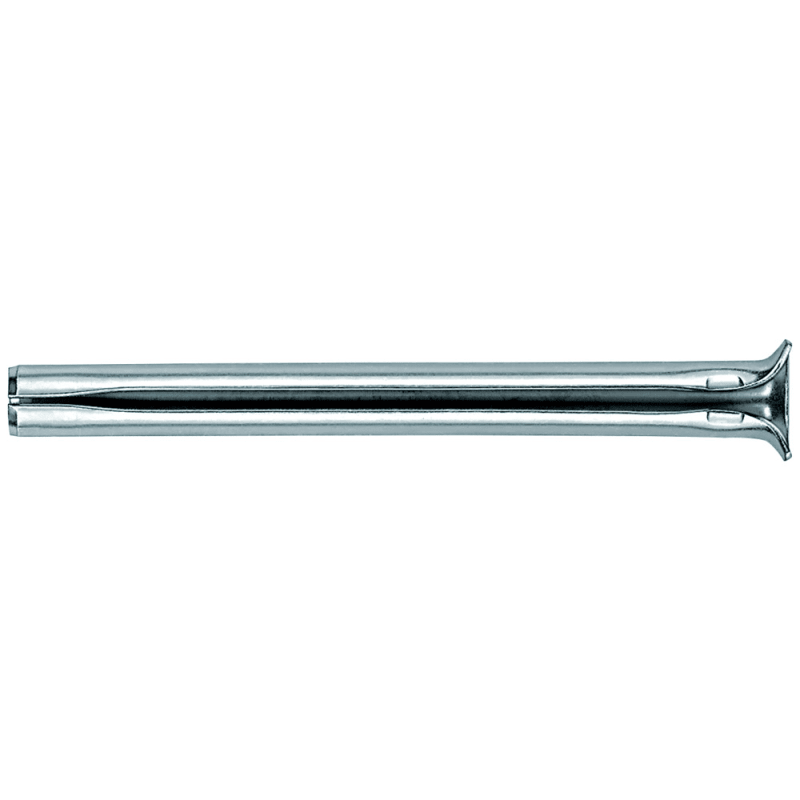

fischer Nail Sleeve FNH 8/150, 541908

more details

Meesenburg Article Number:

Manufacturer item no.: 541908

EAN: 4048962293340

Verkaufseinheit

New price:

The quantity you have chosen is in between 2 base units ()

Minimum quantity requirements for product are not fulfilled

Maximum quantity requirements for product are not fulfilled

Would you like to add:

Product advantages

For the one-piece nail sleeve, neither dowels nor screws are required. This allows for uncomplicated and easy installation.

The geometry of the nail sleeve allows for easy insertion into the drill hole. This saves time and money.

Product properties

Description

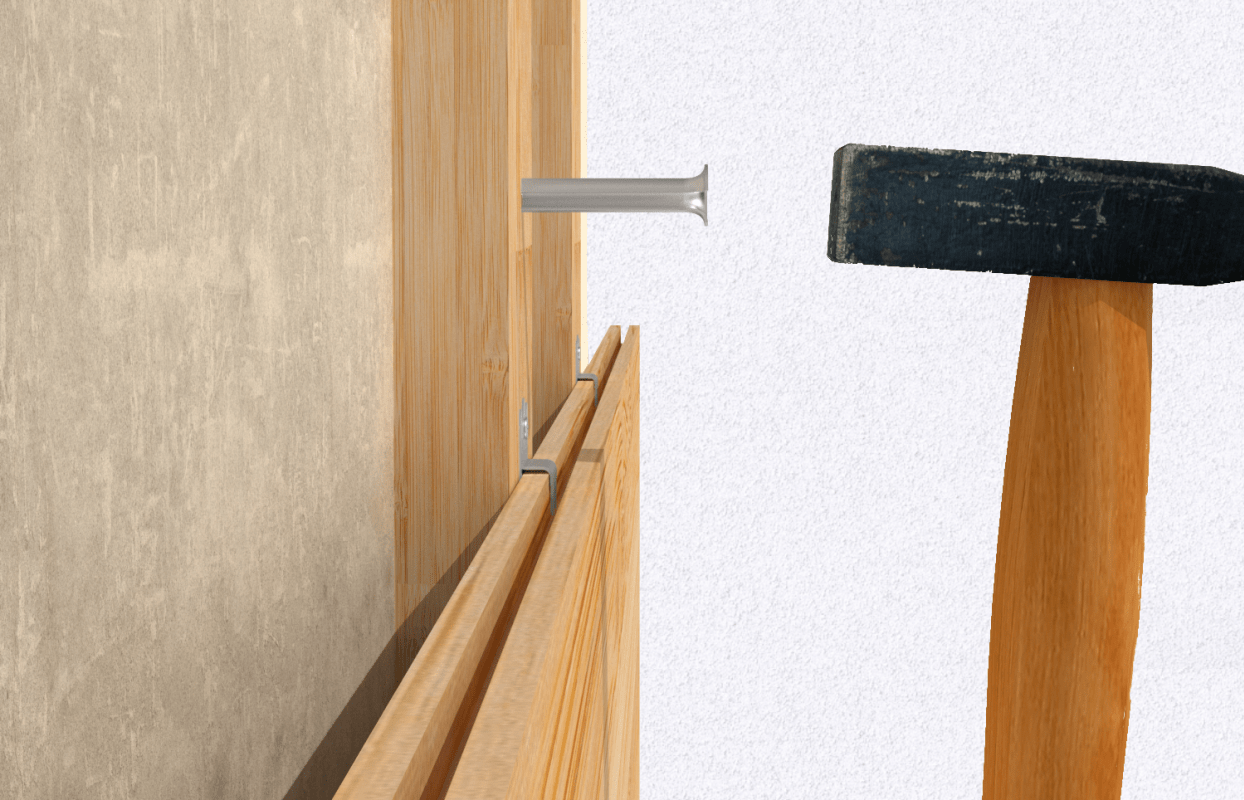

Die fischer Nagelhülse FNH ist eine montagefreundliche Federspannhülse aus korrosionsbeschichtetem Stahl. Die Nagelhülse wird zeitsparend in der Durchsteckmontage mit dem Hammer eingeschlagen und verspannt sich in der gesamten Länge im Bohrloch. Damit lassen sich kostengünstig im Innen- und temporär im Außenbereich Unterkonstruktionen aus Holz und Metall, Metallprofile und Kanthölzer in Vollbaustoffen befestigen.

Surface protection

electrogalvanised

Material

Anchorage base

Brand

fischerwerke_gmbh_co_kg

technical data

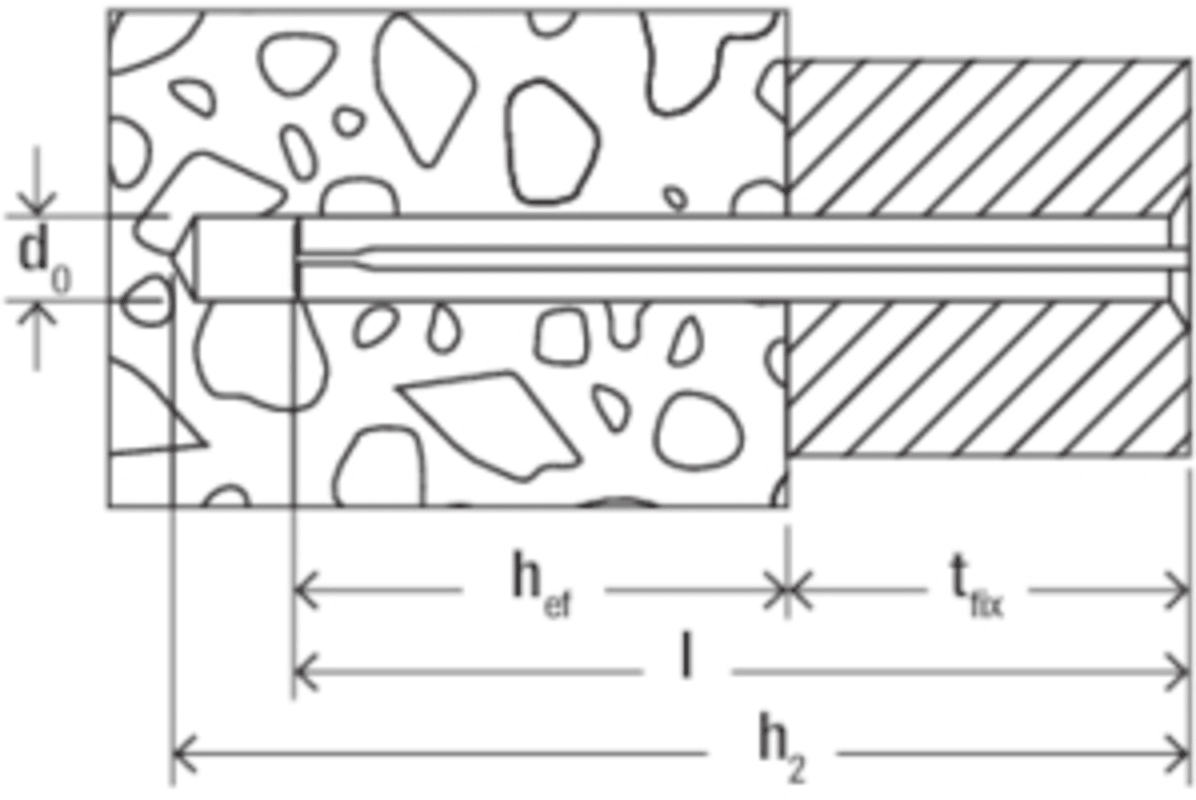

Drilling diameter: 8 [mm] Dowel length: 150 [mm] Effective anchoring depth: 40 [mm] Suitable for aerated concrete: No Spacing installation: No Suitable for concrete: Yes Through-hole installation: Yes Suitable for plasterboard: No Suitable for perforated clay bricks: No Suitable for calcium silicate bricks: Yes Suitable for natural stone: Yes Suitable for aerated concrete: No Suitable for chipboard: No Suitable for solid bricks: Yes Pre-positioning installation: No Design: without screw Packaging variant: folding box Max. thickness of the component: 110 [mm] Min. drilling depth for through-hole installation: 160 [mm]
